Uniview

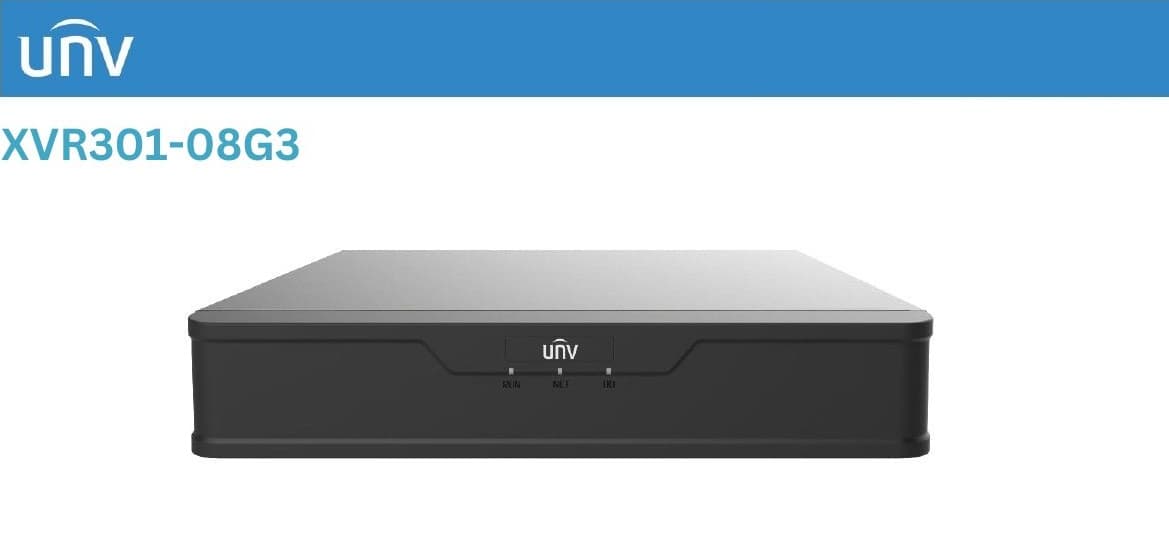

UNV XVR301-08G3 1 SATA/UPTO 5MP SUPPORTED 8-CHANNEL DIGITAL VIDEO RECORDER
Tk
5100
Analog Video Input 8-ch, BNC
IP Video Input 4-ch(only IP up to 8ch), each channel up to 4MP
Incoming Bandwidth 32Mbps (Up to 40Mbps after all analog channel conversion)
Outgoing Bandwidth 64Mbps
1 YEAR WARRANTY
DVR
Quantity:
Key Features
• Support H.265/H.264 video formats
• Support audio over coaxial cable(only for TVI cameras)
• Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
• 4/8-channel BNC input
• Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
• Long transmission distance over coaxial cable
• Support mainstream cameras of ONVIF and RTSP protocols
.jpg)
Model: XVR301-08G3
Video/Audio Input
Analog Video Input: 8-ch, BNC
IP Video Input: 4-ch(only IP up to 8ch), each channel up to 4MP
Supported Analog Camera Types:
Support AHD input:
5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support TVI input:
5MP@12fps
4MP@15fps
1080P@30fps
720P@30fps
Support CVI input:
1080P@30fps
720P@30fps
Support CVBS input
Audio Input: 1-ch, RCA
Audio Compression: G.711U
Video/Audio Output
VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output: 1-ch, RCA
Synchronous Playback:
HD:4-ch
SD:8-ch
Live view display: HDMI/VGA: 1/4/6/8/9/16
Two-way Audio: 1-ch, RCA
Network
Incoming Bandwidth: 32Mbps (Up to 40Mbps after all analog channel conversion)
Outgoing Bandwidth: 64Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Browser:
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Encoding
Recording Resolution: 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF
Recording Frame Rate:
| Main stream | Sub stream |
| 5MP Lite@6fps | D1@6fps |
| 4MP Lite@8fps | D1@8fps |
| 1080P Lite@12fps | D1@12fps |
| 720P@12fps | D1@12fps |
Audio Sample Rate: 8KHz,16 bit per channel
Audio Bit Rate: 64Kbps per channel
Decoding
Capability:
Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps
IP : 1 x 4MP@30 1 x 4MP@30 , 2, 2 x 1080P@30x
Hard Disk
SATA: 1 SATA interface
Capacity:
Up to 8TB for each HDD
(The maximum HDD capacity varies with environment temperature)
General Alarm
General Alarm: Motion detection
Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface: Rear panel: 2 x USB2.0
General
Power Supply:
12V DC
Power Consumption: ≤ 8 W( without HDD )
Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H): 260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Weight ( without HDD ): ≤1.1 Kg ( 2.42lb )
Certification
Certification:
UL
CE
FCC
RoHS
WEEE
