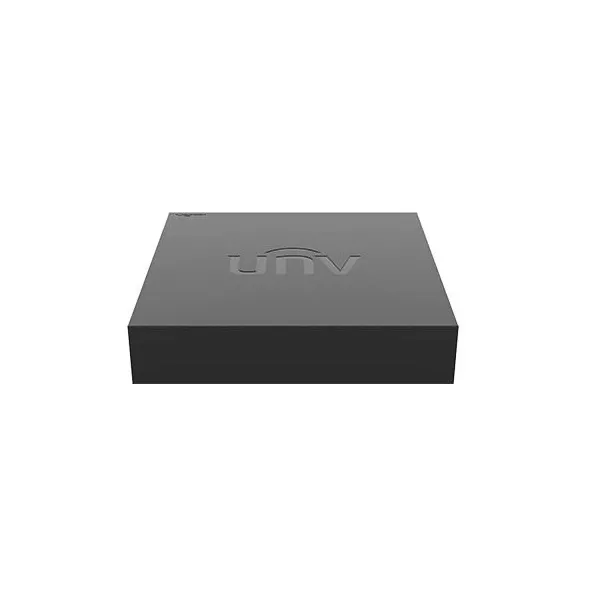

Model: XVR301-08F
Video/Audio Input
IP Video Input: 2-ch
Analog Video Input: 8-ch, BNC
Max IP Video Input: 10-ch
Supported Analog Camera Types:
Support AHD input:
1080P@30fps
720P@30fps
Support TVI input:
1080P@30fps
720P@30fps
Support CVI input:
1080P@30fps
720P@30fps
Support CVBS input
Video/Audio Output
HDMI Output: HDMI:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
VGA Output: VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz,
1280x720/60Hz, 1024x768/60Hz
Live View Display: HDMI/VGA: 1/4/6/8/9/16
Encoding/Decoding
Recording Resolution: 1080P Lite/720P/D1
Recording Frame Rate:
Main stream: 1080P Lite@15fps, Sub stream: D1@12fps
Main stream: 720P@15fps, Sub stream: D1@15fps
Audio Sample Rate: 8KHz,16 bit per channel
Audio Bit Rate: 64Kbps per channel
Decoding Capability:
Analog:8x 1080P Lite @15, 8x 720P @15
IP: 1 x 6MP@20, 2 x 1080P@30
Two-way Audio
Two-way Audio: NA
Analog Snapshot
FTP/Schedule/Event Snapshot:
FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution,
Schedule snapshot: not supported
Network
Incoming Bandwidth: 24Mbps (Up to 40Mbps after all analog channel conversion)
Outgoing Bandwidth: 64Mbps
Remote Users: 128
Protocols: TCP/IP;P2P;UPnP;NTP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP
Browser(Plugin):
IE(IE10/11)
Firefox (version 52.0 and above)
Chrome(version 45 and above)
Edge(version 79 and above)
Smart
Analog Smart by XVR: Ultra Motion Detection(UMD)
VCA Search: Behavior Search
Smart Functions by XVR: 8-ch(UMD)
Alarm
General Alarm: Motion
Alert Alarm:
IP Conflict; Network Disconnected; Disk offline; Disk Abnormal; Illegal Access; Hard Disk
Space Low; Hard Disk Full; Recording/Snapshot Abnormal
Hard Disk
SATA: 1 SATA interface
Capacity: Up to 6TB for each HDD
External Interface
Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB: Rear panel: 2 x USB2.0
Power Supply: DC 12V/1.5A
Working Environment
Working Temperature: -10°C ~ + 55°C ( +14°F ~ +131°F )
Working Humidity: ≤ 90% RH(non-condensing)
Power Consumption (without HDD): ≤ 10W
Dimensions
Weight (without HDD): ≤0.6 Kg ( 1.32lb )
Dimensions: 190mm × 202mm × 42mm (7.5" × 7.9" × 1.6")
Certification
Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part15 Subpart B
