Uniview

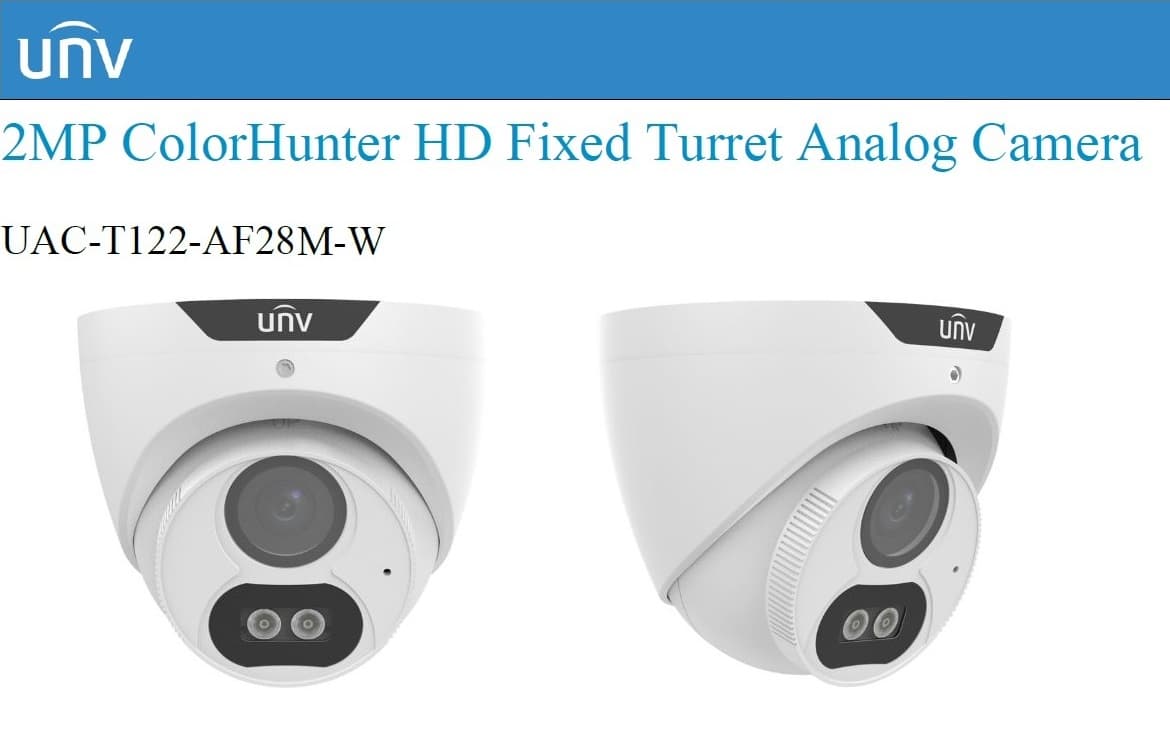

UNV UAC-T122-AF28M-W 2.0MP/2.8mm/BUILT IN MIC/40m IR DOME HD COLORHUNTER CAMERA
Tk
2600
Resolution: 1080P: 1920(H)×1080(V) / 720P: 1280(H)×720(V)
TVI/AHD/CVI/ CVBS: PAL, NTSC
Supports white light illumination, 24/7 color images
Supports 180° horizontal flip, 180° vertical flip
1 YEAR WARRANTY
HD Camera
Features
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Supports digital defog
• Metal front face and housing
• 3-Axis
Model: UAC-T122-AF28M-W
Sensor
Pixel: 2 MP
Sensor Size: 1/2.9" CMOS
Min. Illumination:
0.005 lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Focus: 2.8 mm
Lens Mount: M12
Angle of View (H): 101.5°
Angle of View (V): 56.9°
Angle of View (D): 117.4°
Illuminator
Illuminator Number: Two white-light illuminators
Illumination Distance: 40m
Lifetime: ≥ 60000 hours
Video
Resolution:
1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame Rate:
TVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter Time:
PAL: 1/25s-1/50000s，
NTSC: 1/30s-1/50000s
Exposure Mode: Four modes: Global (default), BLC, HLC, DWDR
Day/Night: 24/7 color images
Digital Noise Reduction: 2D/3D
White Balance: Two modes: Auto (default), Manual
WDR: DWDR
Flip: Supports 180°horizontal flip, 180°vertical flip
Digital Defog: Support
Audio
Built-in Mic: Support
Camera Audio:
TVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
Interface
Power Interface: 5.5 mm Power Interface
Video Output: BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV for power, 4 KV for video output interfaces
Ingress Protection: IP67
General
Power: DC 12 V ± 25%
Power Consumption: MAX 3.12W
Mount: Wall Mount, Pole Mount, Corner Mount, Pendant Mount
Dimensions: Φ111mm*96mm (diameter*height)
Material: Metal + Plastic
Weight: 356g(0.79lb)
