Uniview

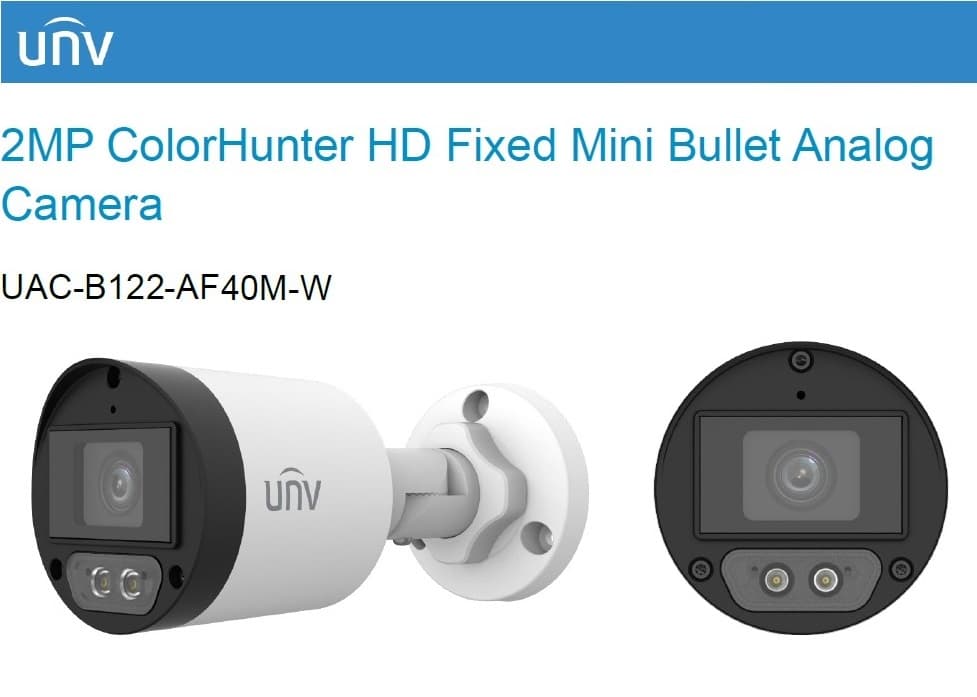

Uniview UAC-B122-AF40M-W 2.0MP/4mm/BUILT IN MIC/40m IR BULLET HD COLORHUNTER CAMERA
Tk
2600
Resolution: 1080P: 1920(H)×1080(V) / 720P: 1280(H)×720(V)
TVI/AHD/CVI/ CVBS: PAL, NTSC
Supports white light illumination, 24/7 color images
Supports 180° horizontal flip, 180° vertical flip
1 YEAR WARRANTY
HD Camera
Features
• 2MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cable
• Supports digital defog
• Metal front face and housing
Model: UAC-B122-AF40M-W
Sensor
Pixel: 2MP
Size: 1/2.9"
Minimum illumination:
0.005 lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Lens: 4.0mm
Lens mount: M12
Angle of view: H: 83.8° V: 42.7° D: 100.1°
Illuminator
Illuminator: Two white-light illuminators
Illumination distance: 40m
Lifetime: ≥60,000 hours
Video
Resolution:
1080P: 1920(H)×1080(V)
720P: 1280(H) ×720(V)
Frame rate:
TVI/AHD/CVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps
CVBS: PAL, NTSC
Shutter time:
PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode: Four modes: Global (default), BLC, HLC, DWDR
Day/Night: 24/7 color images
Digital noise reduction: 2D/3D
White balance : Two modes: Auto (default), Manual
WDR: DWDR
Flip: Supports 180° horizontal flip, 180° vertical flip
Defog: Digital Defog
Audio
Microphone: Built-in Mic
Camera audio:
TVI: 1080P@25fps, 1080P@30fps
CVI: 1080P@25fps, 1080P@30fps
Interface
Power: 5.5mm power interface
Video output: BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature: -30°C to 60°C (-22°F to 140°F)
Humidity: ≤95% (RH, non-condensing)
Surge protection: 4kV
Ingress protection: IP67
General
Power: DC 12V (±25%), with reverse polarity protection, Max 3.12W
Mount: 3D bracket supplied, surface mount (default), optional junction box
Dimensions: 157.4mm*66.5mm*66.5mm (L*W*H)
Material: Metal
Weight: 279g (0.62lb)
Certification: CB, CE, FCC, UL
