Uniview

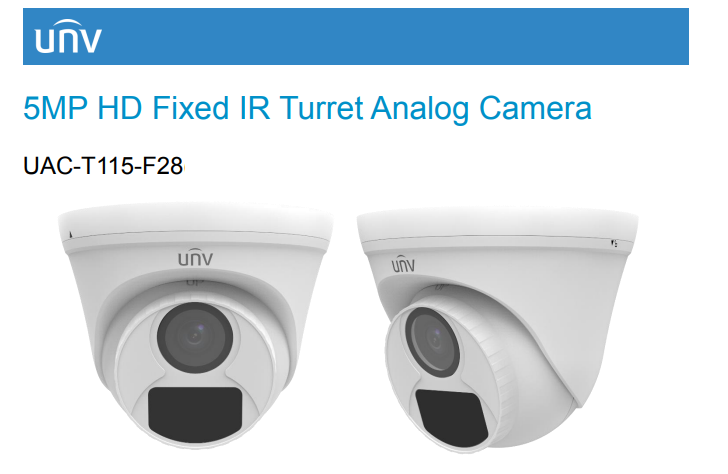

UNV UAC-T115-F28 5.0MP/2.8mm/20m IR DOME HD CAMERA
Tk
2200
5MP HD Fixed IR Turret/Dome Analog Camera
TVI/AHD/CVI/CVBS
2.8mm Lens
Angle of view : H: 90.5° V: 49.6° D: 109.5°
DWDR
IP67
Plastic Housing
Illumination distance (IR) : 20M
1 YEAR WARRANTY
HD Camera
Introduction
UAC-T115-F28/F40 is a 5MP HD Fixed IR Turret Analog Camera with a high-performance 1/2.7-inch CMOS sensor. It
supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions.
With SYV-75-3 or other coaxial cable types the camera can achieve low-cost, long-distance, anti-interference, and low
delay mega-pixel HD video transmission. The camera supports IR cut filter and provides color images at daytime and
black/white images at night.
Sensor
Pixel: 5MP
Size: 1/2.7"
Minimum illumination: 0.02lux(F2.0, AGC ON), 0 lux (IR on)
Lens
Lens: 2.8mm
Lens mount: M12
Angle of view: H: 102.2° V: 53.9° D: 124.8°
Illuminator
Illuminator: One IR illuminator
Illumination distance: 20m
Lifetime: ≥60,000 hours
Video
Resolution:
5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); [email protected]: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
2MP: 1920(H)×1080(V)
Frame rate:
TVI: 5MP@20fps, [email protected], 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVBS: PAL, NTSC
Shutter time:
PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Exposure mode: 4 modes: Global (default), BLC, HLC, DWDR
Day/Night: 3 modes: Auto (default), Day, Night
Digital noise reduction: 2D
White balance: Two modes: Auto (default), Manual
WDR: DWDR
Smart IR: Support
Flip: Supports 180° horizontal flip, 180° vertical flip.
Interface
Power: 5.5mm power interface
Video output: BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature: -30℃ to 60℃(-22℉ to 140℉)
Humidity: ≤95% (RH, non-condensing)
Surge protection: 4KV
Ingress protection: IP67
General
Power: DC 12V(±25%), with reverse polarity protection and surge protection, Max 3.6W
Mount: Ceiling mount (default), optional backbox, wall mount bracket
Dimensions: Φ118mm*96mm (diameter*height)
Material: Plastic
Weight: 182g(0.401lb)
Certification: CB, CE, FCC
