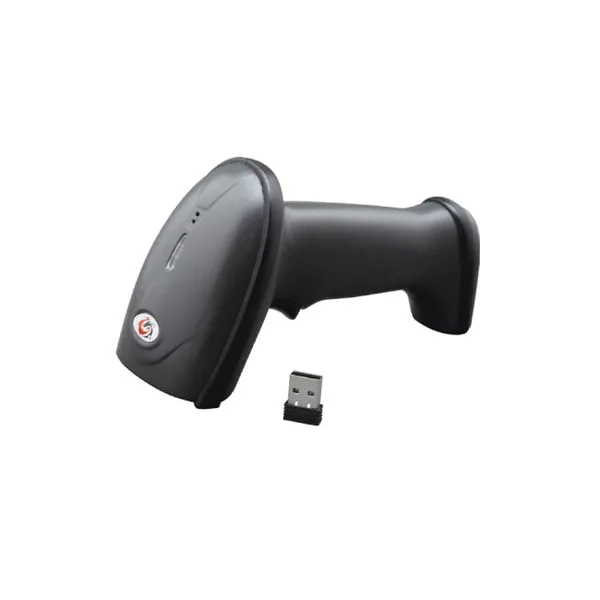

SUNLUX XL-9221B 2D WIRELESS BARCODE SCANNER
Tk
4800
Durable buttons passed 2 million times pressing test
Support online update
2.4G + Bluetooth double wireless transmission modes
Super decoding ability
Barcode Scanner
Quantity:
• 4mil scan precision
• Firmware support upgrade on-line
• 2.4G & Bluetooth mode, easy operate
• Read standard 1D&2D barcodes from screen & paper
• Micro USB cable charging
• Large storage of 40,000 EAN 13 code
• Large capacity battery, working for 16 hours
Performance Parameters
Light Source: White LED (Lighting)
CPU: MIPS @1GHz
Image Sensor: CMOS
Image size: 640x480 pixels
Precision: 4 mil
Depth of Scan Field: 20-220mm (13mil PCS90%)
Sensitivity: Roll: 360° Skew:±65° Pitch:±60°
Wireless Performance: 2.4G: 100M distance (open space); Bluetooth (4.0 HID): 10M distance（open space）
Scan Speed: 30fps/s
Memory capacity: Up to 520,000 characters (40,000 EAN 13 barcodes)
Scan Mode: Manual & Continuous
Decoding Capability:
1D: UPC-A; UPC-E; EAN-8; EAN-13; Code39; Codabar; Code128; Interleaved 2 of 5; Industrial 2 of 5; Matrix 2 of 5; Code 93; UCC/EAN 128; Code 11; MSI; UK/Plessey ; ISBN/ISSN; GS1
Databar Expanded; GS1 Databar; GS1 Databar Limited.
2D: QR code; PDF 417; Datamatrix
The other parameters
Dimension:
Scanner: L × W × H:170mm × 73mm × 102mm
Receiver: L × W × H:19mm × 14mm × 6mm
Weight: 200g
Material: ABS+PC
Battery: Rechargeable lithium battery, 2200 mAh, 16 hours (continuous working )
Current (Working): 110MA (Operating current), 35MA (Static current), <1uA（Standby current）
Temperature: -20℃- 55℃（working temperature)，- 40℃- 80℃（Storage temperature)
Support Interface: USB、USB-VCP(2.4G& micro USB cable mode)
Charging Mode: Micro USB charging , DC5V (charging voltage), 4.5 hours (charging time)
Communication mode: 2.4G, bluetooth, micro USB cable
Indicator: Double LED Indicator and Buzzer
Humidity: 5% to 95%
Illumination: 0-100000 lux
