Sunlux

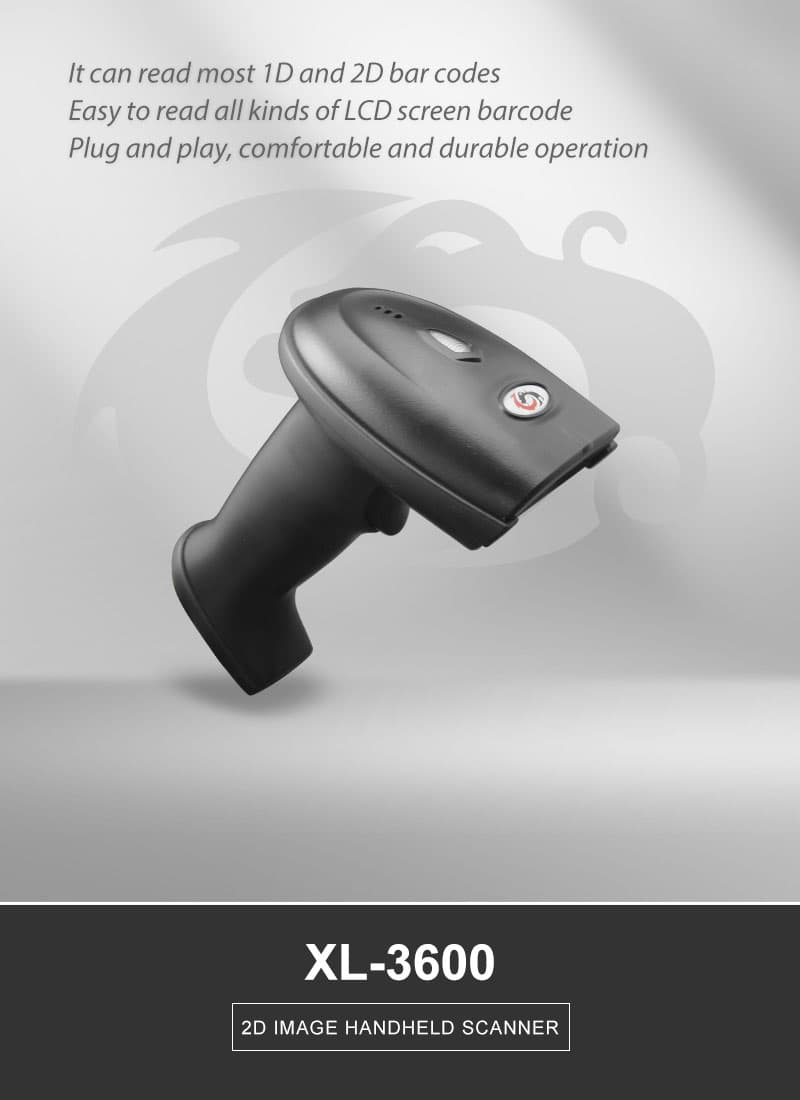

SUNLUX XL-3600 2D HANDHELD BARCODE SCANNER
Out of Stock
Barcode Scanner
• Good performance on both display and printed label reading.
• 2 in 1 Combo Interface that easily changes interface by replacing cable.
• High-density 1D & 2D codes commonly printed on medicine packageing.
• Designed especially for retail, health-care and payment settings.
• Plug-and-play interfaces enable the scanner to be used with different host devices.
Model: XL-3600
Light Source: Red LED (Marking Light) White LED (Lighting)
Image Sensor: CMOS
Scan Mode: Manual & Continous
Image Size: 640x480 pix
Scan Speed: 30 fps/s
Decoding Depth: 40-220mm (0.33mm pcs0.9, EAN13)
Minimum Resolution: 4mil
Print Contrast Signal: 15%
Size: L x W x H:175mm x 73mm x 102mm
Case Material: ABS+PC
Cable Standard: 2m
Input Voltage: DC 5V
Working current: 230mA
Stand-by current: 150mA
Indicator: LED Indicator and Buzzer
Drop Test: 1.5m
Interface: USB, RS232, USB-VCP
Temperature (Operating): -10°C-55°C
Temperature (Storage): -20°C-60°C
Humidity: 5% to 95% (non-condensing)
Light Levels: 0-100,000 Lux
Scan Angle:
Rotation: 360° tilt: ±50° deflection: +50°
Field of view angle: horizontal 36°, vertical 23°
Decoding Capability: 1D: UPC-A, UPC-E; EAN-8; EAN-13; Code39; Codabar; Code 128; Interleaved 2 of 5; Industrial 2 of 5; Matrix 2 of 5; Code 93; UCC/EAN 128; Code 11; MSI; UK/Plessey; ISBN/ISSN; GS1 Databar Expanded; GS1 Databar; GS1 Databar Limited. 2D: QR code; PDF 417; Datamatrix
