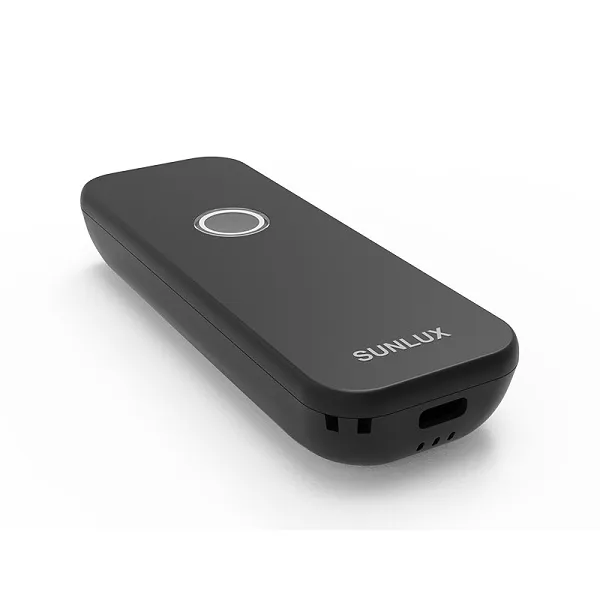

SUNLUX XL-9010 PORTABLE BLUETOOTH POCKET DESIGN 2D WIRELESS LASER BARCODE SCANNER

Model: XL-9010
Code reading type: 1D/2D, on paper'screen
Image sensor: CMOS (XL-3090Z)
Light source: White LED
CPU: ARM
Image size: 640x480Pixel
Scanning speed: 30fps
Mnimum resolution: =4mil
Decoding depth: 65-270mm (13mil PCS90%)
Print Contrast: =25%
Scanning angle: Deflection 360°  Inclination ±65°  Rotation ±60°
Scan mode: Manual trigger & Automatic induction
Memory: 16M can store 26 million characters
Decoding capability
1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 32, Codabar(NW-7),
Interleaved 2 of 5, Matrix 2 of 5. Industrial 2 of 5, Standard 2 of 5
(IATA), Code 11, MSI Plessey
2D: QR Code, Micro QR Code. Data Matrix, PDF 417

Other parameters
Size: Scanner: L*W*H= 110*40*18.6(mm)
Receiver: L*W*H= 18*14*6(mm)
Weight: 66 g
Material: ABS+PC
Working current: 185 ma
Quiescent current: 85 ma
Charging method: TYPE-C USB
Input voltage: DC5V
Charging time: 4 hours
Battery: Non-removable rechargeable lithium battery, 1500mAh
Standby time: 6 months (Dormant state)
Indicator: Ring LED indicator light, buzzer
Interface: USB, USB-VCP
Communication methods: 2.4G, bluetooth
Continuous working time: 15 hours
Temperature (storage): -20°C~60°C
Temperature (operating): -10°C~50°C
Humidity (operating): Relative humidity: 5%-95%(no condensation)
Light Source: 0-100,000Lux
Drop test: 1.5meter

Wireless performance parameter
2.4G
Frequency: 2.4GHz
Communication distance: >100m (open space)

Bluetooth
Version: 4.2
Interface: HID, BLE, SPP
Communication distance: 10m (open space

• XL-9010 Full Manual V4.5(3090Z)(1).pdf
