Sunlux

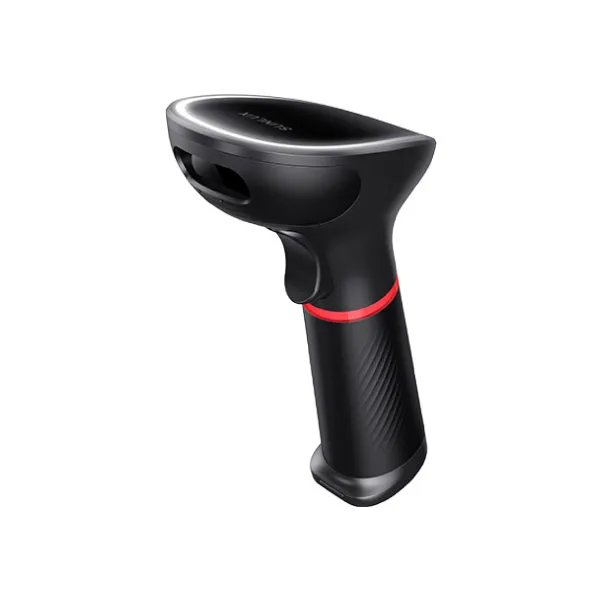

SUNLUX XL-3610 2D HANDHELD BARCODE SCANNER
Coming Soon
640x480 pixels high sensitivity camera
60 fps quick reading speed
Quick decoding 3mil barcodes
Win 10, IOS, Android, Linux compaiable
Barcode Scanner
•Unique appearance, stylish shape, modern design
•0.3 million global shutter camera, fast reading speed 60fps/s
•Fast reading on all 1D/2D barcode on paper and screen
•Quick decoding 3mil barcode and difficult barcodes
(blurred, wrinkled, low contrast, high density, high accuracy, long barcode)
•Compatible with Windows 7/8/10, iOS, Android, Linux system
•Suitable for retail stores, supermarkets, restaurant, pharmacy
Image Sensor: CMOS
Light Levels: White LED (Lighting) RED aiming light
CPU: 32bit ARM
Exposure: Global Shutter
Image size: 640x480 pixels
Scanning speed: 60fps
Decoding Depth: 60-360mm (13mil PCS90%)
Minmum Resolution: 3mil
Interface: USB-HID, USB-VCP, RS232
Scan Mode: Manual& Automatic
Materials: ABS+TPU
Size: L*W*H: 163*68*80(mm)
Weight: 185g
Input Voltage: DC 3.6V-5.5V
Working current: 142mah
Stand-by current: 42mah
Temperature (Operating): -10°C -50°C
Temperature(Storage): -20°C -60°C
Indicate: LED Indicator and Buzzer
Cable Standard: 1.5m
Motion Tolerance: 13cm/second, (Skew/Pitch) +/- 65°; +/- 65°
Humidity: 5%-95% (non-condensing)
Light Source: 0-5000Lux(fluorescent light),0-100,000Lux(daylight)
Print min. Contrast: 10%
IP Class: IP54
Decoding Capability: 1D:Codabar,Code11,Code39,Code32, Interleaved 2 of 5,
Industrial 2 of 5, Matrix 2 of 5, Code93, Code 128,GS1-128, UPC-A,
UPC-E,EAN 8,EAN 13,GS1 DataBar RSS14,GS1 DataBar Limited,
GS1 DataBar Expanded,etc.
2D: PDF417,Micro PDF417,QR Code, Micro QR,
Data Matrix,Aztec Code
