Sunlux

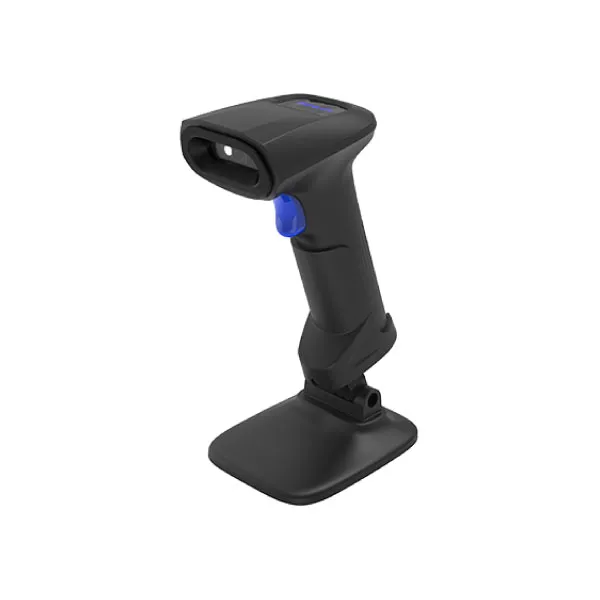

SUNLUX RH10S 2D HANDHELD BARCODE SCANNER WITH STAND
Tk
3350
32bit ARM CPU
CMOS Image Sensor
60fps Scanning Speed
600x480 Pixels Resolution
Plug & Play
Barcode Scanner
• Unique appearance and stable structure
• Ultra long depth of field, support scanning barcodes from a wide range
• Strong decoding capability on 3mil barcodes and difficult barcodes (blurred, wrinkled, low contrast, high density, long barcodes)
• Quick reading all kinds of 1D/2D barcodes on paper and screen
• Support multiple interfaces, USB HID, USB-VCOM and RS-232
• Fit with retail stores, supermarkets, restaurants, pharmacies, etc
Performance Parameter
CPU: 32bits ARM
Light Source: White LED (Lighting) Red LED(aiming)
Scan Mode: Manual & Automatic & Continuous
Image Sensor: CMOS
Resolution: 640x480 Pixels
Scan Speed: 60FPS
Scan Precision: ≥3mil(code 128 6 digits)
Depth of Field: 60~300mm（13mil code39）
Print Contrast: ≥15%
Interface: USB-HID, USB-VCP, RS232
Decoding Capability:
1D:Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, GS1-128,
UPC-A, UPC-E, EAN 8, EAN 13, ISBN, ISSN, GS1 DataBa（r RSS14）, GS1 DataBar Limited,
GS1 DataBar Expanded, MSI, Standard 25, Plessey
2D: PDF417, Micro PDF417, QR Code, Data Matrix, Aztec Code, Hanxin code, Maxicode
Physical Parameter
Size: L × W × H: 170.9×64.4×86.8(mm)
Weight: 175g(scanner); 175g(base)
Case Material: ABS+PC
Electrical Parameter
Input Voltage: DC5V±5%
Working Current: 260mA
Standby Current: 140mA
Enviromental Parameter
Temperature (Operating): -10℃~50℃
Humidity: 5% to 95% (non-condensing)
Temperature (Storage): -20℃~60℃
IP GRADE: IP42
Resistance To Ambient Light: 0-100000 lux
The depth of field performance
| code 39 (6 digits） | Minimum distance(mm) | Maximum distance(mm) |
| 4mil | 60 | 120 |
| 8mil | 40 | 200 |
| 13mil | 60 | 300 |
| 20mil | 90 | 400 |
| EAN 13(6 digits） | Minimum distance(mm) | Maximum distance(mm) |
| 4mil | 60 | 120 |
| 8mil | 20 | 210 |
| 13mil | 40 | 300 |
| 20mil | 60 | 410 |
| code 128 (6 digits） | Minimum distance(mm) | Maximum distance(mm) |
| 4mil | 50 | 120 |
| 8mil | 20 | 200 |
| 13mil | 30 | 290 |
| 20mil | 50 | 400 |
| QR (30 digits） | Minimum distance(mm) | Maximum distance(mm) |
| 6mil | 40 | 90 |
| 15mil | 20 | 200 |
| 20mil | 30 | 270 |
| 45mil | 60 | 500 |
