Tk
65000
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1
CPU nominal frequency: 800 MHz

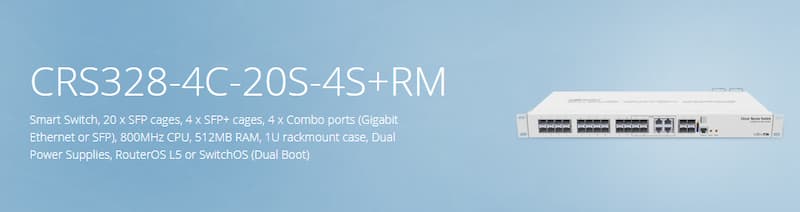

CRS328-4C-20S-4S+RM
Smart Switch, 20 x SFP cages, 4 x SFP+ cages, 4 x Combo ports (Gigabit Ethernet or SFP), 800MHz CPU, 512MB RAM, 1U rackmount case, Dual Power Supplies, RouterOS L5 or SwitchOS (Dual Boot).
Specifications
Details
Product code: CRS328-4C-20S-4S+RM
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1
CPU nominal frequency: 800 MHz
Switch chip model: 98DX3236
Dimensions: 443 x 194 x 44 mm
RouterOS license: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
Powering
Details
Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 43 W
Cooling type: 2 fans
Ethernet
Details
Ethernet Combo ports: 4
Fiber
Details
SFP ports: 20
SFP+ ports: 4
Peripherals
Details
Serial console port: RJ45
Other
Details
CPU temperature monitor: Yes
Voltage Monitor: Yes
Mode button: Yes
Certification & Approvals
Details
Certification: CE, EAC, ROHS
