Out Of Stock
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Switch chip model: QCA8513
Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.
Perfect SOHO gateway router, switch, 11n AP all in one box
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
• high power 2.4GHz 11n wireless AP
Specifications
Details

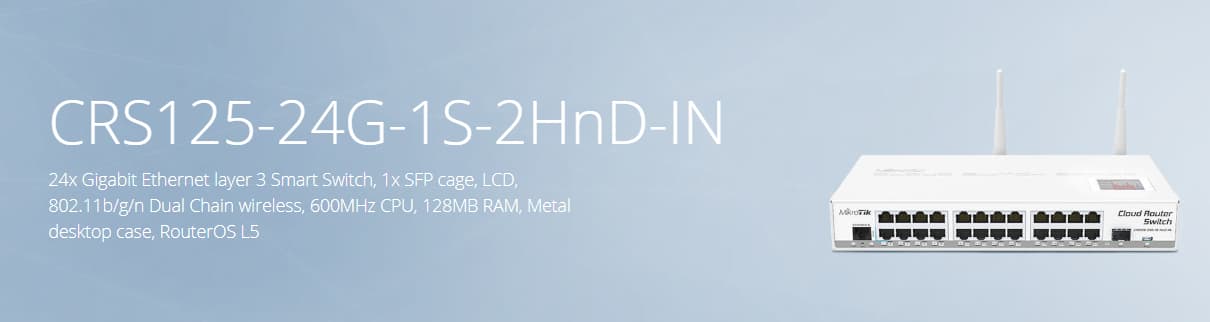

Product code: CRS125-24G-1S-2HnD-IN
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Switch chip model: QCA8513
Dimensions: 285 x 167 x 44 mm
RouterOS license: 5
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -30°C to 60°C
Powering
Details
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 8-28 V
Max power consumption: 19 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 8-28 V
Wireless specifications
Details
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 4
Wireless 2.4 GHz chip model: AR9344
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
Details
10/100/1000 Ethernet ports: 24
Fiber
Details
SFP DDMI: Yes
SFP ports: 1
Peripherals
Details
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: microUSB type AB
Max USB current (A): 1
Other
Details
PCB temperature monitor: Yes
Voltage Monitor: Yes
Beeper: Yes
Certification & Approvals
Details
Certification: CE, FCC, EAC, ROHS
IP: IP20
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 29 | -97 |
11MBit/s | 28 | -90 |
6MBit/s | 30 | -96 |
54MBit/s | 25 | -76 |
MCS0 | 30 | -96 |
MCS7 | 23 | -73 |
