Tk
20500
Product code: CRS305-1G-4S+IN
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1

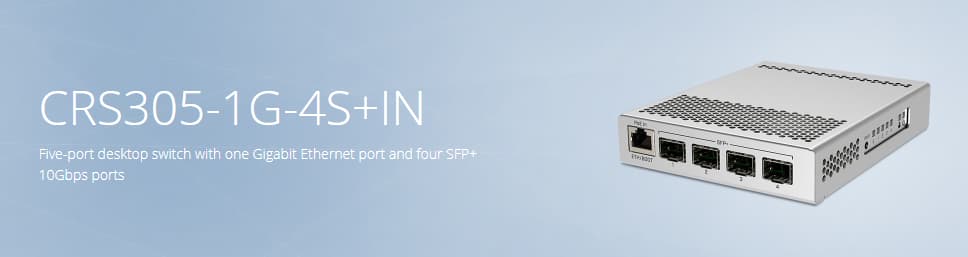

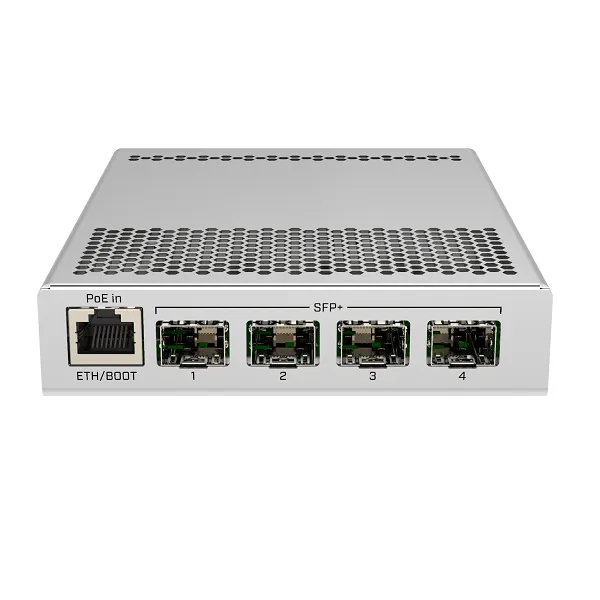

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access or regular traffic forwarding and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.
Specifications
Details
Product code: CRS305-1G-4S+IN
Architecture: ARM 32bit
CPU: 98DX3236
CPU core count: 1
CPU nominal frequency: 800 MHz
Switch chip model: 98DX3236
Dimensions: 141 x 115 x 28 mm
RouterOS license: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
Details
Number of DC inputs: 3 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 18 W
Max power consumption without attachments: 10 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 12-57 V
Ethernet
Details
10/100/1000 Ethernet ports: 1
Fiber
Details
SFP+ ports: 4
Other
Details
CPU temperature monitor: Yes
Certification & Approvals
Details
Certification: CE, EAC, ROHS
IP: IP20
