Product code: CRS106-1C-5S
Architecture: MIPSBE
CPU: QCA8511
CPU core count: 1
CPU nominal frequency: 400 MHz
CRS106-1C-5S

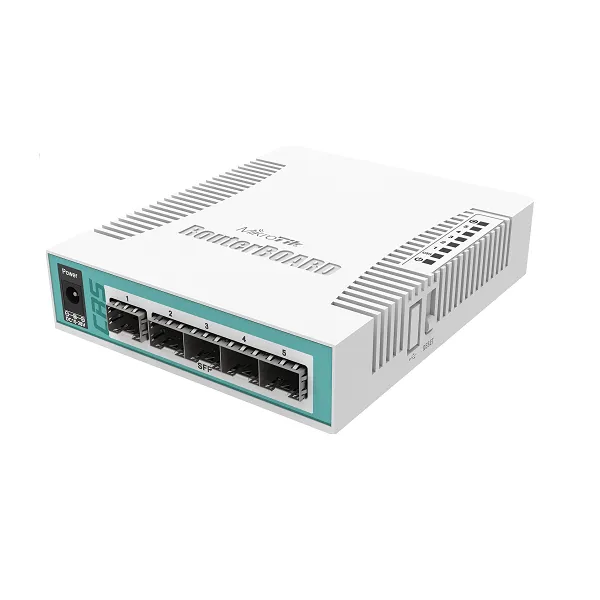

The Cloud Router Switch 106-1C-5S is a desktop
size smart switch, equipped with one Gigabit
Ethernet / SFP combo port and five 1.25 Gbps SFP
cages. The package includes a power supply.
Powered by a 400 MHz CPU and 128 MB RAM,
it runs RouterOS with a L5 license and supports
11-30 V power.
Specifications
Details
Product code: CRS106-1C-5S
Architecture: MIPSBE
CPU: QCA8511
CPU core count: 1
CPU nominal frequency: 400 MHz
Switch chip model: QCA8511
Dimensions: 114 x 137 x 29mm
RouterOS license: 5
Operating System: RouterOS
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -20°C to 70°C
Powering
Details
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 11-30 V
Max power consumption: 11 W
Cooling type: Passive
PoE in: Passive PoE
PoE in input Voltage: 11-30 V
Ethernet
Details
Ethernet Combo ports: 1
Fiber
Details
SFP ports: 5
Peripherals
Details
Serial console port: RJ45
Certification & Approvals
Details
Certification: CE, EAC, ROHS
IP: IP20
