Uniview

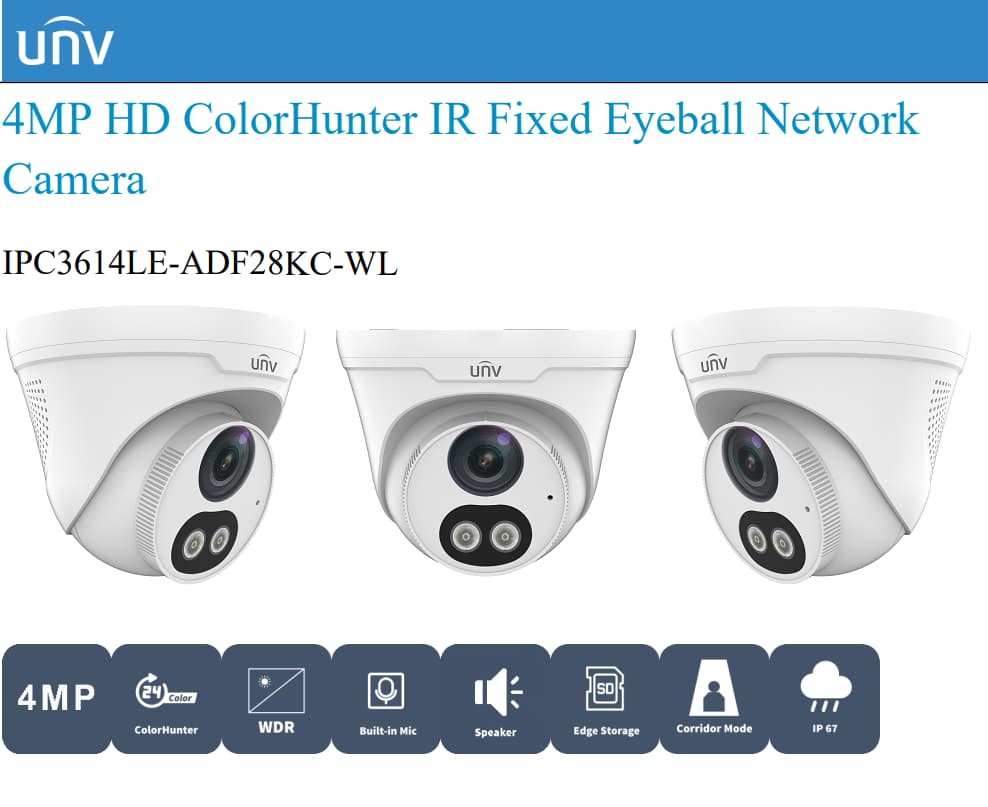

UNV IPC3614LE-ADF28KC-WL 4MP HD COLORHUNTER 2.8 IR FIXED EYEBALL NETWORK CAMERA
Tk
6900
Material: Metal + Plastic
Support 9:16 Corridor Mode
Built-in Mic & Speaker
1 YEAR WARRANTY
IP Camera
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic & Speaker
• Smart IR, up to 30m (98ft) IR distance
• White Light, up to 30m (98ft) white light distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply DC12V
• 3-Axis
Camera
Max Resolution: 4 MP
Sensor: 1/3.0" CMOS
Min. Illumination:
Colour: 0.003 lux ( F1.6, AGC ON)
0 Lux with light
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle:
Pan: 0° ~ 360°
Tilt: 0° ~ 80°
Rotate: 0° ~ 360°
S/N: >52 dB
WDR: 120 dB
Lens
Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 112.9°
Field of View (V): 59.1°
Field of View (D): 121.2°
DORI
DORI Distance (Lens): 2.8mm
DORI Distance (Detect): 63.0m(206.7ft)
DORI Distance (Observe): 25.2m(82.7ft)
DORI Distance (Recognize): 12.6m(41.3ft)
DORI Distance (Identify): 6.3m(20.7ft)
Illuminator
Supplemental Light: Dual light
Illumination Distance (IR): 30 m (98.4 ft)
Illumination Distance (Warm Light): 30 m (98.4 ft)
Wavelength: 850 nm
Light On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
Video Bit Rate: 128 Kbps to 16 Mbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual Streams
White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog
Events
Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz
Storage
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR, NAS (NFS)
Network
Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client: UNV-Link, UNV-Link Pro, EZStation
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: Support
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A
Certification
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety:
CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)
General
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption: Max 5.0W
Power Interface: Ø5.5 mm coaxial power plug
Dimensions: Ø118 x 96mm (Ø4.6” x 3.8”) (Ø x H)
Weight: 0.30kg (0.66lb)
Material: Metal + Plastic
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: N/A
Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
