Uniview

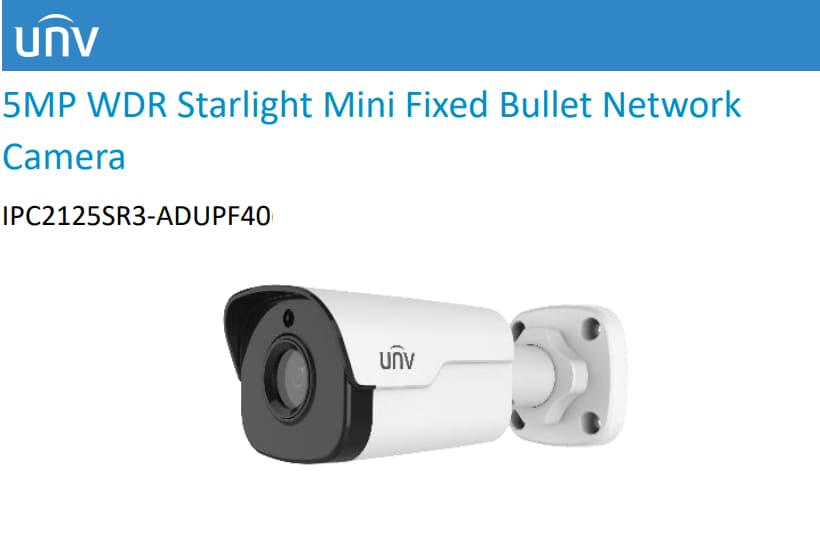

UNV IPC2125SR3-ADUPF40 5MP WDR STARLIGHT FIXED BULLET IP CAMERA

Out Of Stock

Metal Housing
Smart IR , up to 30m IR distance
Ultra 265/H.265/H.264/MJPEG
9:16 corridor format

IP Camera

Quantity:

Description
Specification

Optics
• Starlight illumination
• Day/night functionality
• Smart IR, up to 30m (98ft) IR distance
• Optical glass window with higher light transmittance
• IR anti-reflection window to increase the infrared transmittance
• 2D/3D DNR (Digital Noise Reduction)
Compression
• Ultra 265, H.265, H.264, MJPEG
• Embedded smart algorithm
• Triple streams
• 9:16 corridor format
Network
• ONVIF Conformance
Structure
• Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
• Wide voltage range of ±25%
• IP67
• 3-Axis

Camera

Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS

Lens: [email protected]

DORI Distance

Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
4.0	90	36	18	9
6.0	135	54	27	13.5

Angle of View (H): 79.7°

Angle of View (V): 51.8°

Angle of View (O): 98.1°

Adjustment angle: Pan: 0°~ 360°, Tilt: 0°~ 90°, Rotate: 0°~ 360°

Shutter: Auto/Manual, 1 ~ 1/100000s

Minimum Illumination:

Colour: 0.005Lux (F1.6, AGC ON)

0Lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Digital noise reduction: 2D/3D DNR

S/N: >52dB

IR Range: Up to 30m (98ft) IR range

Defog: Digital Defog

WDR: 120dB

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main Profile, High Profile

Frame Rate:

Main Stream: 5MP (2592*1944), Max 20fps; 5MP (2592*1944), Max 25fps (WDR OFF); 4MP (2560*1440), Max 30fps;

3MP (2048*1536), Max 30fps; 2MP (1920*1080), Max 30fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps

9:16 Corridor Mode: Supported

HLC: Supported

BLC: Supported

OSD: Up to 8 OSDs

Privacy Mask: Up to 8 areas

ROI: Up to 8 areas

Motion Detection: Up to 4 areas

Smart

Behavior Detection: Intrusion, cross line, motion detection

Intrusion: Enter and loiter in a pre-defined virtual region

cross line: Cross a pre-defined virtual line

motion detection: Moving within a pre-defined virtual region

Recognition: Face detection, Audio detection

Intelligent Identification: Defocus, Scene Change, Object Left, Object Moving

Statistical Analysis: People counting

General Function: Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression: G.711

Suppression: Supported

Sampling Rate: 8KHZ

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration: ONVIF (Profile S, Profile T), API

Interface

Built-in Mic: Supported

Network: 1 RJ45 10M/100M Base-TX Ethernet

General

Power:

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 6W

Dimensions (L × W × H): 157.3 × 62.4 × 63mm (6.2” × 2.5” × 2.5”)

Weight: 0.45kg (0.99lb)

Working Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection: IP67

Reset Button: Supported
