Uniview

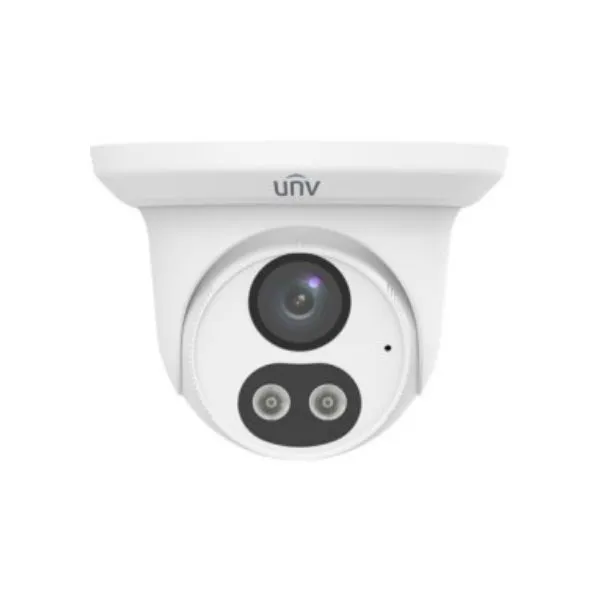

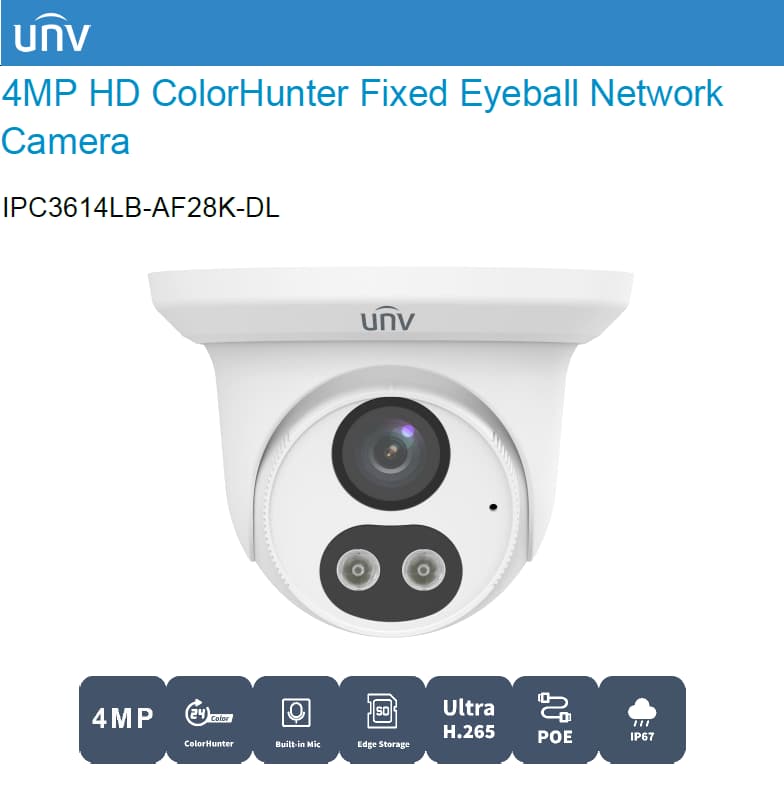

UNV IPC3614LB-AF28K-DL 4.0MP/2.8MM/30M IR/ BUILT IN MIC/128GB SD CARD SLOT HD COLORHUNTER FIXED DOME IP CAMERA
Ask For Price
High quality image with 4MP, 1/3"CMOS sensor
4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
IP Camera
Quantity:
Features
• High quality image with 4MP, 1/3"CMOS sensor
• 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra H.265,H.265, H.264
• Support 9:16 Corridor Mode
• Built-in Mic
• Smart IR, up to 30m (98ft) IR distance
• Warm Light, up to 30m (98ft) warm light distance
• 2D/3D DNR (Digital Noise Reduction)
• Support 128GB Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Model: IPC3614LB-AF28K-DL
Camera
Resolution: 4MP
Sensor: 1/3.0" CMOS
Min. Illumination:
Colour: 0.01 lux ( F1.6, AGC ON)
0 lux with IR
Day/Night: IR‑cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: DWDR
Lens
Lens type: 2.8mm
Iris Type: Fixed
Iris: F1.6
Field of View (H): 97.0°
Field of View (V): 52.2°
Field of View (D): 107.5°
DORI
DORI Distance（Lens): 2.8mm
DORI Distance（Detect): 63.0m(206.7t)
DORI Distance（Observe): 25.2m(82.7ft)
DORI Distance（Recognize): 12.6m(41.3ft)
DORI Distance（Identify): 6.3m(20.7ft)
Illuminator
Illumination Distance(IR): 30m
Illumination Distance(Warm Light): 30m
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265; H.265; H.264; MJPEG
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate: 128 Kbps~6144 Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams
White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog
Events
Basic Detection: Motion detection; Tampering alarm; Audio detection
General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication
Audio
Audio Compression: G.711U; G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8KHZ
Storage
Edge Storage: Micro SD，up to 128 GB
Network Storage: ANR; NAS(NFS)
Network
Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP
Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client: UNV‑Link; UNV‑Link Pro; EZStation
Web Browser:
Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base‑TX Ethernet
Video Output: N/A
Certification
EMC: CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)
FCC (FCC 47 CFR part15 B)
Safety: CE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment: CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection: IP67 (IEC 60529)
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 2.8W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions: Φ126 x 93.6mm (Φ5.0” x 3.7”)
Weight: 0.29kg (0.64lb)
Material: Metal + Plastic
Working Environment: ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Storage Environment: ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Surge protection: 4KV
Reset button: N/A
Web Client Language:
4 Languages
English, Russian, Spanish, Vietnamese
