Uniview

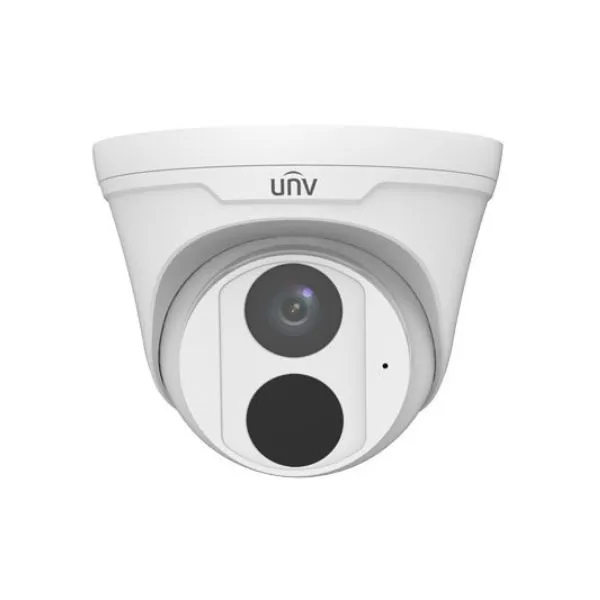

UNV IPC3612LB-ASF28-EZG 2.0MP/2.8MM/30M IR/BUILT IN MIC/ MINI FIXED DOME IP CAMERA
Tk
2750
Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination:
Color: 0.02Lux (F2.0, AGC ON)
0Lux with IR on
IP Camera
Quantity:
High quality image with 2MP,1/2.8’’ CMOS sensor
2MP(1920*1080)@25fps;720P (1280*720) @25fps
Ultra 265, H.265, H.264
2D/3D DNR (Digital Noise Reduction)
ROI (Region of Interest)
ONVIF Conformance
Smart IR, up to 30m (98ft) IR distance
3-Axis
Built-in Mic
Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
DC12V or PoE(IEEE 802.3af) power supply
IP67
Camera
Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination:
Color: 0.02Lux (F2.0, AGC ON)
0Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle:
Pan: 0° ~ 360°
Tilt: 0° ~ 80°
Rotate: 0° ~ 360°
WDR: DWDR
S/N: >52dB
Lens
Lens Type: [email protected]
Iris: Fixed
Field of View (H): 106.7°
Field of View (V): 57.1°
Field of View (D): 115.7°
DORI
DORI Distance
| Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8mm | 43.4 | 17.4 | 8.7 | 4.3 |
| 4.0mm | 62.1 | 24.8 | 12.4 | 6.2 |
Illuminator
IR Range: Up to 30m (98 ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps;
Sub Stream: D1 (720*576), Max 25fps; 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps;
Video Bit Rate: 128 Kbps~6 Mbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog
Events
Basic Detection: Motion detection, Audio detection
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: N/A
Suppression: Support
Sampling Rate: 8KHZ
Network
Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, QoS , RTMP
Compatible Integration: ONVIF (Profile S, Profile T), API
User/Host: Up to 32 users. 2 user levels: administrator and common user Client:
UNV-Link
UNV-Link Pro
EZStation
Web Browser: Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O: N/A
Alarm I/O: N/A
Built-in Mic: Support
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A
Certifications
EMC:
CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
RF:
FCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety: CE LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection: IP67 (IEC 60529)
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 3.5W
Dimensions (L × W × H): 144 × 60 × 65mm (5.6” × 2.4” × 2.6”)
Weight: 0.17kg (0.37lb)
Working Environment: -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment: -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Reset Button: N/A
