Uniview

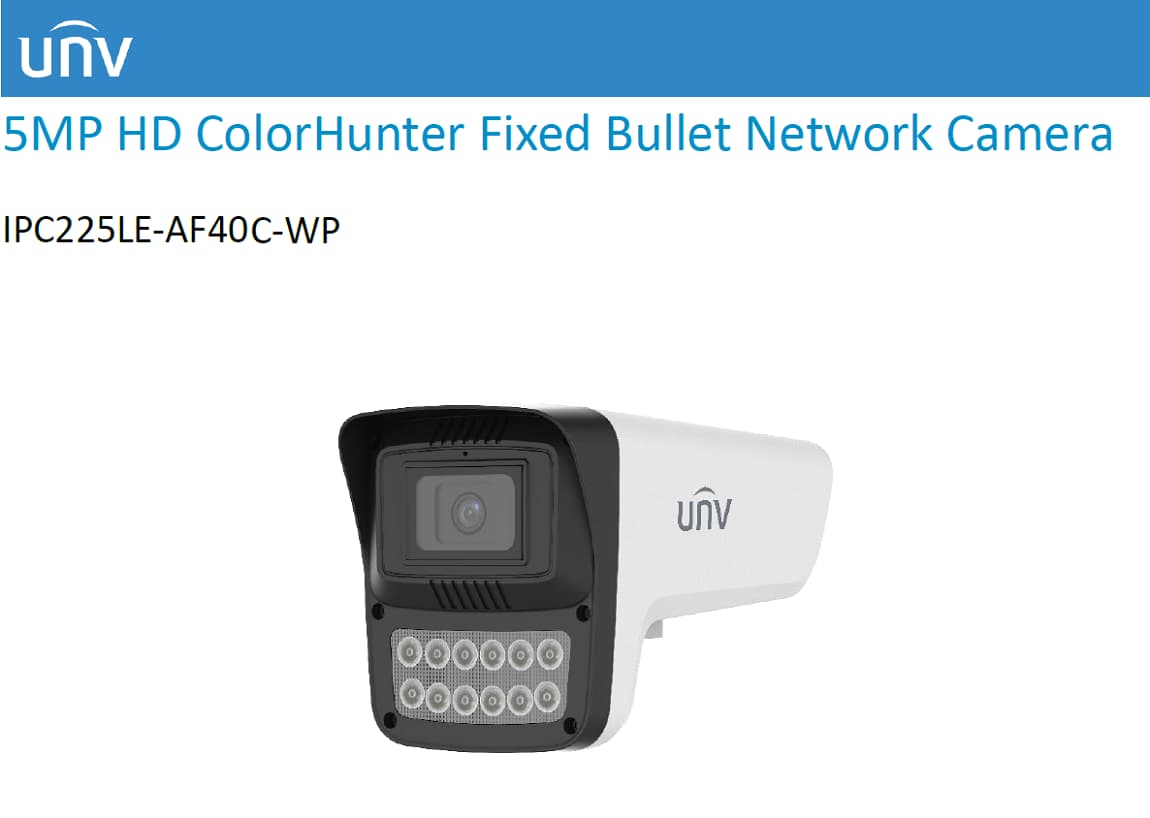

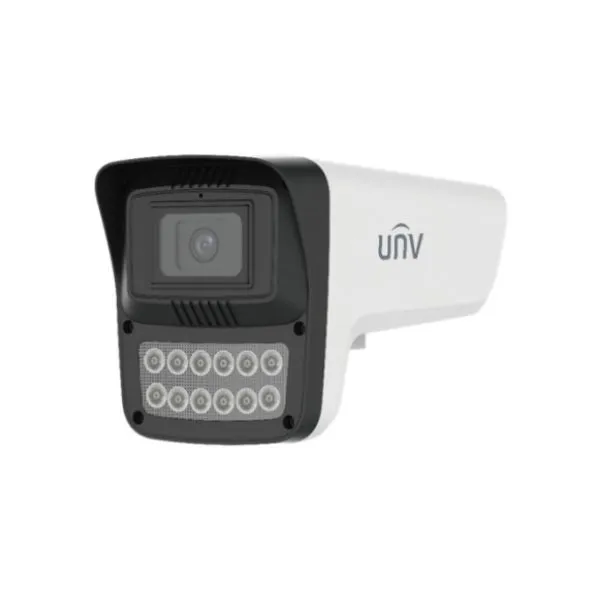

UNV IPC225LE-AF40C-WP 5.0MP/4mm/50m/BUILT IN MIC & SPEAKER COLORHUNTER WITH WISE-ISP FIXED BULLET NETWORK CAMERA
Tk
8600
Sensor: 1/1.8", 5.0 megapixel, progressive scan, CMOS
Minimum Illumination:
Colour: 0.0003Lux (F1.0, AGC ON)
0 lux with LED on
IP Camera
Quantity:
High quality image with 5MP, 1/1.8"CMOS sensor and F1.0 large aperture lens
5MP (2880*1620)@25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
Ultra 265, H.265, H.264
Colorhunter technology ensures 24-hour full-color images
Built-in Mic
Built-in Speaker
Warm Light, up to 50m white light distance
IP67 protection
Camera
Sensor: 1/1.8", 5.0 megapixel, progressive scan, CMOS
Minimum Illumination:
Colour: 0.0003Lux (F1.0, AGC ON)
0 lux with LED on
Shutter: Auto/Manual, 1 ~ 1/100000s
WDR: DWDR
S/N: >52dB
Lens
Lens: [email protected]
Iris: Fixed
Field of View (H): 88.2°
Field of View (V): 47.6°
Field of View (D): 104.0°
DORI
DORI Distance:
| Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.0 | 62.1 | 24.8 | 12.4 | 6.2 |
| 3.0 | 93.1 | 37.2 | 18.6 | 9.3 |
Illuminator
LED Range: Up to 50m (164 ft)
LED On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264
Frame Rate:
Main Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream:2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; 640*360,Max 30fps;
U-code: Support
OSD: Up to 4 OSDs
ROI: Up to 8 areas
Video Stream: Dual streams
White Balance: Manual/Auto
Digital noise reduction: 2D/3D DNR
Gain: Auto / Manual
HLC: Support
Events
Basic Detection: Human body detection, Motion detection, Audio detection
Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8KHZ
Network
Protocols: IPv4,TCP,UDP,DHCP,RTP,RTSP,DNS,DDNS,NTP,UPnP,HTTP,RTCP,RTMP,IGMP,ICMP
Compatible Integration: ONVIF, API
Interface
Audio I/O: N/A
Alarm I/O: N/A
RS485: N/A
Built-in Mic: Support
Built-in Speaker: Support
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A
Certifications
Protection: IP67 (IEC 60529)
General
Power:
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 6.0W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (L × W × H): 225 × 111 × 134mm (8.9” × 4.3” × 5.3”)
Weight: 0.49kg (1.08lb)
Material: Graphene + Plastic
Surge Protection: 4KV
