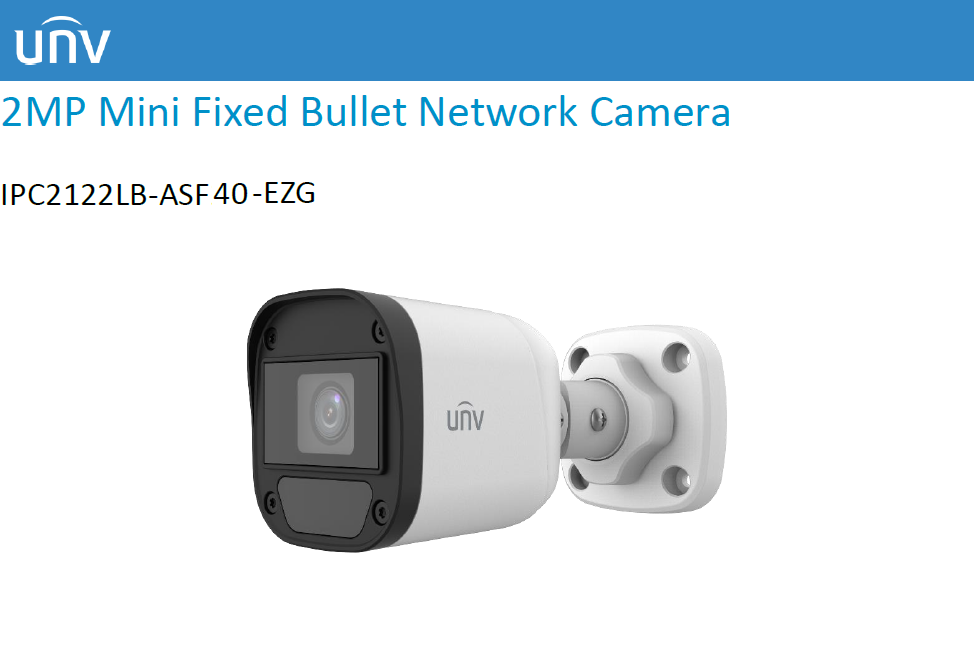

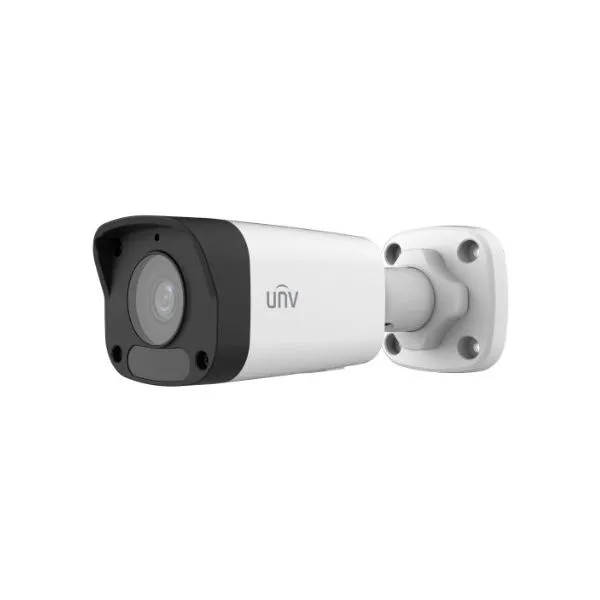

UNV IPC2122LB-ASF40-EZG 2.0MP/4MM/30M IR/BUILT IN MIC/ MINI FIXED BULLET IP CAMERA

Out of Stock

Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination:

Colour: 0.02Lux (F2.0, AGC ON)

0Lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

IP Camera

Quantity:

Description
Specification

• High quality image with 2MP,1/2.8’’ CMOS sensor

• 2MP(1920*1080)@25fps;720P (1280*720) @25fps

• Ultra 265, H.265, H.264

• 2D/3D DNR (Digital Noise Reduction)

• ROI (Region of Interest)

• ONVIF Conformance

• Smart IR, up to 30m (98ft) IR distance

• 3-Axis

• Built-in Mic

• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

• DC12V or PoE(IEEE 802.3af) power supply

• IP67

Camera

Sensor: 1/2.8", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination:

Colour: 0.02Lux (F2.0, AGC ON)

0Lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment angle:

Pan: 0° ~ 360°

Tilt: 0° ~ 90° R

Rotate: 0° ~ 360°

WDR: DWDR

S/N: >52dB

Lens

Lens Type: [email protected]

Iris: Fixed

Field of View (H): 87.5°

Field of View (V): 46.3°

Field of View (D): 92.4°

DORI

DORI Distance

Lens	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
2.8mm	43.4	17.4	8.7	4.3
4.0mm	62.1	24.8	12.4	6.2

Illuminator

IR Range: Up to 30m (98 ft) IR range

Wavelength: 850nm

IR On/Off: Control Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264

H.264 code profile: Baseline profile, Main profile, High profile

Frame Rate:

Main Stream: 1080P (1920*1080), Max 25fps; 720P (1280*720), Max 25fps;

Sub Stream: D1 (720*576), Max 25fps; 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps;

Video Bit Rate: 128 Kbps~6 Mbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Up to 8 areas

Video stream: Dual streams


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal/Vertical/Horizontal/180°

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital Defog

Events

Basic Detection: Motion detection, Audio detection

General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Support

Sampling Rate: 8KHZ

Network

Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, QoS , RTMP

Compatible Integration: ONVIF (Profile S, Profile T), API

User/Host: Up to 32 users. 2 user levels: administrator and common user

Client:

UNV-Link

UNV-Link Pro

EZStation

Web Browser: Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O: N/A

Alarm I/O: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 * RJ45 10M/100M Base-TX Ethernet

Video Output: N/A

Certifications

EMC:

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

RF:

FCC ID (FCC CFR 47 part15 C)

CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)

Safety: CE LVD (EN 62368-1)

Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) Protection: IP67 (IEC 60529)

General

Power:

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 3.5W

Dimensions (L × W × H): 144 × 60 × 65mm (5.6” × 2.4” × 2.6”)

Weight: 0.17kg (0.37lb)

Working Environment: -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment: -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Surge Protection: 4KV

Reset Button: N/A
