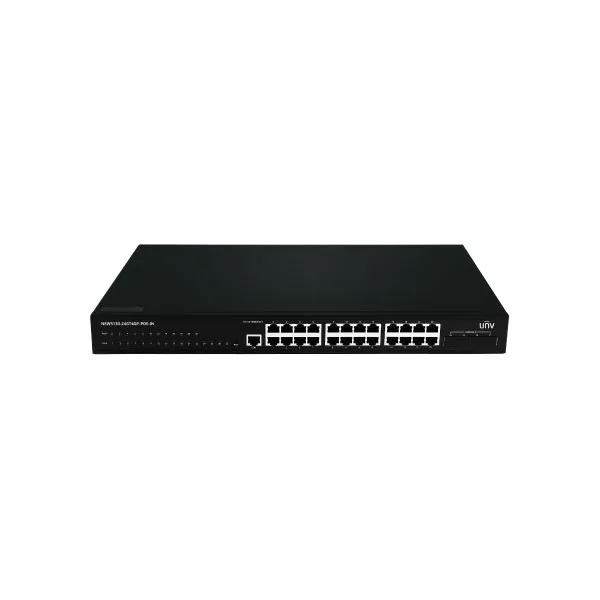

Uniview NSW5130-24GT4GP-POE-IN 24-Port Managed PoE Switch with SFP Uplink

Ask For Price

Ports Type:

24*10/100/1000Mbps RJ45 PoE port

4*1000Mbps SFP port

Switching capacity: 56Gbps

Forwarding performance: 41.66Mpps

Price - 158000 tk

Model: NSW5130-24GT4GP-POE-IN

Ports Type:

24*10/100/1000Mbps RJ45 PoE port,

4*1000Mbps SFP port

Switching capacity: 56Gbps

Forwarding performance: 41.66Mpps

MAC: 16K

Max.PoE Power:

Maximum total power: 370W, Maximum PoE power for single port: 30W

Max.Power: 22W (excluding POE)

Power Supply: AC: 100 to 240V, 50/60Hz

Cooling Fans: 2

Indicator: PWR, RUN, POE, LINK/ACT

Dimensions 440×208×44

Weight: 3kg

Operating Temperature: 0℃ to 45℃

Operating Humidity: 5% to 95%, non-condensing

MAC (Software):

Support static, dynamic, black hole MAC entries,

Support source MAC address filtering

Ethernet: Support port aggregation, port mirroring, RSPAN, port isolation, port traffic identification

VLAN:

Support 4K 802.1Q VLAN

Support VLAN based on MAC/IP subnet/authentication policy/interface VLAN

Support GVRP

Support QinQ
