Uniview

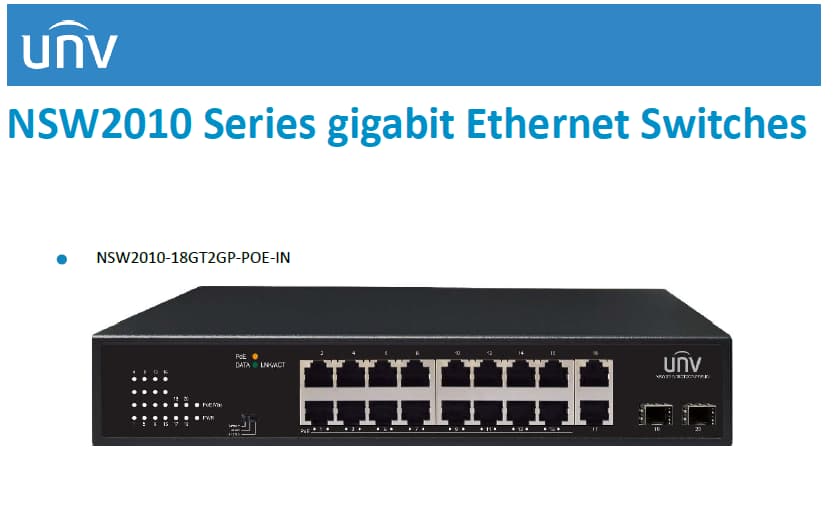

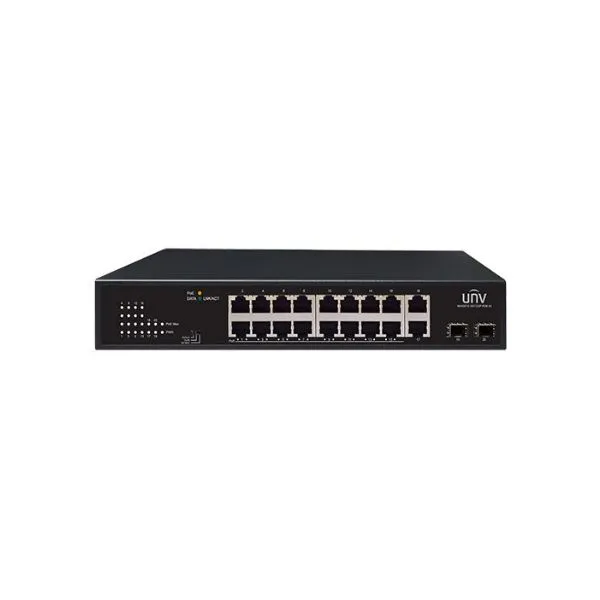

Uniview NSW2010-18GT2GP-POE-IN 16-PORT GIGA PoE UNMANAGED SWITCH WITH 2 GIGA COMBO PORTS

16500

Switching capacity: 40Gbps

Forwarding performance: 29.76Mpps

Packet Buffer: 4M bit

MAC: 8K

Quantity:

•Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)

•Supports PoE Power up to 30W for each PoE port;

•Auto detect power device; will not burned non-standard PoE device or normal PoE switch;

•Supports port power supply prioritization, guarantee the continuous power supply of key nodes;

•Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;

•Line-speed forwarding, intelligent identification

•Supports storage – and- forward for Data exchange;

•Support RJ45 Auto-MDI/MDIX

Model: NSW2010-18GT2GP-POE-IN

Ports: 16×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（SFP）

Standards: IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az

Switching capacity: 40Gbps

Forwarding performance: 29.76Mpps

Packet Buffer: 4M bit

MAC: 8K

Dimensions (W×D×H): 280mm x 180mm x 44mm (11"×7.1"×1.7")

Weight: <4.2kg

Input Voltage: AC: 100-240V, 50/60Hz

MAX. Power: 200W

PoE: 802.3at/af，Mode A：1/2+，3/6-

Max. PoE Power: Max capacity: 185W, Max capacity for single port: 30W

Cooling Fans: 1

Operating Temperature: 0°C ~ 40 °C

Storage Temperature: -40 °C ~ 70 °C

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

Indicator: PWR(Green), LNK/ACT(Green), PoE(Orange)

Working Mode:

Default(Normal mode) : All ports can communicate with each other.

VLAN(Secure mode): Downlink ports can communicate only with uplink ports.

EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
