Key features
• Multicell with up to 1,000 bases in a cluster
• Up to 4,000 handsets in a cluster
• Wireless software updates for handsets
• TLS encryption
BASICS
Product information

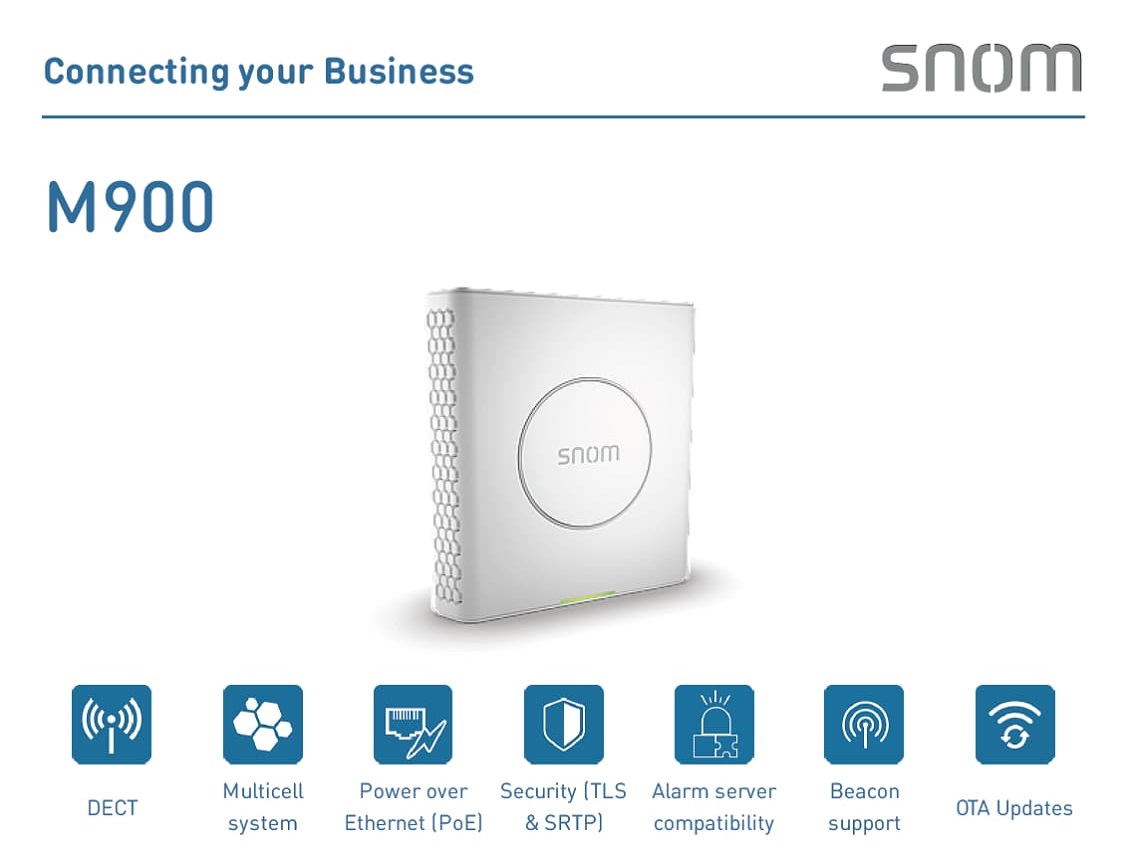

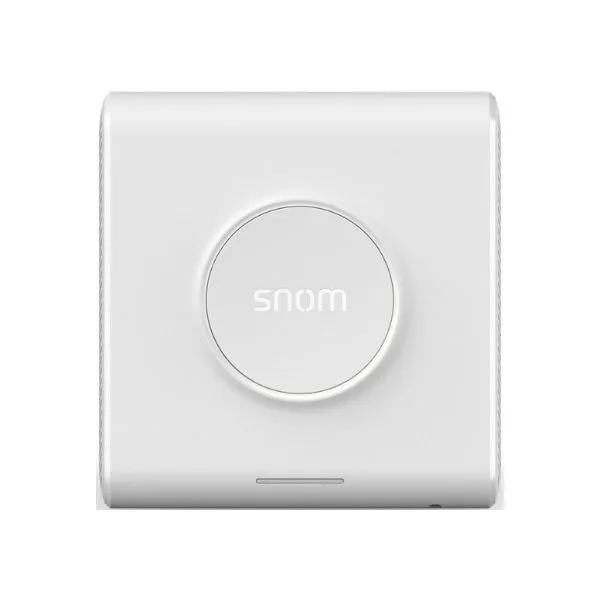

• DECT multicell base station
• Colour: white
Placement: indoor, wall mounting, ceiling mounting
Antenna diversity: 2 internal omni-directional antennas
DIMENSIONS AND WEIGHT
Dimensions (L x W x D, approx.)
• 144 mm × 140 mm × 35 mm
Weight (approx.)
• 306 g
INDICATORS AND KEYS
1 multicolour LED Multi-purpose status indication
1 dedicated function key: Reset
AUDI CODECS AND FEATURES
Audio codecs
• G.711 (A-law, μ-law), G.722 (5/4), G.726 (10/8)
• G.729 (10/8)³, BV32 (10/8)³, Opus (8)³
Codec negotiation
Codec switching
INTERFACES AND CONNECTIONS
Power options
• Power over Ethernet (PoE)
• IEEE 802.3af, class 2
• Power adapter²
• 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W
Wired interfaces
• Power adapter: coaxial power connector (socket)
• Ethernet 10/100 Mbit/s: RJ45-8P8C socket
Wireless interfaces
• DECT⁴
USER INTERFACE AND SETUP
Configuration and setup via menu-driven web user interface (WUI)
Automatic configuration via provisioning
• Loading of settings and firmware via HTTP, HTTPS, TFTP
• Secure provisioning with preinstalled certificate
Localization
• Languages
• Time zone, dial tone
Related features
• Compatible handset feature RSSI tool, no additional measurement equipment needed
• List of registered mobile handsets
NETWORKING TECHNOLOGIES AND PROTOCOLS
Network technologies
• VLAN (IEEE 802.1q)
Network protocols
• DHCP, NTP, LLDP-MED, HTTP, LDAP
Secure network protocols
• TLS V1.2, HTTPS
DIRECTORY SUPPORT
Local directory with up to 3,000 entries
LDAP (server-based directory)
XML phonebook support
DECT TECHNOLOGY AND FEATURE
Standard: DECT⁴
• Authentication/encryption of base and handset
• Seamless handover and roaming using DECT or LAN sychronisation (IEEE1588)
• Wideband audio
Frequency band
• Europe: 1,880 - 1,900 MHz
• USA: 1,920 - 1,930 MHz
Output power
• Europe: < 250 mW
• USA: < 100 mW
Coverage
• Up to 50 m indoor range
• Up to 300 m outdoor range
Multicell installation
• Handsets: up to 4,000¹
• Base stations: up to 1,000¹
• Repeaters: up to 100
• Narrowband calls: up to 8
• Wideband calls: up to ⁴
Single-cell installation
• Narrowband calls: up to 10
• Wideband calls: up to 5
Related features
• Software upgrade over the air (SUOTA)
• Alarm server compatibility
• Beacon support
ENVIRONMENTAL CONDITIONS
Operating ambient temperature: -10 °C - +50 °C
¹up to 16,000 registered handsets and 4,000 base station with a future FW update
²If PoE is not available
³Enabled by DSP module A900
⁴DECT devices manufactured for the USA and Canada are marketed as DECT 6.0
