Snom

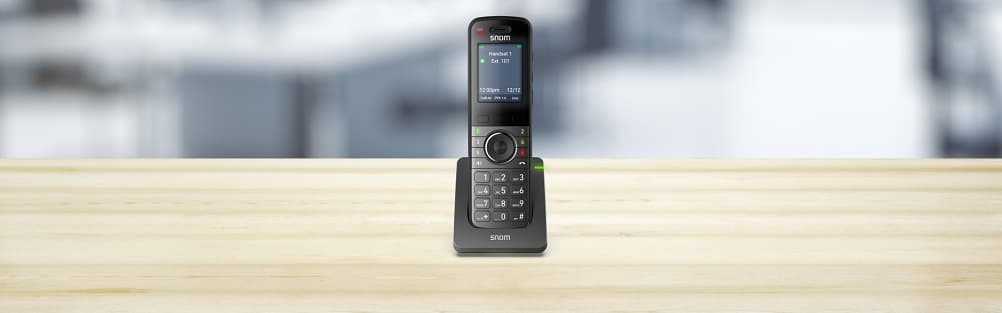

SNOM M55 DECT Phone with Cradle

17500

TFT liquid crystal display

31 hard keys

Battery 1,500 mAh, up to 240 h

2 Year Warranty

IP Phones

Description
Specification

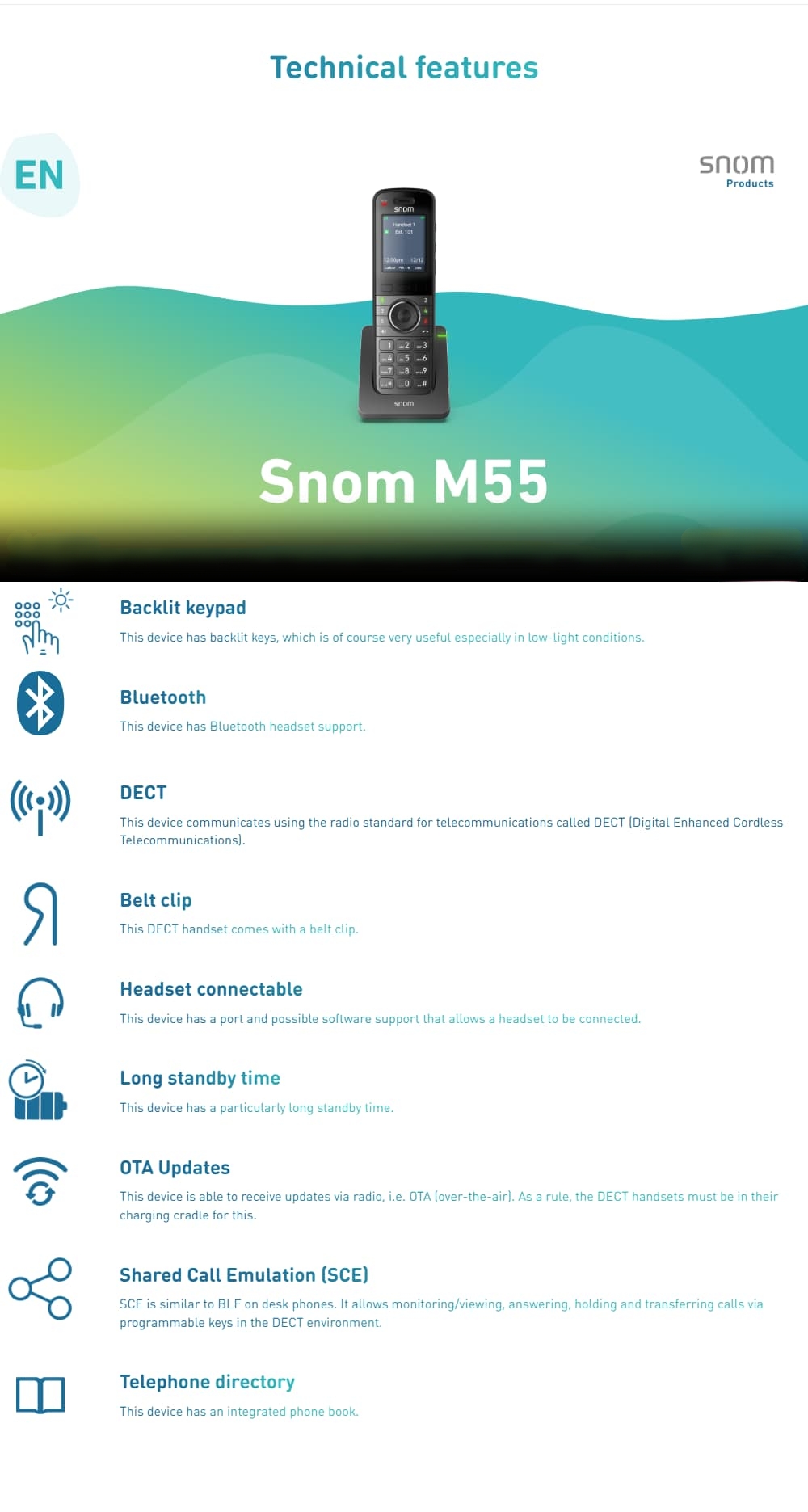

Key features

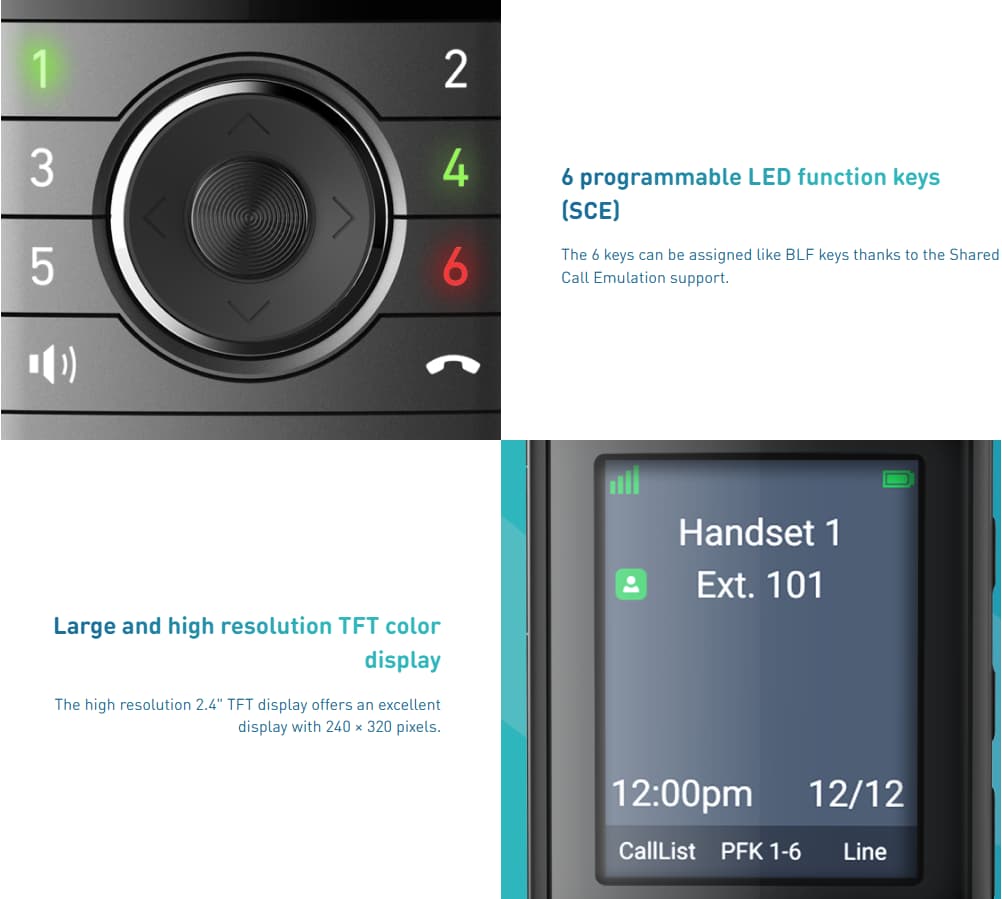

• Large 2.4" color display

• Support Shared Call Emulation (SCE)

• 6 programmable LED function keys

• Wireless software updates for handsets (OTA)

• Belt clip

BASICS

Product information

• DECT handset M55|Charging cradle

• Colour: black

• Anti-bacterial housing

Placement: indoor, desktop

DIMENSIONS AND WEIGHT

Dimensions (L x W x D, approx.)

• 188 mm × 55 mm × 35 mm

Weight (approx.)

• Handset & Battery & belt clip: 188 g

DISPLAY AND INDICATORS

Display

• TFT liquid crystal display (LCD), highcolour, backlit

• Size (diagonal): 2.4″ (61 mm)

• Resolution: 240 × 320 pixel

9 LED indicators

• Notification of missed calls|Message waiting indication (MWI): 1 red LED

• Function key status indication: 6 dual-colour LEDs (red / green)

• Audio key status indication: 1 red LED

• Charging indication: 1 red LED on the charging cradle

KEYPAD AND FUNCTION KEYS

31 hard keys in total

• 12 keys (standard ITU telephone keypad), backlit

• 5-way navigation key

• 3 context-sensitive function keys

• 6 programmable function keys (with dual-colour LED)

• 3 dedicated audio keys

• Speakerphone (with red LED)

• Volume + / - (rocker)

• 2 dedicated function keys

• Offhook

• Multicast paging

Keyboard lock

INTERFACES AND CONNECTIONS

Power options

• Handset

• Battery 3.7 V, 1,500 mAh, 5.55 W, lithium-ion, rechargeable, up to 240 h standby time, up to 19 h narrowband talk time, up to 12 h wideband talk time

• Charging cradle

• Power adapter: 100 - 240 V AC / 50 - 60 Hz / 300 mA | 5 V DC / 2 A

• USB powering via USB-A port/cable

Wired interfaces

• Headset: 3.5 mm miniature audio jack

Wireless interfaces

• DECT3

• Headset (Bluetooth): Bluetooth

AUDIO FEATURES

Handset

• Hearing aid compatible (HAC)

USER INTERFACES AND SETUP

Configuration and setup via menu-driven phone user interface (PUI)

• Languages: English, French, Italian, Spanish, German, Dutch, Greek, Russian.

Localization

• Time zone, dial tone

DIRECTORY SUPPORT AND CALL FEATURES

Directory support

• Local directory with up to 200 entries

• LDAP (server-based directory)¹

• Central directory on the base station with up to 500 shared entries¹

• XML phonebook support¹

Outgoing call features

• Speed dialling

• Redial (via dialed calls list)

• Caller identification (CLIP)

• Intercom¹

• Multicast paging¹

Incoming call features

• Call waiting/swapping

• Auto answer

• Call diversion

Connected call features

• Hold

• Blind call transfer

• Attended call transfer

• 2+1 local conferencing

• Call barging¹

• Call park / unpark¹

Related features

• Call history lists

• Shared Call Emulation²

• Extension monitoring (Busy lamp field), call pickup¹

• Paging zones¹

• Intercom groups¹

DECT TECHNOLOGY AND FEATURES

Standard: DECT³

• Authentication/encryption of base and handset

• Seamless handover

• Wideband audio

Frequency band

• Europe: 1,880 - 1,900 MHz

• Americas 1,920 - 1,930 MHz

Output power

• Europe: < 250 mW

• Americas: < 100 mW

Coverage

• Up to 50 m indoor range

• Up to 300 m outdoor range

Related features

• Software upgrade over the air (SUOTA)

• Auto registration when not registered

• Date and time synchronization from base station

NETWORK TECHNOLOGIES

Bluetooth

• Headset Profile (HSP)

• Wireless range (approx.): 10 m

ENVIRONMENTAL CONDITIONS

Operating ambient temperature

• 0 °C - +40 °C

¹

Function only available when paired to the M500

²Shared Call Emulation: Snom's unique PBX feature emulation for line, hold/unhold and call pick-up

³DECT devices manufactured for the USA and Canada are marketed as DECT 6.0
