Snom

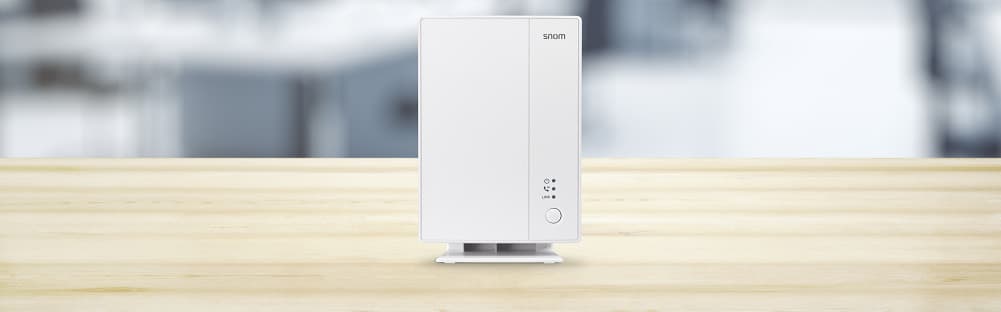

SNOM M500 IP PHONE DECT BASE STATION
Ask For Price
Dual cell with up to 2 bases possible
Up to 10/8 handsets single / dual cell base
Up to 8 simultaneous calls (NB)
2 Year Warranty
IP Phones
Key features
• Dual cell with up to 2 bases possible
• Up to 10/8 handsets single / dual cell base
• Up to 8 simultaneous calls (NB)
• Wireless software updates for handsets (OTA)
BASICS
Product information
• DECT dual-cell base station
• Placement: indoor, desktop, wall mounting
DIMENSIONS AND WEIGHT
Dimensions (H × W × D, approx.)
• 175 mm × 123 mm × 38 mm without footstand
• 189 mm × 123 mm × 70 mm with footstand
Weight (approx.)
• 307 g
INDICATORS AND KEYS
3 LED indicators
• DECT status indication: 1 dual-colour LED
• VoIP status indication: 1 dual-colour LED
• Power status indication: 1green LED
2 dedicated function keys
• Reset
• DECT pairing|DECT locator
AUDIO CODECS AND FEATURES
Audio codecs: G.711 (A-law, μ-law), G.722, G.726, G.729ab, Opus, iLBC
INTERFACE AND CONNECTIONS
Power options
• Power over Ethernet (PoE): IEEE 802.3af, class 2
Wired interfaces
• Network connectivity: 2 × RJ45-8P8C sockets¹ → Ethernet 10/100 Mbit/s:
Wireless interfaces
• DECT²
DECT TECHNOLOGY AND FEATURES
Standard: DECT²
• Authentication/encryption of base and handset
• Seamless handover
• Wideband audio
Frequency band
• Europe: 1,880 - 1,900 MHz
• USA: 1,920 - 1,930 MHz
Output power
• Europe: < 250 mW
• USA: < 100 mW
Coverage
• Up to 50 m indoor range
• Up to 300 m outdoor range
Single-cell installation
• Handsets: up to 10
• Narrowband calls: up to 8
• Wideband calls: up to 4
Dual-cell installation
• Handsets: up to 16
• Narrowband calls: up to 16
• Wideband calls: up to 8
Software upgrade over the air (SUOTA)
USER INTERFACES AND SETUP
Configuration and setup via menu-driven web user interface (WUI)
• Languages: English, French, Spanish, Italian, German, Dutch, Greek, Russian
Automatic configuration via provisioning
• Loading of settings and firmware via HTTP, HTTPS, TFTP
• Zero-Touch provisioning and authentication with Mutual TLS through individual certificate issued by Snom CA
Localization
• Time zone, dial tone
NETWORKING TECHNOLOGIES AND PROTOCOLS
Network technologies
• VLAN (IEEE 802.1q)
Secure VoIP protocols
• SIPS (SIP over TLS), SRTP
Network protocols
• DHCP, NTP, LDAP, LLDP-MED, HTTP
Secure network protocols
• TLS V1.2, HTTPS
DIRECTORY SUPPORT AND CALL FEATURES
Up to 48 SIP identities / accounts
Directory support
• LDAP (server-based directory)
• Central directory on the base station with up to 500 shared entries
• XML phonebook support EU / Americas
Related features
• Shared Call Emulation³
• Paging zones
• Intercom groups
ENVIRONMENTAL CONDITIONS
Operating ambient temperature
• 0 °C - +40 °C
¹port reserved for dual-cell setup
²DECT devices manufactured for the USA and Canada are marketed as DECT 6.0
³Shared Call Emulation: Snom's unique PBX feature emulation for line, hold/unhold and call pick-up
