Snom

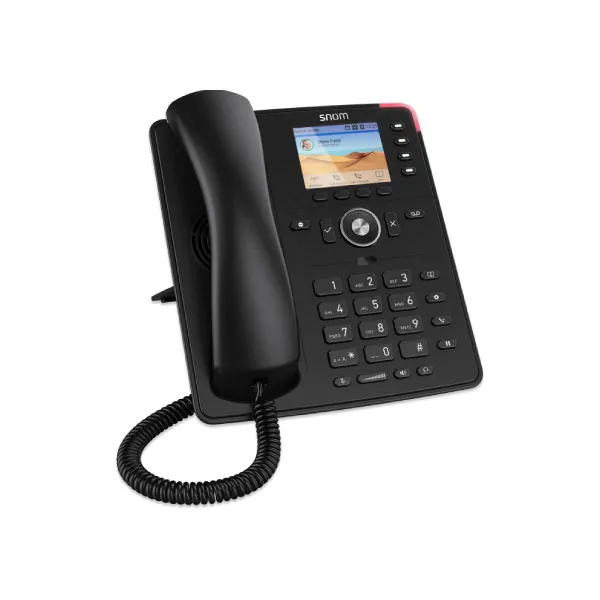

Snom D713 Desk phone

9800

SIP Identity/Account : 6

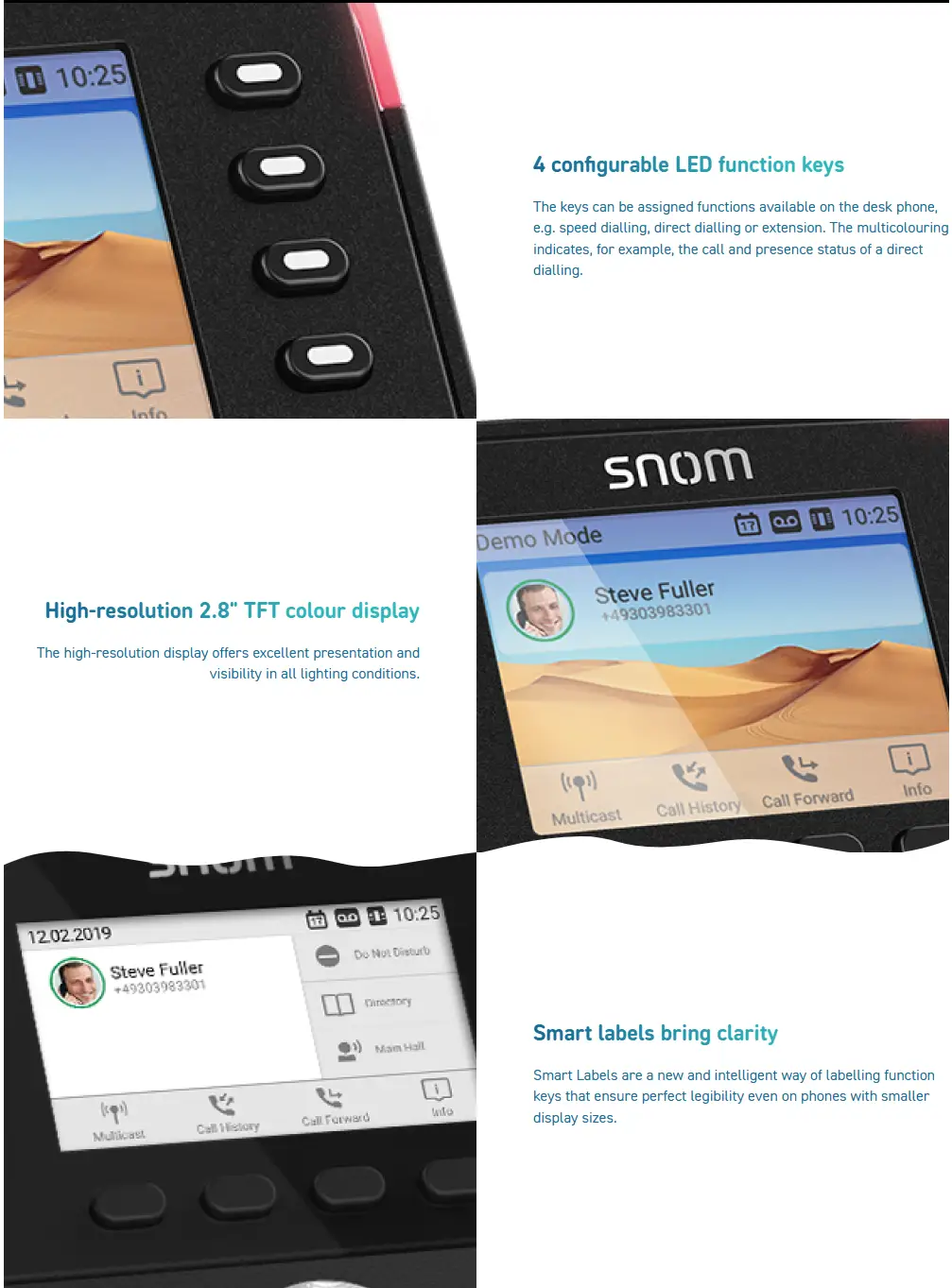

2.8″ TFT liquid crystal high color backlit display

4 freely programmable function keys

2 Year Warranty

IP Phones

Description
Specification

Basics

Product information

• IP desk phone D713|black|PN 00004582

• Operating system: Linux

• Placement: indoor, desktop, wall mounting

Dimensions and weight

Dimensions (L × W × H, approx.) without foot stand

• 205 mm × 185 mm × 40 mm

Dimensions (H x W x D, approx.) with foot stand

• 205 mm × 185 mm × 220 mm (high angle 46°)

• 205 mm × 185 mm × 200 mm (low angle 28°)

Weight (approx.)

• 710 g without foo tstand

• 830 g with foot stand

Display and Indicators

Display

• TFT liquid crystal display (LCD): graphical, high color, backlit

• Size (diagonal): 2.8″ (67 mm)

• Size (W × H): 59 mm × 33 mm

• Resolution: 320 × 240 pixel

5 LED indicators

• Call status indication: 1 red LED

• Function key status indication: 4 multicolor LEDs

Keypad and Function Keys

38 hard keys in total

• 12 keys (standard ITU telephone keypad)

• 4 context-sensitive function keys

• 5-way navigation key

• 4 Smart Label keys (with multicolor LED)

• 5 dedicated audio keys

◦ Mute

◦ Speakerphone

◦ Headset

◦ Volume + / - (rocker)

• 8 dedicated function keys

◦ Ok

◦ Cancel

◦ DND

◦ Message (with red LED)

◦ Directory

◦ Menu

◦ Transfer

◦ Hold

◦ Keyboard lock

Audio Devices, Codecs and features

Casing microphone | Casing speaker

• Speakerphone mode: Full duplex, Acoustic echo cancellation (AEC)

Corded handset

• Microphone | Handset earpiece

• Hearing aid compatible (HAC)

Audio codecs

• G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR), Opus

Dual-tone multi-frequency signaling (DTMF / RFC2833)

• SIP-INFO

• in-band

• out-of-band

Related features

• Built-in assignable ringtones

• Comfort Noise Generator (CNG)

• Voice Activity Detection (VAD)

Interfaces and connections

Power options

• Power over Ethernet (PoE)

◦ IEEE 802.3af, class 3|IEEE 802.3az³

• Power adapter¹

◦ 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

• Power adapter:¹ coaxial power connector (socket)

• Network connectivity: RJ45-8P8C socket → Gigabit Ethernet (GbE)

• Corded handset: RJ9-4P4C socket

• Headset:¹ RJ9-4P4C socket

• EHS adapter:¹ RJ12-6P6C (EHS) socket

Sensors

• Hook switch sensor

User Interfaces and Setup

Configuration and setup via menu-driven web user interface (WUI)

• Password-protected login

• Secure web server/client (HTTPS)

Configuration and setup via menu-driven phone user interface (PUI)

Customization: XML browser

Automatic configuration via provisioning

• Loading of settings and firmware via HTTP, HTTPS, TFTP

• Supported DHCP provisioning options 66 / 67

• Secure Redirection And Provisioning Service (SRAPS) support

• Plug & Play (PnP) support

• Remote management via TR-069 / TR-069 Annex G (TR-111)

Localization

• Languages

• Time zone, dial tone

Diagnostic

• SIP / PCAP trace

• Syslog

Network Technologies and Protocols

Network technologies

• OpenVPN, VLAN (IEEE 802.1q)

VoIP related protocols and techniques

• SIP, SDP, RTP, RTCP, RTCP-XR, SIP REFER method (RFC 3515), rport (RFC 3581), ENUM, ICE, STUN

Secure VoIP protocols

• SIPS (SIP over TLS), SRTP, SRTCP

Network protocols

• IPv4 / IPv6 (dual stack), DHCP, NTP, LDAP, LLDP-MED, HTTP, TFTP, L2TP

Secure network protocols

• TLS V1.2, HTTPS, IEEE 802.1X (EAPoL)

Remote management protocols

• TR-069, TR-069 Annex G (formerly TR-111)

Directory Support and Call Features

6 SIP identities / accounts

• Up to 6 simultaneous calls

Directory support

• LDAP (server-based directory)

• Local directory with up to 1,000 entries

Outgoing call features

• Speed dialing via function keys

• URL dialing

• Local dial plan

• Redial (via dialed calls list)

• Automatic redial on busy

• Caller identification (CLIP)

• Calling Line Identification Restriction (CLIR)

• Call completion (busy/unreachable)2

• Intercom

• Multicast paging

Incoming call features

• Call waiting/swapping

• Call barring/blocking: deny list, anonymous calls, Do Not Disturb (DND) mode

• Auto answer

• Call diversion

Connected call features

• Mute microphone

• Hold

• Music on hold²

• Blind call transfer

• Attended call transfer

• 3-way local conferencing

• Call park / unpark²

• Client Matter Code (CMC)²

Related features

• Call history lists of missed, received, dialed, rejected, and deflected calls

• Extension monitoring (Busy lamp field), call pickup²

Interoperability

Certified VoIP partner

Environmental Conditions

Operating ambient temperature:
• 0 °C - +35 °C

Nonoperating (storage) temperature:

• -10 °C - +45 °C

Humidity (non-condensing):

• 5 % - 95 %

¹Available separately

²If supported by PBX

³Optional via software
