Tk
4500
Product code: RBcAPL-2nD
Architecture: MIPSBE
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz

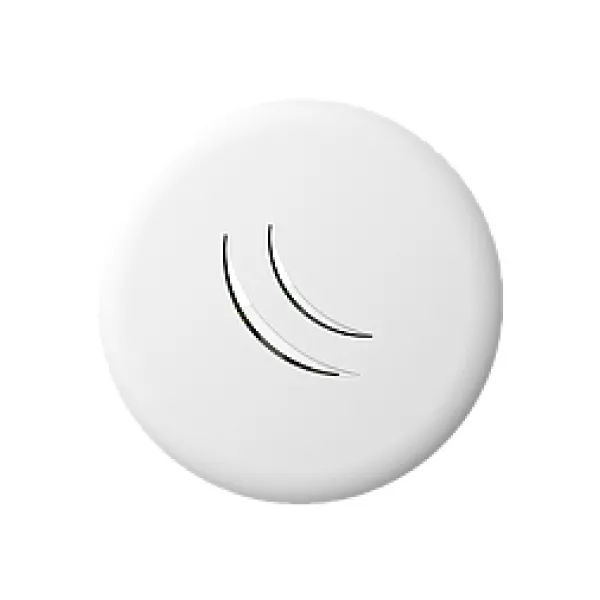

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files.
The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.
Specifications
Details
Product code: RBcAPL-2nD
Architecture: MIPSBE
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 1.5
Wireless 2.4 GHz chip model: QCA9533
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports: 1
Powering
Details
MicroUSB input Voltage: 5 V
Number of DC inputs: 2 (PoE-IN, MicroUSB)
Max power consumption: 4 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 10-60 V
Certification & Approvals
Details
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
