Tk
6800
1core QCA9533 650MHz CPU
64MB of RAM
RouterOS L4
One x 10/100 Mbps LAN Ethernet ports (PoE-IN);
Injector Included

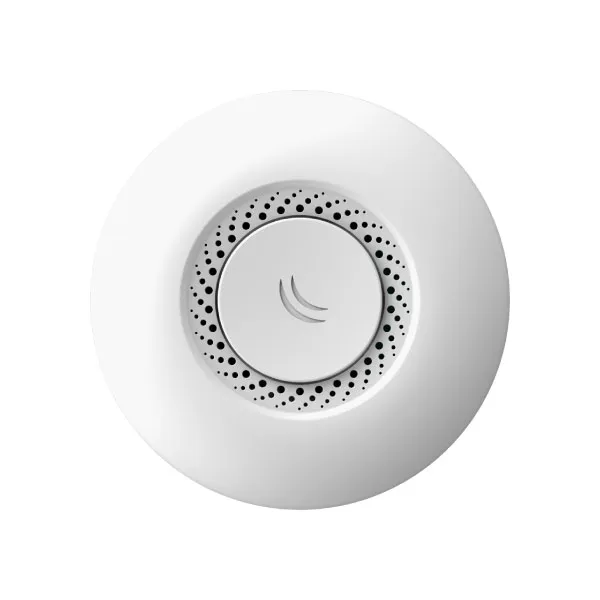

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect
for hospitality business like hotels, airports, shopping malls etc.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you
to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network.
No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
Specifications
Details
Product code: RBcAP2nD
Architecture: MIPSBE
CPU: QCA9533
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 185mm diameter, 31mm height
RouterOS license: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Wireless capabilities
Details
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2
Wireless 2.4 GHz chip model: QCA9533
Wireless 2.4 GHz generation: Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports
Powering
Details
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 4 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 11-57 V
Certification & Approvals
Details
Certification: CE, FCC, IC, EAC, ROHS
IP: IP20
Other
Details
Mode button: Yes
Wireless specifications
2.4 GHz; 1MBit/s: Transmit (dBm): 22, Receive Sensitivity: -96
2.4 GHz; 11MBit/s: Transmit (dBm): 22, Receive Sensitivity: -89
2.4 GHz; 6MBit/s: Transmit (dBm): 20, Receive Sensitivity: -93
2.4 GHz; 54MBit/s: Transmit (dBm): 18, Receive Sensitivity: -74
2.4 GHz; MCS0: Transmit (dBm): 20, Receive Sensitivity: -93
2.4 GHz; MCS7: Transmit (dBm): 16, Receive Sensitivity: -71
