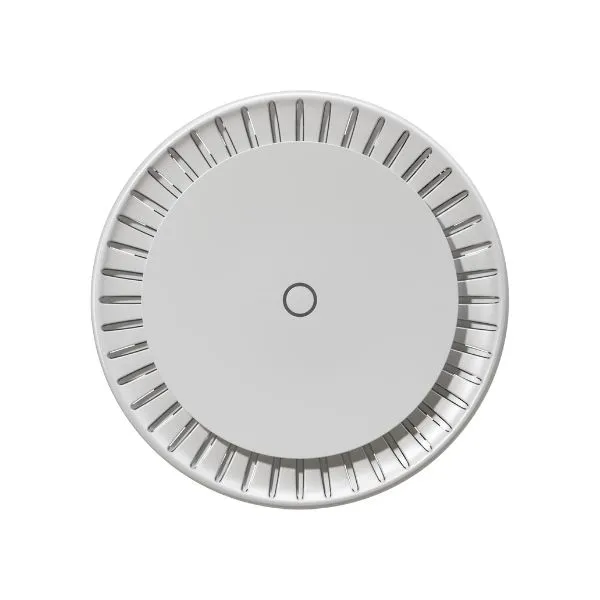

Mikrotik cAPGi-5HaxD2HaxD (cAP ax) RouterBOARD Dual-band 2.4/5GHz wireless Access Point
Out Of Stock
4 core IPQ-6010 auto (864 - 1800) MHz CPU
1GB of RAM
RouterOS v7
Two x 10/100/1000 Mbps LAN (One PoE IN; One PoE OUT) Ethernet ports
Mikrotik AP
Specifications
Product name: cAPGi-5HaxD2HaxD
Architecture: ARM 64bit
CPU: IPQ-6010
CPU core count: 4
CPU nominal frequency: auto (864 - 1800) MHz
Switch chip model: IPQ-6010
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Wireless capabilities
Wireless 2.4 GHz Max data rate: 574 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz: 6
Wireless 2.4 GHz chip model: QCN-5022
Wireless 2.4 GHz generation: Wi-Fi 6
Wireless 5 GHz Max data rate: 1200 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz: 5.5
Wireless 5 GHz chip model: QCN-5052
Wireless 5 GHz generation: Wi-Fi 6
WiFi speed: AX1800
Ethernet
10/100/1000 Ethernet ports: 2
Number of 1G Ethernet ports with PoE-out: 1
Powering
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 18-57 V
Max power consumption: 36 W
Max power consumption without attachments: 11 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 18-57 V
PoE-out
PoE-out ports: Ether2
PoE out: Passive PoE up to 57V
Max out per port output (input 18-30 V): 600 mA
Max out per port output (input 30-57 V): 400 mA
Max total out (A): 600 mA
Total output current: 0.4
Total output power: 19.2
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: 20
Other
CPU temperature monitor: Yes
Mode button: Yes
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
| 1MBit/s | 23 | -100 |
| 11MBit/s | 23 | -94 |
| 6MBit/s | 24 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 17 | -67 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 24 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 17 | -67 |
