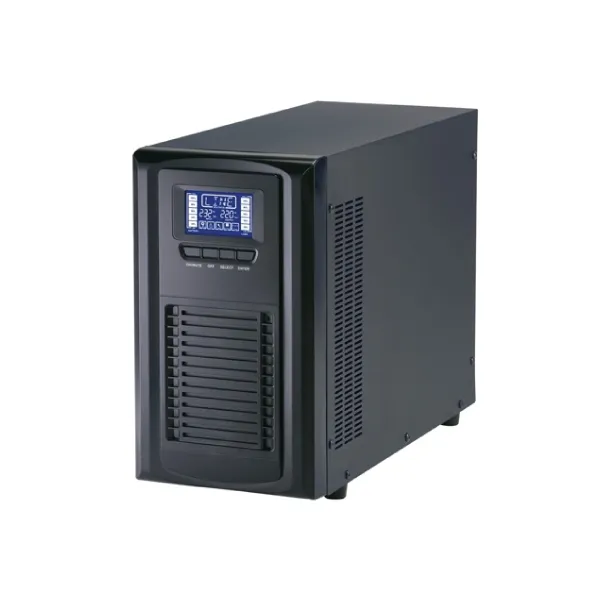

IDEAL-9203LB 3KVA/2700W TRUE DOUBLE CONVERSION ONLINE UPS, 3-OUTLET WITH LED DISPLAY

Out Of Stock

High performance true double conversion On Line UPS 3KVA
Microprocessor control guarantees high reliability
Low heat dissipation in long time operation
Emergency power-off function (EPO)

UPS

Quantity:

Description
Specification
Downloads

• High performance true double conversion On Line UPS 3KVA
• Microprocessor control guarantees high reliability
• Low heat dissipation in long time operation
• Emergency power-off function (EPO)
• High efficiency mode (ECO mode)
• Output voltage regulation +/- 2%
• USB multiple communications
• Automatic self-testing function
• Power management software
• Output power factor 0.9
• Fan speed control
• Wide input range
• DC start

MODEL	IDEAL-9201LB		IDEAL-9202LB	IDEAL-9203LB
CAPACITY	1KVA/900W		2KVA/1800W	3KVA/2700W
INPUT
Voltage	1 Phase 2 Wires + Ground 220/230/240Vac
Voltage Range	100-300Vac
Frequency	50Hz or 60Hz (Auto-Sensing)
THDi	< 5% at full Load
OUTPUT
Voltage	220/230/240Vac
Voltage Regulation	+/- 2%
Frequency (Battery Mode)	50Hz or 60Hz +/- 0.05Hz
Waveform	Pure sinewave
THD	< 1% (Linear Load), < 5% (Non-linear Load)
Crest Ratio	3:1
EFFICIENCY
To Inverter Mode	> 88%	> 90%		> 90%
To ECO Mode	> 97%
BATTERY
Voltage	24VDC	48VDC		72VDC
Type	12V/9AH*2		12V/9AH*4	12V/9AH*6
Recharge Time	4Hrs to 90%
TRANSFER TIME
Line Mode to Battery Mode	0ms
Inverter to Bypass	< 4ms
DISPLAY
LCD Display	Input, Output, Load, Battery, Mode/Fault/Warning code, Inverter operating, Bypass operating, Output voltage and frequency and Bypass disable / enable selection information
AUDIBLE ALARM
Battery Mode	Beeps every 4 seconds
Battery Low	Sounding every second
Overload	Sounding twice every second
Fault	Continuously beeping
COMMUNICATIONS
Interface (Port)	USB Port
EPO	Emergency Power Off
ENVIRONMENT
Operating Temperature	0°C~40°C (32℉~104℉)
Humidity	20~90%, non-condensing
Acoustic Noise	< 40dB at 1M			< 50dB at 1M
PHYSICAL
Dimension(DWH)	355145220mm			405195330mm
