Specifications
• Interface: USB 3.2 Gen 2 Type-C (10Gbps)
• Input & Output (Pass-through): HDMI 2.1
• Max Pass-Through Resolution: 2160p144 HDR/VRR, 3440x1440p120 HDR/VRR, 1440p240 HDR/VRR, 1080p360 HDR/VRR
• Max Capture Resolution: 2160p144 (Windows*), 2160p60 (macOS)
• Supported Resolution: 2160p, 3440x1440p, 1440p, 2560x1080p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
• Video Format: YUY2, NV12, RGB24, P010(HDR), MJPEG
• Headset Audio Input & Output: 4-Pole 3.5mm Jack
• Gamepad Audio Input & Output: 4-Pole 3.5mm Jack

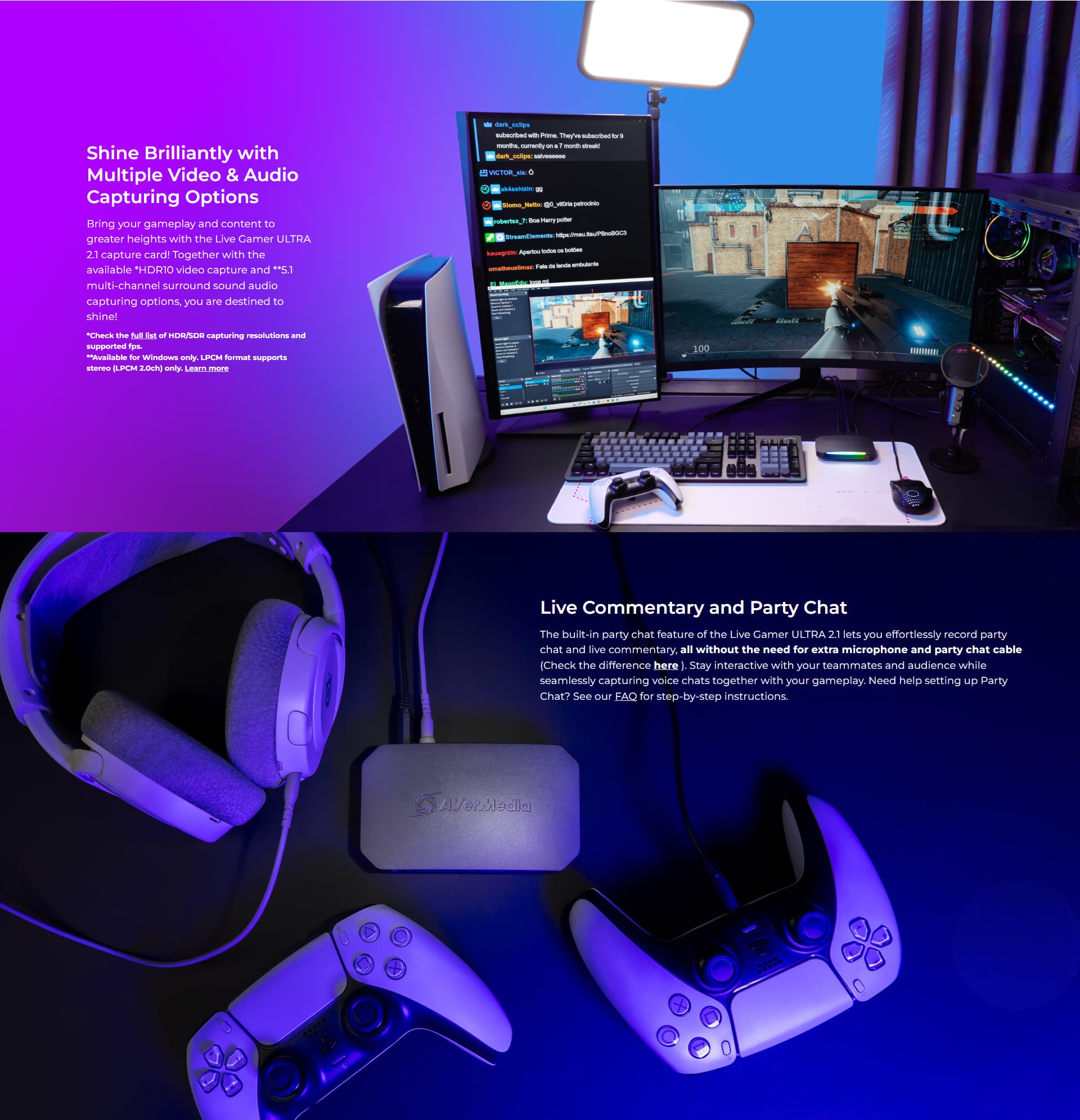

• Supports 5.1 multi-channel audio. LPCM format supports stereo (LPCM 2.0ch) only. Learn more
• Dimension (W x D x H): 120 x 70 x 27.6 mm (4.72 x 2.76 x 1.09 in.)
• Weight: 115 g (4.06 oz.)
note:

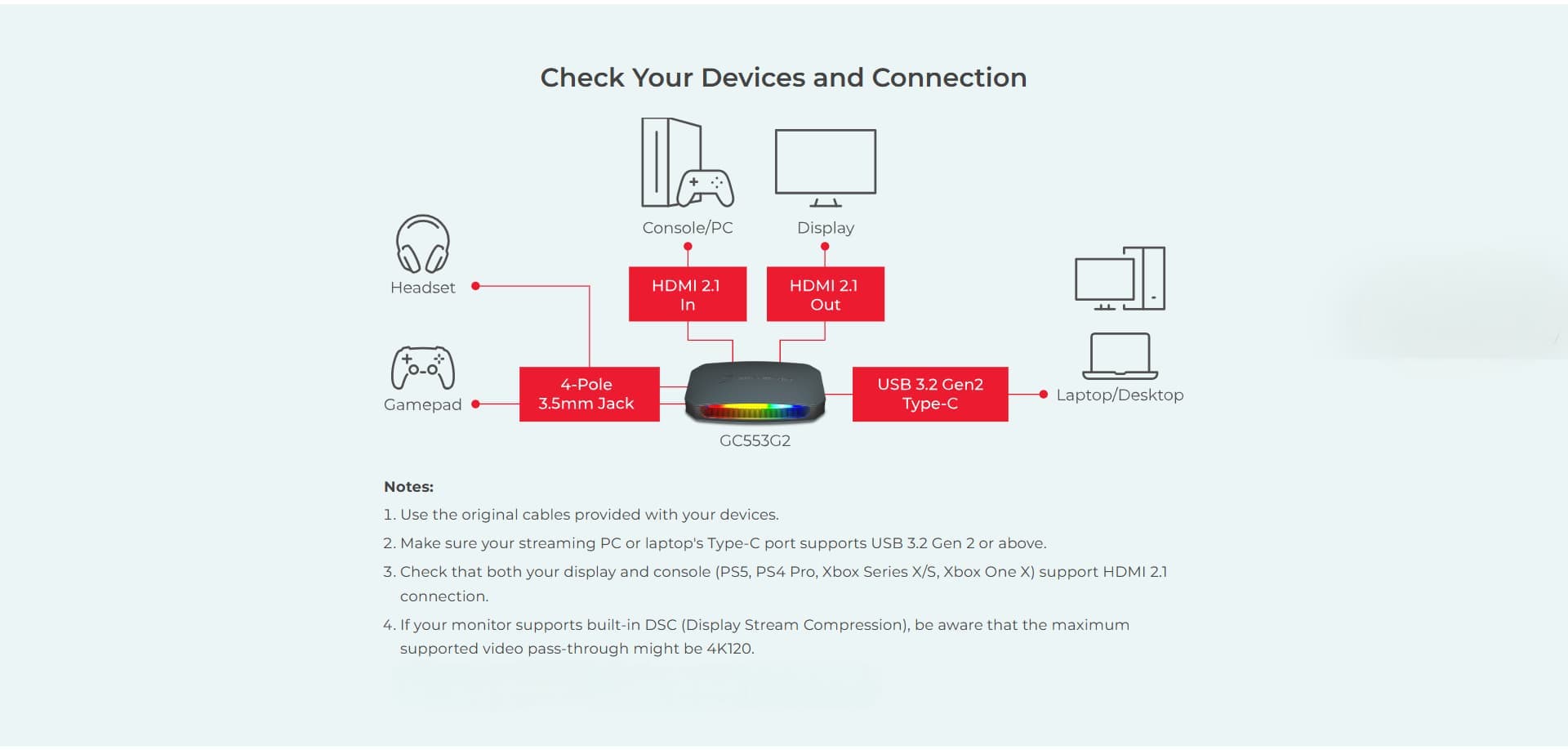

1. Ensure the Type-C port on your streaming PC or laptop supports USB 3.2 Gen 2 or above
2. Check that both your display and console (PS5, PS4 Pro, Xbox Series X/S, Xbox One X) support HDMI 2.1 connection
3. If your monitor supports built-in DSC (Display Stream Compression), be aware that the maximum supported video pass-through might be 4K120.
System Requirements
Windows® 10 x64 / 11 x64 or later
• Desktop: Intel® Core™ i5-6XXX / AMD Ryzen™ 3 XXX or above + NVIDIA® GeForce® GTX 1060 / AMD RX 5700 or above
• Laptop: Intel® Core™ i7-7700HQ + NVIDIA® GeForce® GTX 1050Ti or above
• 8 GB RAM recommended (Dual-channel)
• For 4K144 MJPEG capture: Intel® Core™ i5-12XXX or above + NVIDIA® GeForce® RTX 3060 or above + 16GB RAM
macOS 13 / 14 or later
• Apple M1 or 3.6 GHz quad-core Intel Core i7
• Apple M1 or Radeon Pro 555 with 2 GB of VRAM
• 16 GB of 2400 MHz DDR4 memory
Note:
1. For 4K60 MJPEG capture, requires M1 Ultra / M2 Ultra or above
2. HDR capture is not available for macOS.
iPadOS 17 or later
AVerMedia Supported Software
• AVerMedia Assist Central Pro
• AVerMedia Streaming Center (Windows only)
• AVerMedia Streaming Center Plug (OBS Plugin)
• Firmware update tool
