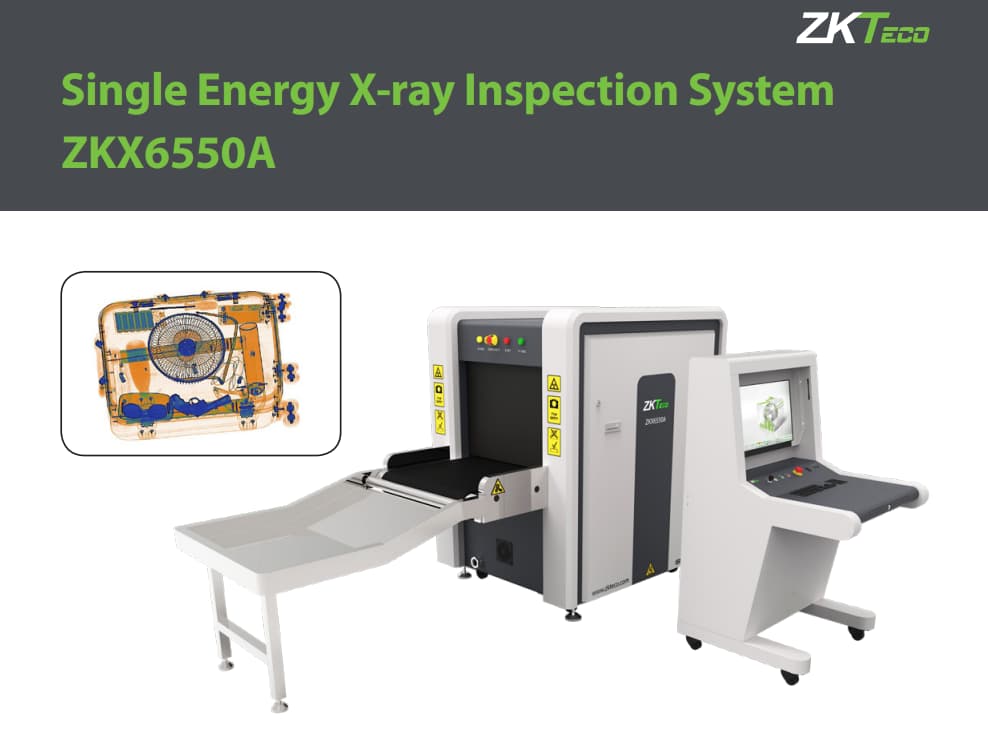

Single Energy X-ray Inspection System
Tunnel Size W655mm × H505mm
Speed 0.20 m/s
Maximum Load ≤180 kg (Adequate distribution)
Pseudo-color scanning image
Introduction

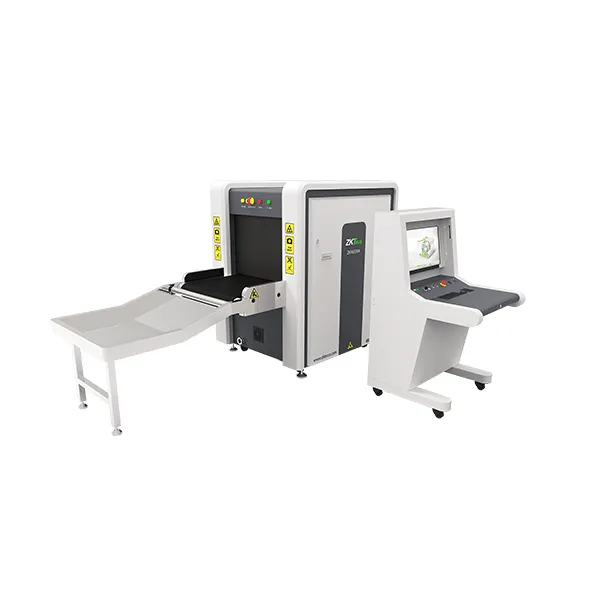

ZKX6550A is a single energy X-ray screening system that provides a highly economical visual inspection solution for carry-on luggage.
ZKX6550A uses reliable high quality X-ray generator. With the superb image algorithm, ZKX6550A could offer clear scanning image, which allows operators to identify potential threat items visually.
ZKX6550A has innovative biometric identify function for operators, improving the security of system and preventing operator from forgetting password.
With ergonomic modern design, ZKX6550A could help operators to identify suspicious items fast and accurately.
Highlights
Costs-effective
Pseudo-color scanning image
Innovative fingerprint identification
Widely usable for carry-on baggage
Standard
Fingerprint console board
Console desk
Bi-directional scanning
Optional
Video surveillance system
Face recognition
Gaze function
Rat expelling function
Specifications
Tunnel Size (W*H): 655*505 (mm)
Speed: 0.20 m/s
Height of Transmission Belt: 700 mm
Maximum Load: ≤180 kg (Adequate distribution)
Wire Resolution: 38AWG
Space Definition: Horizontal Φ1.0mm \ Vertical Φ2.0mm
Penetrate Definition: 34 AWG
Penetration: 10mm steel board
Monitor: 21.5 inch LED
System Function:
High density alert, Explosive/ Drug auxiliary detect,
TIP, Luggage counter, date/time display, User
management, Training.
Film Safety: ASA/ISO1600 standard of film safety
Supported Software: ZKBio SIS
Communication Interface: RJ45 (TCP/IP)
X-ray System
Tube Voltage: 80KV
Cooling: Seal oil cooling/ 100%
Single Inspection Dosage Rate: ≤1.0 μ Gy
Radiation Leak Dosage: 0.1 μ Gy/h (5cm from the surface)
Installation Specification
Size (L*W*H): 2120*980*1381 (mm)
Package Size (L*W*H): 2240*1170*1755 (mm)
Console Desk Size (L*W*H): L805*900*1320 (mm)
Package Weight: 640KG+100KG (Console desk)
Power Consumption: 1 kVA
Noise: 53.8 dB(A)
