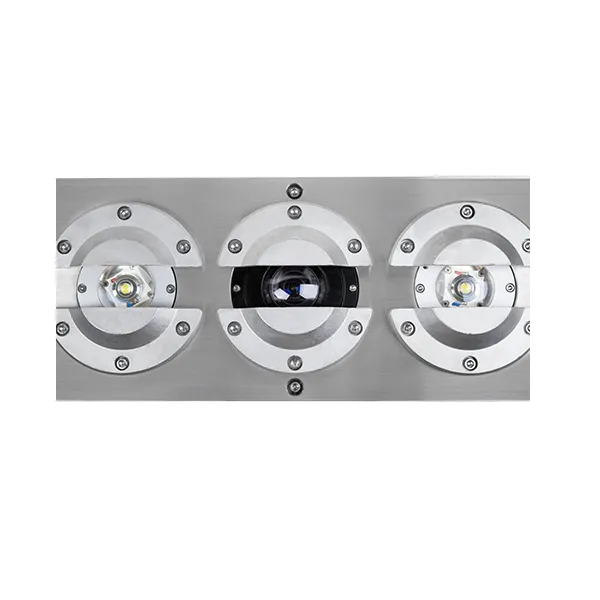

High-speed line-scanning camera
Image resolution : > 6000x2048 pixels
Vehicle speed : 1-60km/h(Recommended speed: ≤ 30km/h)
Weight capacity : 50T
2MP HD Surveillance camera
Storage: 1TB hard disk
Water-proof Grade: IP68
Introduction
For places where require high level security, such as military area, government building and custom, ZK-VSCN200 is an ideal device for checking undercarriage of vehicle. When the vehicle passes, system can quickly generate a high definition image of vehicle undercarriage, which will be recorded in the computer. It helps operator accurately identify forbidden objects attached to the underside of vehicles.
ZK-VSCN200 is a powerful tool to provide profession inspection in incoming and outgoing traffic with a few seconds. Because of specially-designed camera angle, all details of undercarriage are easy to be captured. And IP68 makes sure scanner is able to work well in extreme conditions. This under vehicle inspection system greatly improves the efficiency and accuracy of security check in order to achieve a
higher level of safety.
Features
•IP 68, all-weather performance
•High-speed line-scanning camera
•High-resolution color image
•Weight capacity of 50 tons
•Real-time surveillance
Optional
The system can be integrated with biometric
recognition systems, RFID Reader, parking barrier, tire
killer and many other entry control products.
Scanning camera: High-speed line-scanning camera
Vertical resolution of the image: >6000*2048 pixels
Speed of vehicle: 1-60km/h (Recommended speed: ≤30km/h)
Effective field of view (FOV): Less than 170°
Auxiliary light: 320W
Weight capacity: 50T
Water-proof grade: IP68
Scanner weight: 105KG
Scanner size: 1100mm*280mm*205mm
Package weight: 140KG+51KG (Distribution box) +90KG (Console desk)
Package size:
1300mm*450mm*480mm
700mm*400mm*1200mm (Distribution box)
800mm*750mm*1560mm (Console desk)
Storage: 1TB hard disk
Operating voltage: AC 220V/110V, 50-60HZ
Surveillance camera: 2MP HD camera
Supported Software: ZKBio SIS
Communication Interface: RJ45 (TCP/IP)
