High-speed line-scanning camera
Image resolution: 6000x2048 pixels
Vehicle speed : 1-60km/h(Recommended speed- ≤ 30km/h)
Weight capacity : 30T
Introduction

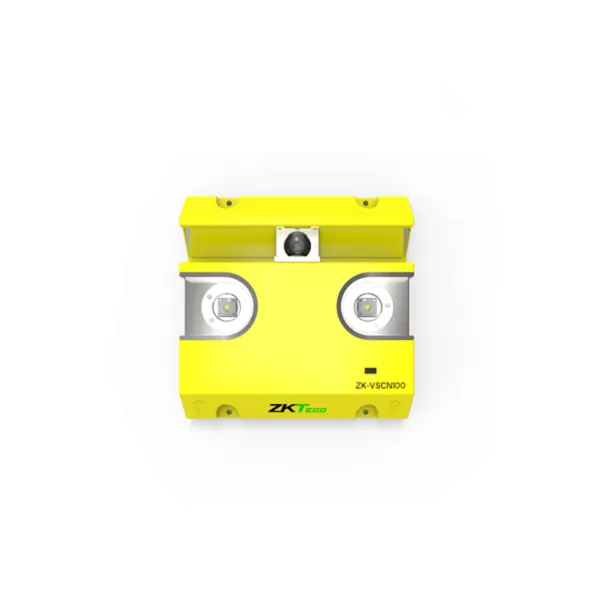

ZK-VSCN100 is a portable under vehicle inspection system. It has a great mobility in checkpoints need to be moved or installations where roads cannot be dug up. ZK-VSCN100 does not need civil construction and can be installed in 10 minute include wiring. In addition, it is convenient to move and deliver because all components are able to be stored in a cabinet with wheels.
When vehicle passes, system can quickly generate a high definition image of vehicle undercarriage, which will be recorded in the computer. It helps operator accurately identify forbidden objects attached to the underside of vehicles. This under vehicle inspection system greatly improves the efficiency and accuracy of security check in order to achieve a higher level of safety
Features
•Easy to install and maintain
•High-speed line-scanning camera
•High-resolution color image
•Flexible security check
•Weight capacity of 30 tons
•Real-time surveillance
Optional
The system can be integrated with biometric
recognition systems, RFID Reader, parking barrier, tire
killer and many other entry control products.
Specifications
Scanning Camera: High-speed line-scanning camera
Vertical Resolution of the Image: >6000*2048 pixels
Speed of Vehicle: 1-60km/h (Recommended speed: ≤30km/h)
Effective Field of View (FOV): Less than 170°
Auxiliary Light: 160W
Weight Capacity: 30T
Device Weight: 52KG
Device Size (L*W*H): 670*550*740 (mm)
Package Weight: 95KG
Package Size (L*W*H): 850*650*970 (mm)
Communication Iinterface: RJ45
Operating Temperature: -10°C to 60°C
Operating Voltage: AC 220V/110V, 50-60HZ
Surveillance Camera: 2MP HD camera
Storage: 1TB hard disk
Supported Software: ZKBio SIS
Communication Interface: RJ45 (TCP/IP)
