ZKTeco

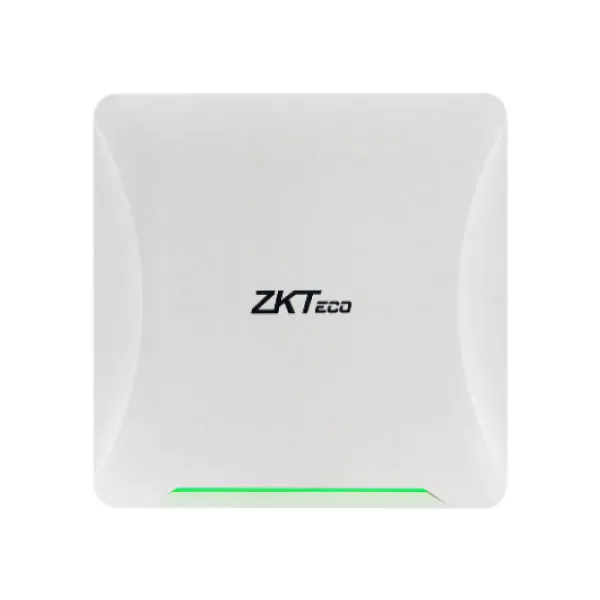

ZKTeco UHF5E Pro LONG DISTANCE WIEGAND RFID READER

Out Of Stock

Output Power: 19dBm - 30dBm

Protection Level: IP66

Working Voltage: DC 9-15V

Model: UHF5E Pro

Reading Distance: 2 to 8 meters (Hand held test) (Actual scenario test is around 4m)

Antenna Gain: 9dBi

Dimensions (mm): 308.5 * 308.5 * 67.5

Weight: 1.8kg

Power: 1.2 - 4.2W

Frequency

E: 865MHz - 868MHz

F: 902MHz - 906MHz (adjustable)

Communication Interface: Wiegand; RS485; USB configuration parameters (Wiegand, RS485 requires one of two options)

Interface Protocol: EPC global UHF Class 1 Gen 2 / ISO 18000-6C

Working Mode: Read Always (Default) and Read by Trigger

Output Power: 19dBm - 30dBm

Protection Level: IP66

Working Voltage: DC 9-15V

Working Temperature and Humidity: -20°C - 65°C; <85%

Storage Temperature and Humidity: -20°C - 80°C; <85%

RS485 Communication: Optional baud rate (9600, 19200, 38400, 57600, 115200); the default is 115200
