QR Sensor
Reader Supported
Face capacity: 6,000
Palm capacity: 3,000

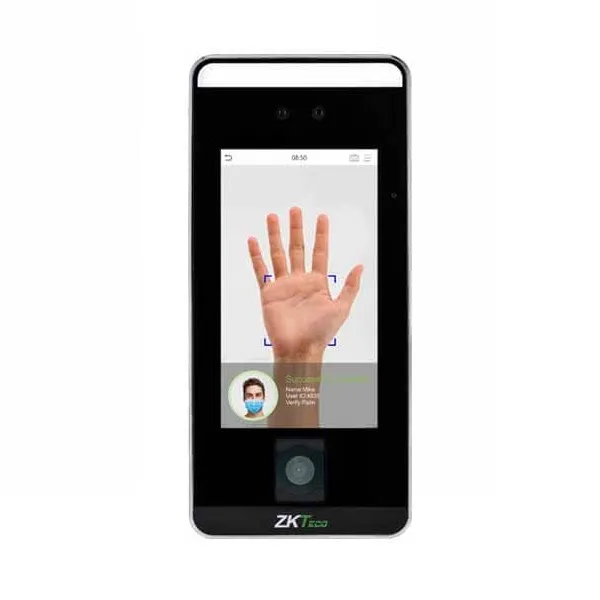

SpeedFace-V5L[QR] is an upgraded version of the SpeedFace-V5L Visible Light Facial Recognition Terminal, using intelligent engineering facial recognition algorithms and the latest computer vision technology. It supports a multi-factor identity authentication system by using QR Codes and acquired face / palm data for computational template matching. Besides, the terminal offers large capacity and speedy recognition. SpeedFace-V5L[QR] is powered by the QR Code Scanner that reads barcodes, such as QR codes, PDF417, Data Matrix, MicroPDF417, Aztec, presented on our ZKBioSecuity Mobile App for T&A / A&C. What's more? The terminal adopts touchless recognition technology and supplementary functions namely masked individual identification, which eliminates hygiene concerns effectively. It is also equipped with an antispoofing algorithm for facial recognition against almost all types of fake photos and videos attack. Importantly, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35s per hand; the palm data acquired will be compared with a maximum of 3,000 palm templates.
Features
•2D barcodes scanning: QR Code, PDF417, Data Matrix, MicroPDF417, Aztec
•Scramble QR codes with ZKBioSecurity Mobile App
•Visible Light Facial Recognition
•Better hygiene with touchless biometric authentication and masked individual identification
•Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
•Available card modules:12.5 KHz EM card / 13.56MHz IC card (MF)
•Supplement light with adjustable brightness
•Multiple Verification Methods: Face / Palm / QR Code / Card / Password
Display: 5-inch Touch Screen
Face Template: 6,000 (Optional:10,000)
Palm Template: 3,000
Card Template: 10,000
Transaction: 200,000
Operation System: Linux
Standard Function: ID Card, ADMS, T9 Input, DST, Camera, 14-digit User ID, Access Levels, Groups, Holidays,
Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods
Hardware: 900MHz Dual Core CPU, Memory 1G RAM / 8G Flash, 2MP WDR Low Light Camera,
Adjustable Light Brightness LED, Barcodes Scanning
Communication: TCP/IP, Wi-Fi (Optional), Wiegand Input/Output, RS485
QR Sensor: QR Code, PDF417, Data Matrix, MicroPDF417, Aztec
Access Control Interface: 3rd-Party Electric Lock, Door Sensor, Exit Button, Auxiliary Input, Auxiliary Output (Alarm)
Optional Function: 13.56MHz IC Card (MF)
Facial Recognition Speed: ≤1s
Biometrics Algorithm: ZKFace V5.8 & ZKPalm V12.0
Power Supply: DC 12V, 3A
Operating Humidity: 10% to 90%
Operating Temperature: -10°C to 45°C (14°F to 113°F)
Dimensions (W*H*D): 91.93 * 202.93 * 21.5 (mm)
Supported Software: PUSH Protocol: ZKBioAccess/ ZKBioTalk ;ZSmart
BEST Protocol: ZKBio Zlink
