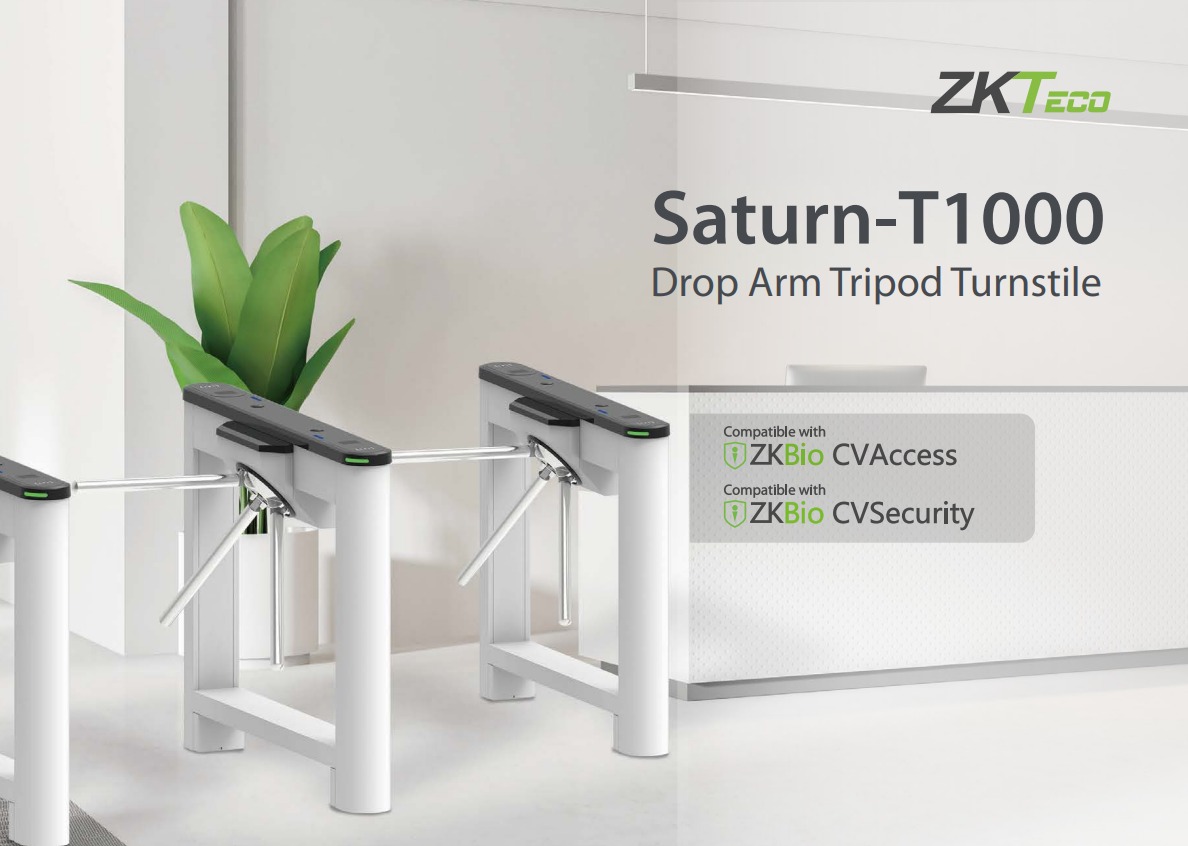

ZKTeco Saturn T1000 Tripod Turnstile
Tk
72000
Flow Rate : 25 passage/minute
Lane width(mm) 550
LED indicator
Entrance Control
Introduction
The Saturn-T1000 is a value-driven drop arm tripod turnstile designed for secure and efficient access control in public and commercial areas. Its cabinet is constructed from cold-rolled SPCC steel (GB700) with powder coating, paired with the SUS304 stainless steel tripod arm to maximize durability.
The pearl white turnstile features a 550mm lane width, supports throughput rate up to 25 persons per minute, and operates quietly at less than 65dB. In emergencies or power outages, the arm drops automatically for safe evacuation. Saturn-T1000 also features bi-directional operation and adjustable arm modes.
Multiple authentication options are available, including facial recognition, RFID and QR code (static and dynamic). The Saturn-T1000 seamlessly integrates with the ZKBio CVAccess and ZKBio CVSecurity for comprehensive security management.
Model Name: Saturn-T1000
Audio Indicator: Buzzer
Visual Indicator:
◦ LED Indicator
◦ Blue: Standby
◦ Green: Access Granted
◦ Red: Alarm / Error
Display: N/A
Lane Type: Single lane (Support bi-directional entry / exit lane)
Barrier Movement Type: Rotating (Tripod)
Lane Width: 550 mm
Motor: Not specified
Movement Speed: N/A
Movement Accuracy: N/A
Clutch: N/A
Lid Material: Polycarbonate + 2.5D tempered glass
Lid Options Authentication Methods: RFID / Facial Recognition / QR code (Dynamic / Static)
Chassis Material: Cold-rolled SPCC Steel (GB700) (with powder coating finishing)
Chassis Color: Pearl White (PWH)
Tripod Rod Material: SUS304 Stainless Steel
IR Sensors: N/A
Motherboard Function: System mode configuration. Access mode configuration
Motherboard Communication: Fire alarm Port (Relay)*1, RS485 port *1
Controller: Access controller Options: C3, InBio series or third-party controller subject to turnstile chassis space
Credential Options:
◦ Post mount Facial Recognition Device: G4 Pro
◦ Under mount QR code Reader: QR500
◦ Under mount RFID Reader: ProID10
Flow Rate:
◦ Face: 15 Passengers per minute
◦ RFID: 25 Passengers per minute
◦ QR code: 25 Passengers per minute
Accessibility: N/A
Power Supply: AC 110V~220V, 50/60Hz, DC 12V
Power Rating: Operating: 40W, Standby: 10W
Fire Signal: Input for voltage-free contact
Noise Level: < 65 dB
MTTR: N/A
Weight: 25 kg
Dimensions ( L*W*H ): 1200 * 734 * 1020 mm
Certifications: CE, FCC
Operating Temperature: -20°C to 70°C
Ingress Protection Rating: Self-laboratory test: equivalent to IPX4
Operating Humidity: 20% to 80% RH (Non-condensing)
Supported Software: ZKBio CVAccess / ZKBio CVSecurity (Compatible with software only when connected to the control panel)
Safety Features: Auto drop arm during power failure and re alarm emergency
Security Features: Anti-tailgating
Product Delivery: Pre-assembled
Application Environment: Indoor / Outdoor (If sheltered)
Site Preparation: Flat and level finished floor (optional base plate for unfinished floors)
Security: Level Middle
Emergency Mode: Drop arm function engages during power outage or fire alarm events
Packing Material: Carton box
Color: Black, Grey, Silver
