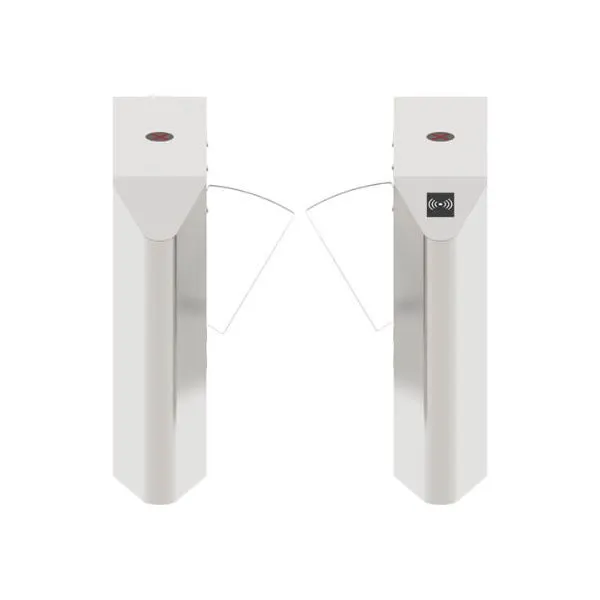

The FBL4000 Pro is a single lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL4000 Pro highly durable.
Reliability
• SUS304 stainless steel casework ensure long-lasting
durability.
• High quality electrical components.
Safety Features
• Barriers retract automatically during power outage with
capacitor board installed.
• All smooth finishing. No exposed screws.
• Ergonomic design makes card and fingerprint authentication fast & simple for users.
Built-in Reader Integration
• FBL4000 Pro series is already integrated with our
customers’ preference for either card or fingerprint
access control reader. This greatly reduces installation
time & expense.
• FBL4000 Pro series and associated access control
readers are all factory-tested prior to shipping.
•ZKTeco provides true plug&play turnstiles with the
lowest possible total cost of ownership in the industry.
Simplification
• LCD on the flap barrier control board, easy operation.
Power Requirements: AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working Temperature: -28°C ~ 60°C
Working Humidity: 5% ~ 80%
Working Environment: Indoor/outdoor (if sheltered)
Speed of Throughput:
RFID: Maximum 30/ minute
Fingerprint: Maximum 25/ minute
Lane Width (mm): 600
Footprint (mm*mm): 1350 * 1200
Dimensions (L*W*H): 1350*300*1010 (mm)
Dimension with Packing(L*W*H): 1500*840*1100 (mm)
Net Weight (kg): 116kg
Weight with Packing (kg): 169kg
LED Indicator: Supports
Cabinet Material: SUS304 Stainless Steel
Lid Material: SUS304 Stainless Steel
Barrier Material: Acrylic
Barrier Movement: Retracting
Emergency Mode: Supports
Security Level: Medium
MCBF: 2 million
