ZKTeco

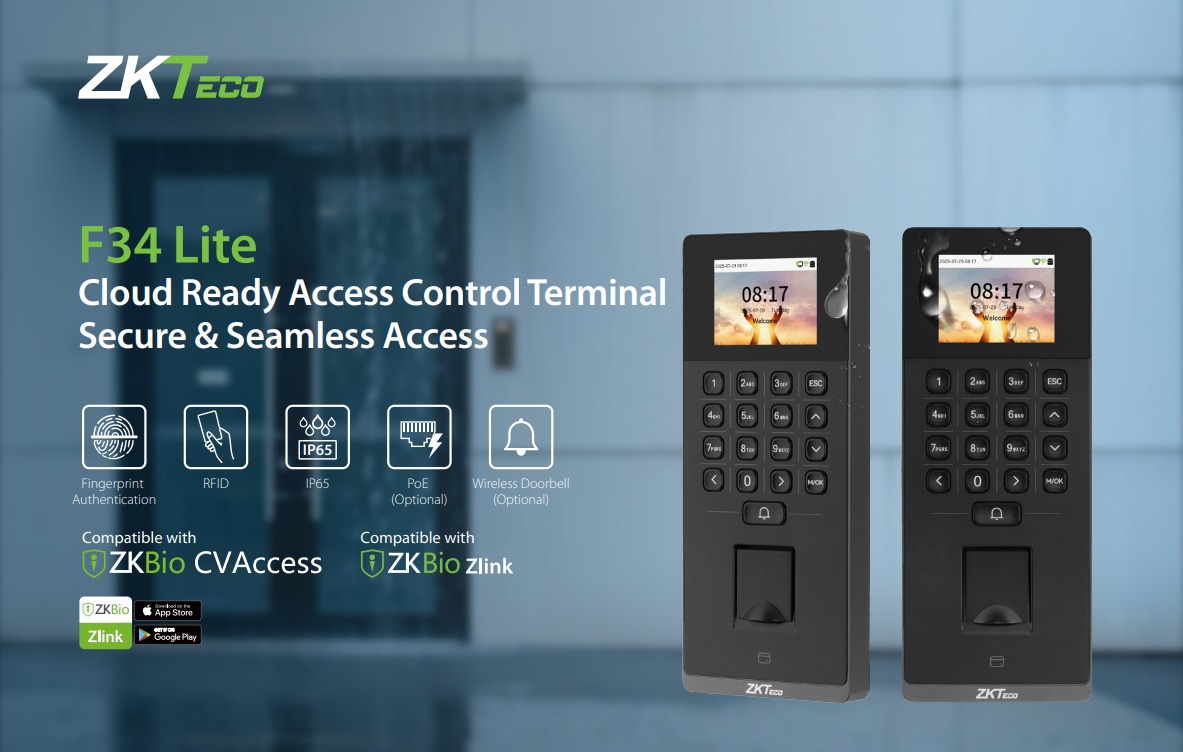

ZKTeco F34 Lite Fingerprint Standalone Access Control and Time Attendance
Tk
14500
Fingerprint Capacity: 3,000
Card Capacity: 3,000
User Capacity: 3,000
Transaction Capacity: 200,000
Access Control
• ZKTeco's F34 Lite is a cloud ready fingerprint access control terminal with 2.4" TFT color display. What sets it apart is its multiple authentication methods, including fingerprint, card, and passwords via physical keypad.
• Powered by ZKFingerprint V13.0 (V10.0 optional), it delivers fast and accurate fingerprint authentication in less than 0.5 second (FAR ≤ 0.0001% and FRR ≤ 0.01%). Its onboard capacity supports up to 3,000 users, cards, and fingerprint templates (1:N), plus 200,000 transaction and 6 to 8 digit passwords, which is ideal for small and medium enterprise growing needs.
• F34 Lite's connectivity is straightforward, it supports TCP/IP networking and Wi-Fi connection (optional). Its cloud ready with AC PUSH or TA PUSH, supports PoE (IEEE 802.3at), and features an IP65 enclosure for reliable outdoor use.
Model: F34 Lite
Display: 2.4"@ TFT Color LCD Screen (240 * 320)
Operation System: Linux
Hardware:
CPU: Dual [email protected]
RAM: 128MB; ROM: 256MB
Speaker: 8ohm±15% @1.0W
Physical Keypad: 17 Keys
Fingerprint Sensor: ZK Optical Sensor
Authentication Method: Fingerprint / Card / Password (Physical Keypad)
Fingerprint Template Capacity: 3,000 (1: N)
Card Capacity: 3,000 (1: N)
User Capacity: 3,000 (1: N)
Transaction Capacity: 200,000
User Password Length: 6 - 8 digits
Biometric Authentication Speed: less than 0.5 sec (Fingerprint)
False Acceptance Rate (FAR) %: FAR ≤ 0.0001% ( Fingerprint; ZKFingerprint V10.0; ZKFingerprint V13.0)
False Rejection Rate (FRR) %: FRR ≤ 0.01% ( Fingerprint; ZKFingerprint V10.0; ZKFingerprint V13.0)
Biometric Algorithm: ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Card Type:
ID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional)
Optional Multi-Tech Module:
Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency)
Communication:
TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs*1, Electric Lock *1, Door Sensor*1, Exit Button*1, Alarm*1, Doorbell*1,
12V Output*1
Standard Functions:
Webserver, ADMS, DST, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch (Effective only under T&A rules), Multiple Verification Methods, AC PUSH and TA PUSH Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input), SRB, Doorbell
Optional Functions: Wi-Fi (AP Mode), PoE, Wireless Doorbell
Access Control Interface: RS485 (RS485 Card Reader / Biometric Reader)
Operating Temperature: -10°C to 55°C
Power Supply:
DC 12V 1.5A
PoE: IEEE 802.3at (Optional)
Operating Humidity: 10% to 90% RH (Non-condensing)
Dimensions: 205.7mm * 82.7mm * 33mm (L * W * H)
Gross Weight: 0.76 Kg
Net Weight: 0.42 Kg
Supported Software:
On-Premise Software: ZKBio CVAccess (AC PUSH) / ZKBio Time (TA PUSH)
Cloud-based Software: ZKBio Zlink by default (Supports Web Portal & Mobile App)
Installation:
Wall-mount (Compatible with Asian Gang Box / Single Gang Box), compatible with Rots-3 Stand / Rots-02 Bracket
Ingress Protection Rating: IP65 (waterproof and dustproof )
Certifications: ISO14001, ISO9001, CE, FCC, RoHS
