Value-Top

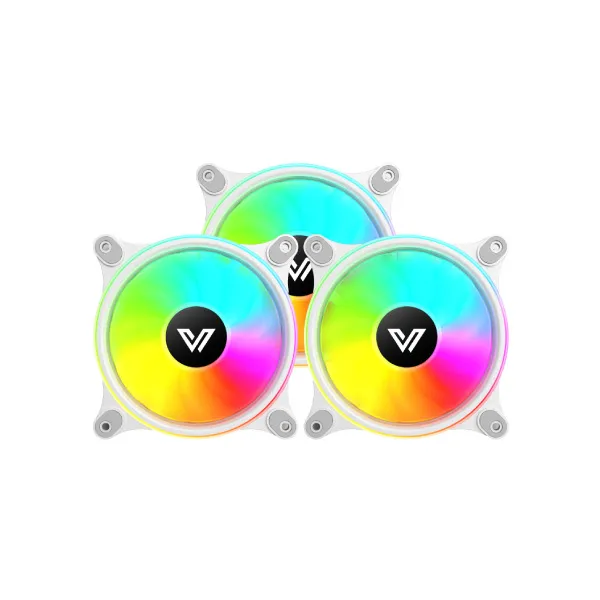

VALUE-TOP CR10-W1298ARGB WHITE COLOR 12CM 3PCS RING LIGHT ARGB FAN KIT
Out Of Stock
Model No: CR10-W1298ARGB
Dimension Of Fan: 120*120*25mm
Voltage: DC12V
Start Voltage: DC5V
Cooler Fan
• 3 Pcs ARGB Fan
• 10 Ports Control Board
• Aurora Cable
• Color Box Packing
Model No: CR10-W1298ARGB
Dimension Of Fan: 120*120*25mm
Voltage: DC12V
Start Voltage: DC5V
Power Consumption: 3W
Rated Current: 0.25±0.05A
Speed: 1200RPM±10%
Max. Airflow: 35CFM
Air Pressure: 1.2mmH2O
Noise: 16.32dBA~25dBA
Weight: 340g
Plastic material/Blade/Frame: Blade: PC | Frame: PBT
Bearing: One Sleeve, 3*7*9mm
Lead Wire: 1061-26AWG/4P; L:450mm
Connector: 4P (ph2.0)
LED: ARGB 12 LED
Insulation Resistance: 10MΩ/Measured Between unshackled wire and frame at 500VDC/Min
Dielectric Strength: 5Ma Max/Measured Between lead wire and frame at 500VAC/Min
Expect Life: 250C, 30000/H. 400C 25000/H .600C 10000/H
Rotating Direction: Anti-Clockwise
Locked Protect: Fan is protected when locked at rated Voltage for 72hrs.
Polarity Protect: Circuit is protected when VCC&GND Are exchanged
No. Of Pole: 4 Poles
Operating Temp. Range: Temperature:-10°C~+60°C | Humidity:35%~85%RH
