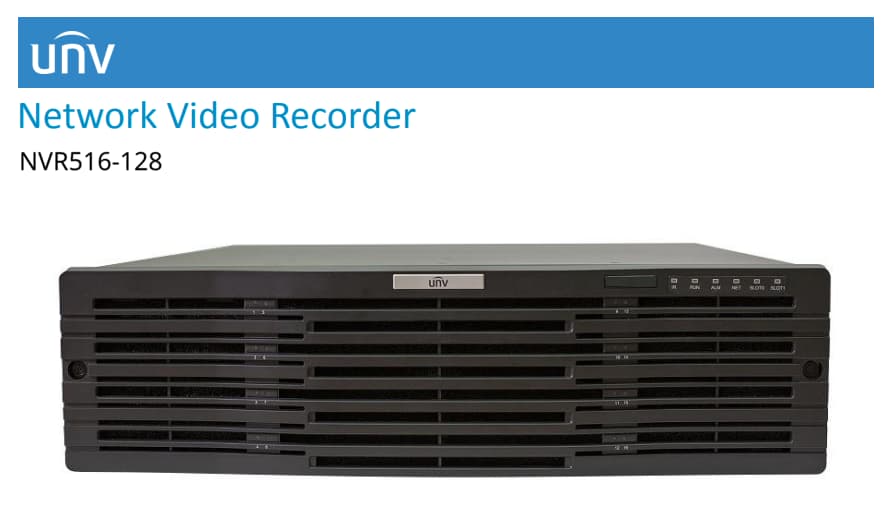

UNV NVR516-128 128-CHANNEL 16x10TB W/O PoE ENTERPRISE NETWORK VIDEO RECORDER WITH RAID CONTROLLER

Model: NVR516-128

Video/Audio Input
IP Video Input: 128-ch
Two-way Audio Input: 1-ch, BNC

Network
Incoming Bandwidth: 512Mbps
Outgoing Bandwidth: 384Mbps
Remote Users: 128
Protocols: P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output
HDMI/VGA Output:
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI1/HDMI2 (HDMI audio output is not supported):
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output: 1-ch, BNC
Synchronous Playback: 16-ch
Corridor Mode Screen: 3/4/5/7/9/10/12/16/32

Decoding
Decoding format: Ultra 265, H.265, H.264
Live view/Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability: 4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1

Hard Disk
SATA: 16 SATA interfaces
Capacity: Up to 16TB for each HDD
(The maximum HDD capacity varies with environment temperature)
eSATA: 1 eSATA interface
miniSAS: 2 miniSAS ports

Smart
VCA Detection by Camera:
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change
Detection, Object Left Behind, Object Removed, Auto Tracking, Temperature Detection(Fire Detection,
Smoking Detection, Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection(UMD), Video
Metadata, Traffic Monitoring
VCA Search: Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People
Counting Report
People Counting: People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection, Temperature Detection, UMD, Video Metadata, Traffic
Monitoring by Camera: Total 64-ch

Disk Array
Array Type: RAID 0/1/5/6/10/50/60

External Interface
Network Interface: 4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
2 1000M SFP Ethernet Interface
Serial Interface: 1 x RS232, 1 x RS485
USB Interface: Rear panel: 4 x USB3.0
Alarm In: 24-ch
Alarm Out: 8-ch
Decoding Card (optional): 2 slots (4-ch HDMI or 6-ch HDMI outputs per card)
Power Output: 12V

General
Power Supply:
100 ~ 240V AC
Power Consumption: ≤ 50 W (without HDD)
Working Environment: -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Chassis: 19-inch rack-mounted 3U chassis
Dimensions: 482mm ×477mm × 131mm (18.8"× 19.0" ×5.1")
Weight (without HDD): ≤ 10 Kg (22.05 lb)

Certification
Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part15 Subpart B, ANSI C63.4
