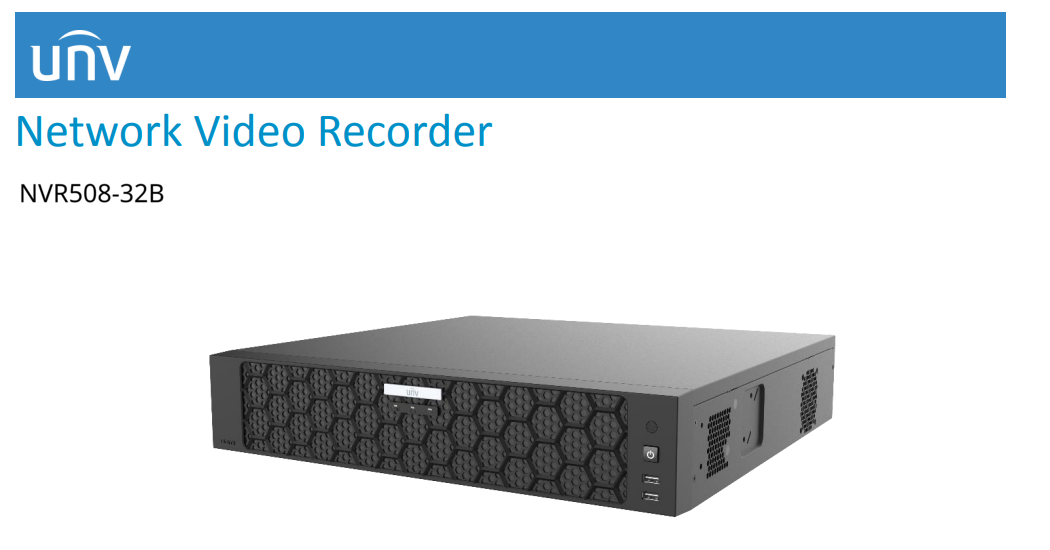

UNV NVR508-32B 64-CHANNEL 8xSATA NETWORK VIDEO RECORDER

Model: NVR508-32B

Video/Audio Input
IP Video Input: 32-ch
Audio Input: 1-ch, RCA

Network
Incoming bandwidth: 320Mbps
Outgoing bandwidth: 160Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Browser:
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows

Video/Audio Output
HDMI/VGA Output:
HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60,
1024x768@60
VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Recording Resolution: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output: 1-ch, RCA
Two-way Audio: 1-ch, RCA(Using the audio input and output)
Audio Compression: G.711A, G.711U
Synchronous Playback: 16-ch
Live View Display:
VGA: 1/4/6/8/9/16/25/36
HDMI: 1/4/6/8/9/16/25/36
Corridor Mode Screen: 3/4/5/7/9/10/12/16/32

Snapshot
FTP/Schedule/Event Snapshot: 4-ch snapshot, up to D1 resolution

Decoding
Decoding Format: Ultra 265/H.265/H.264
Live View/Playback: 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability:
Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30,
32 x 960P@25, 36 x 720P@30, 64 x D1
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30,
28 x 960P@25, 30 x 720P@30, 64 x D1

Hard Disk
SATA: 8 SATA interfaces
Capacity: Up to 12TB for each disk
Disk Group: Support

Smart
VCA Detection by Camera:
Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature
Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD
(Ultra Motion Detection), Video Metadata, Traffic Monitoring
VCA Search:
Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting: People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Temperature Detection, Video Metadata, Traffic
Monitoring by Camera: Total 8-ch

General Alarm
General Alarm: Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto
Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk
Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface
Network Interface: 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface: Front: 2 x USB2.0, Rear panel: 1 x USB3.0
RS232: NA
RS485: 1
Alarm In: 16-ch
Alarm Out: 4-ch

General
Power Supply: 100~240V AC, Power Consumption: ≤ 32W (without HDD)
Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H): 442mm × 426mm × 89mm (17.4" × 16.8" × 3.5")
Weight (without HDD): ≤ 4Kg (8.80lb)

Certification
Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC: Part15 Subpart B
