Uniview

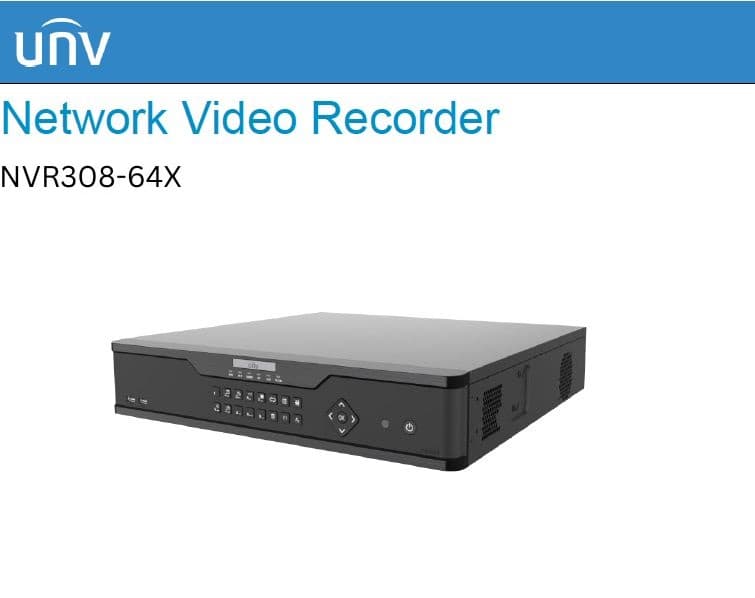

UNV NVR308-64X 64-CHANNEL 8x10TB SUPPORTED ENTERPRISE NETWORK VIDEO RECORDER
Out Of Stock
- Incoming BW : 384Mbps
- 2-ch HDMI, 1-ch VGA
- 8 SATA HDDs, Up to 10TB for each HDD
- H.265
NVR
• Support Ultra H.265/H.265/H.264 video formats
• 16/32/64-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
• HDMI1, HDMI2, VGA independent outputs provided
• Up to 12 Megapixels resolution recording
• Support RAID 0, 1, 5, 6, 10
• 8 SATA HDDs, Up to 10TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• Support N+1 Hot spare
• Support for 12V Power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Decoding
Decoding Format: Ultra 265, H.265, H.264
Decoding Capability: 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Audio Compression: G.711A, G.711U
Network
Incoming Bandwidth: 384Mbps
Outgoing Bandwidth: 384Mbps
Remote Users: 128
Protocols: TCP/IP; P2P; UPnP; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; IGMP; SNMP; SMTP; NFS; RTSP; 802.1x; IPv6; IPv4
Browser(Plugin): Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Video/Audio Input
IP Video Input: 64‑ch
RCA Audio Input: 1‑ch
Video/Audio Output
HDMI Output: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz (HDMI audio output is not supported)
VGA Output: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
RCA Audio Output: 1‑ch
Liveview Display:
VGA:1/4/6/8/9/16/25/36,
HDMI1/HDMI2:1/4/6/8/9/16/25/36/64
Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
Two-way Audio
Two-way Audio: 1‑ch, RCA (Using the audio input and output)
Snapshot
FTP/Schedule/Event Snapshot: 64‑ch snapshot, up to 4K resolution
Recording
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local: 16‑ch
Smart
VCA Detection by IPC: Face Detection; Face Comparison; Vehicle Detection; SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection (UMD); Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting (People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring
VCA Search: Face Snapshot Search; Face Comparison Search; Motor Vehicle Search; Non‑Motor Vehicle Search; Human Body Search; General Search; People Counting Report
Smart by IPC: All channels (up to 24 images/s in total)Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm
General Alarm: Defocus Detection; Scene Change Detection; Object Left Behind; Object Removed; Auto Tracking; Motion Detection; Tampering; Human Body Detection; Video Loss; Alarm Input; Audio Detection
Alert Alarm: IP Conflict; Network Disconnected; Disk Offline; Disk Abnormal; Illegal Access; Hard Disk Space Low; Hard Disk Full; Recording/Snapshot Abnormal
GUI Language
GUI Language: 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA: 8 SATA Interfaces
Capacity: Up to 12TB for each HDD (The maximum HDD capacity varies with environment temperature)
Disk Array Type: RAID 0, 1, 5, 6, 10
External Interface
Network Interface: 2 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB: Front panel: 2 x USB2.0; Rear panel: 1 x USB3.0
RS485: 1
RS232: 1
Alarm In: 16‑ch
Alarm Out: 4‑ch
eSATA: 1
Power Output: 12V
Power Supply: AC 100 ～ 240 V
Power Switch: Support
Working Environment
Working Temperature: ‑10 °C ~ 55 °C (14 °F ~ 131 °F)
Working Humidity: ≤ 90% RH (non‑condensing)
Power Consumption (without HDD): ≤ 25W
Dimensions
Weight (without HDD): ≤ 5.7Kg (12.57lb)
Dimensions: 442mm ×426mm× 89mm (17.4"×16.8"×3.5")
Certification
Certification: CE; FCC; UL; RoHS; WEEE
CE: EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC: Part15 Subpart B
