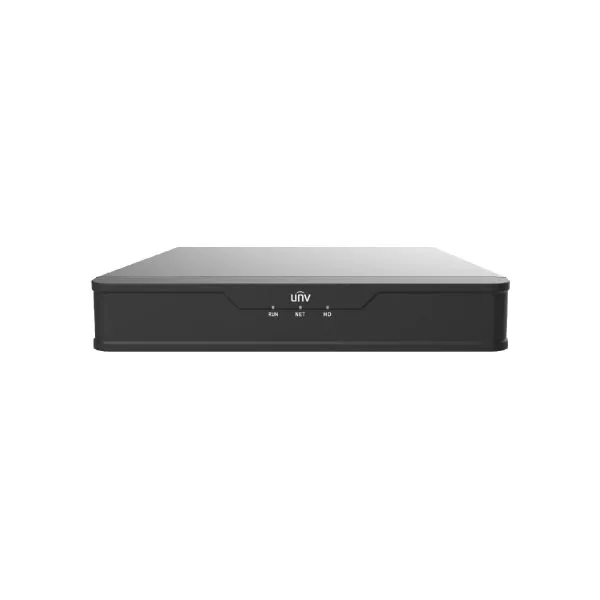

UNV NVR301-16S3 16-CHANNEL W/O PoE NETWORK VIDEO RECORDER

Model: NVR301-16S3

Video/Audio Input
IP Video Input: 16-ch

Network
Incoming Bandwidth: 64Mbps
Outgoing Bandwidth: 48Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP

Video/Audio Output
HDMI/VGA Output
HDMI: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output: 1-ch, 3.5mm
Audio Compression: G.711A, G.711U
Synchronous Playback: 16-ch
Liveview display: 1/4/6/8/9/16
Corridor Mode Screen: 3/4/5/7/9/10/12/16

Snapshot
FTP/Schedule/Event Snapshot: 1-ch snapshot, up to D1 resolution

Decoding
Decoding format: Ultra 265/H.265/H.264
Liveview/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability: 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25

Hard Disk
SATA: 1 SATA interface
Capacity: Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)

Smart
VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection
VCA Search: Behavior Search
Smart Intrusion Prevention (SIP) by Camera: 4-ch(supports channel 1-4; Alarm only, no image)

General Alarm
General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface
Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface: Rear panel: 2 x USB2.0
RS232: NA
RS485: NA
Alarm In: NA
Alarm Out: NA

General
Power Supply: 12V DC, Power Consumption: ≤5 W (without HDD)
Working Environment: -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H): 260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")
Weight (without HDD): ≤0.98kg (2.16 lb)

Certification
Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part15 Subpart B, ANSI C63.4
