Uniview

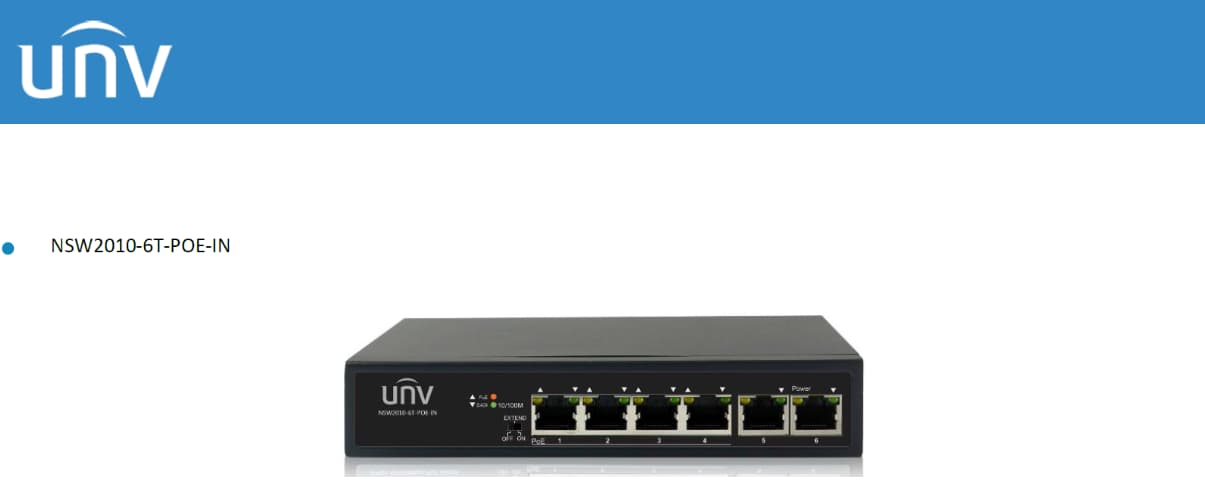

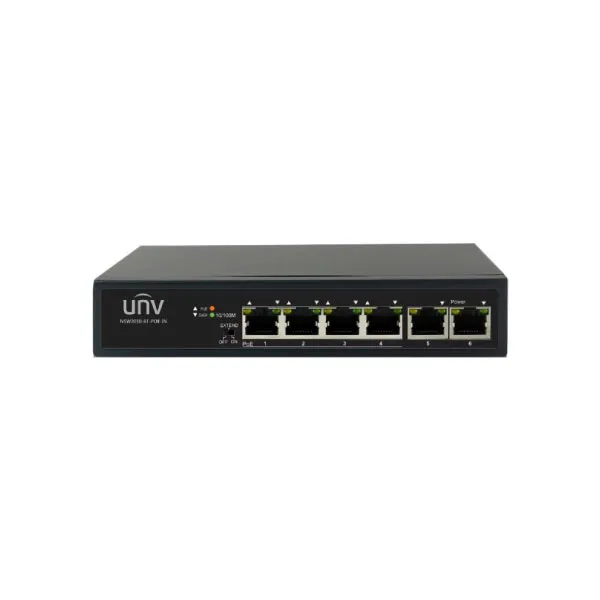

UNV NSW2010-6T-POE-IN 4-PORT 10/100 POE SWITCH WITH ETHERNET UPLINK PORT
Tk
3100
6×100Mbps network ports (RJ45),including 4 PoE ports
Switching capacity 1.2Gbps
MAC 2K
Max capacity: 65W, Max capacity for single port: 30W
Switch
Key Features
• Multiple working modes to address your business needs: Normal, Secure and Surveillance.
• Support port traffic control.
• Support for secure mode, all downlink ports can communicate only with uplink ports.
• Up to 250m transmission distance on surveillance mode.
• Support buffer optimization.
• All metal housing, safe and reliable.
Model: NSW2010-6T-POE-IN
Ports: 6×100Mbps network ports (RJ45), including 4 PoE ports
Standards: IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at
Switching capacity: 1.2Gbps
Forwarding performance: 0.90Mpps
Packet Buffer: 768Kbit
MAC: 2K
Dimensions (W×D×H): 160mm x 93mm x 32mm (6.3"×3.7"×1.3")
Weight: <0.6kg
Power supply: AC: 100-240V, 50/60Hz
PoE: 802.3at/af
Max. PoE Power: Max capacity: 65W, Max capacity for single port: 30W
Cooling Fans: 0
Mean Time Between Failure (MTBF): >50000 hours
Ambient temperature: 0°C-45°C (32°F-113°F)
Operating humidity: 10%～90% (noncondensing)
Storage humidity: 5%～90% (noncondensing)
Indicator
PWR:
Steady on: AC input is normal
Off: No AC input
PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal
LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data
Speed:
Off: Linked at 10/100Mbps
On: Linked at 1000Mbps
Working Mode:
Default(Normal mode) : All ports can communicate with each other.
EXTEND(Surveillance mode): Transmission distance up to 250 meters.
