Uniview

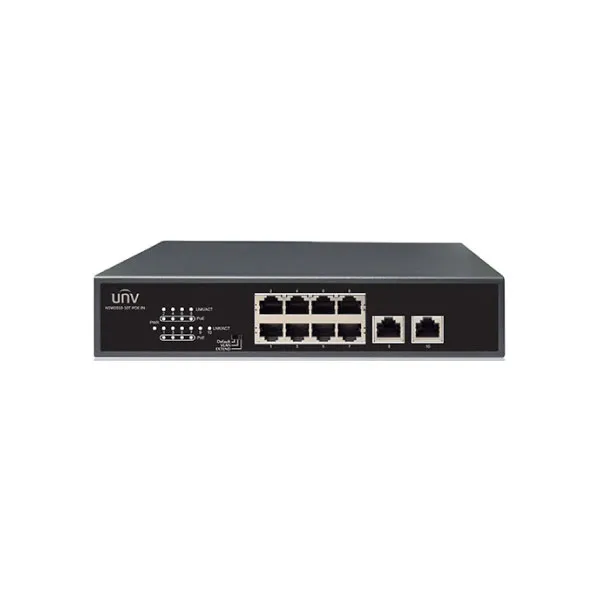

UNV NSW2010-10T-POE-IN 8-PORT 10/100 POE SWITCH WITH ETHERNET UPLINK PORT
Tk
4500
Ports Type: 10×100Mbps network ports (RJ45), including 8 PoE ports
Forwarding performance: 1.49Mpps
Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity: 2 Gbps
Switch
Key Features
• Multiple working modes to address your business needs:Normal, Secure and Surveillance
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
Ports Type: 10×100Mbps network ports (RJ45), including 8 PoE ports
Forwarding performance: 1.49Mpps
Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity: 2 Gbps
Packet Buffer: 1.625 M bit
MAC: 4K
Power supply: AC: 100-240 V, 50/60 Hz
Max. PoE Power:
Max capacity: 120 W,
Max capacity for single port: 30 W
Cooling Fans: 0
Mean Time Between Failure (MTBF): >50000 hours
Weight: <1.22 kg
Operating humidity: 10%～90% (non-condensing)
Storage humidity: 5%～90% (non-condensing)
Operating temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Storage Temperature: -40 ℃ to 70 ℃
Dimensions (W×D×H): 220mm x 150mm x 44mm(8.7"×5.9"×1.7")
Working Mode: Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Indicator: POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, Speed Off: Linked at 10/100 Mbps, Speed On: Linked at 1000 Mbps
