Uniview

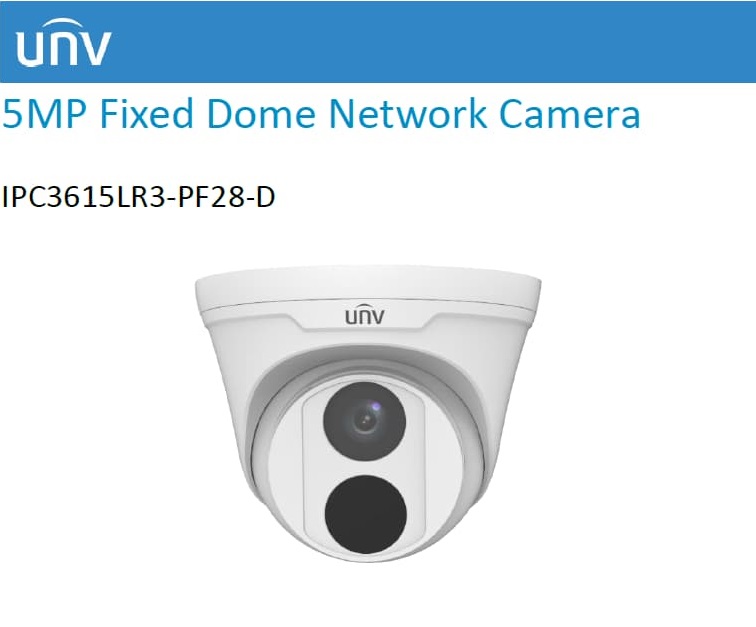

UNV IPC3615LR3-PF28-D 5MP FIXED DOME NETWORK CAMERA

6800

Metal+Plastic Housing
Smart IR , up to 30m IR distance
H.265/H.264/MJPEG
1 YEAR WARRANTY

IP Camera

Description
Specification

• Day/night functionality

• Smart IR, up to 30m (98ft) IR distance

• 3D DNR (Digital Noise Reduction)

• Ultra 265, H.265, H.264, MJPEG

• ROI (Region of Interest)

• ONVIF Conformance

• Support PoE power supply

• Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)

• Wide voltage range of ±25%

• IP67

• 3-Axis

Camera

Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS

Lens: [email protected]

DORI Distance

Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
2.8	42	16.8	8.4	4.2
4.0	60	24	12	6

Angle of view (H): 105.3°

Angle of View (V): 69.5°

Angle of View (O): 136.9°

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°

Min. Illumination:

Colour: 0.01Lux (F2.0, AGC ON)

0Lux with IR

IR Range: Up to 30m (98ft) IR range

Day/Night: IR-cut filter with auto switch (ICR)

Noise Reduction: 2D/3D

S/N: >52dB

WDR: DWDR

Video

Max. Resolution: 2592*1944

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main Profile

Frame Rate:

Main Stream: 5MP (2592*1944), Max 20fps;

Sub Stream:720P (1280*720), Max 20fps

HLC: Supported

BLC: Supported

OSD: Up to 4 OSDs

Privacy Mask: Up to 8 areas

ROI: Up to 2 areas

Motion Detection: Up to 4 areas

Smart

Behavior Detection: Intrusion, Motion detection,Tampering alarm

Intrusion: Enter and loiter in a pre-defined virtual region

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS

Compatible Integration: ONVIF (Profile S, Profile T), API

Interface

Network: 10/100M Base-TX Ethernet

General

Power:

DC 12V±25%,PoE (IEEE 802.3af)

Power consumption: Max 4W

Dimensions (Ø x H): Φ118 x 96mm (Φ4.6” x 3.8”)

Weight: 0.35kg (0.77lb)

Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Ingress Protection: IP67
