Uniview

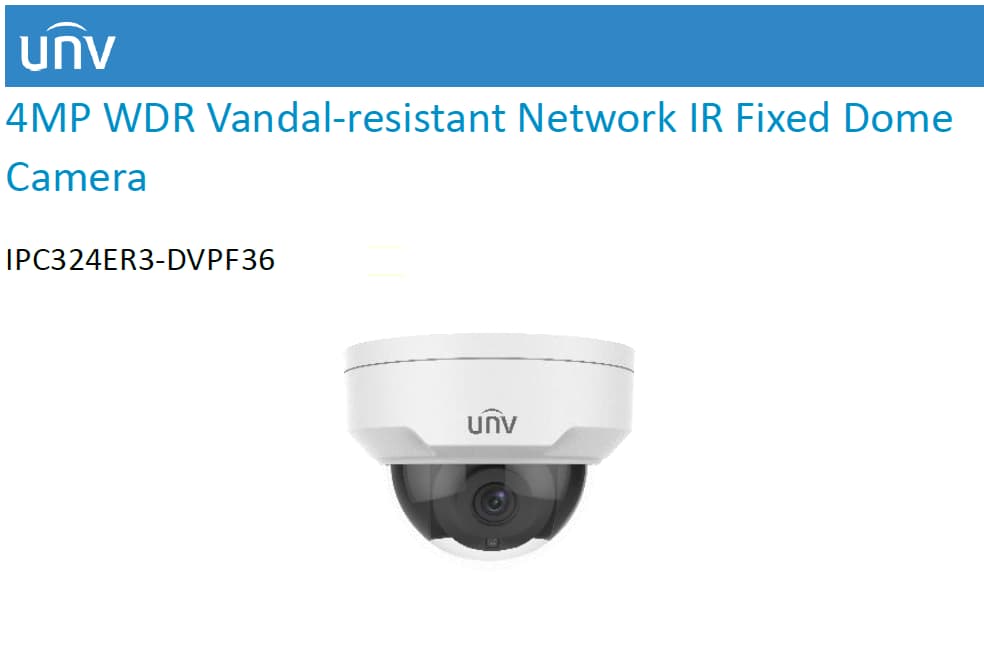

UNV IPC324ER3-DVPF36 4.0MP / 3.6mm IR FIXED DOME IP CAMERA

9000

Metal Housing
4 MP
3.6mm Lens
Smart IR , up to 30m IR distance

IP Camera

Quantity:

Description
Specification

Optics

• Day/night functionality

• Smart IR, up to 30m (98ft) IR distance

• Up to 120 dB WDR (Wide Dynamic Range)

• 2D/3D DNR (Digital Noise Reduction)

Compression

• Ultra 265, H.265, H.264, MJPEG

• Embedded smart algorithm

• ROI (Region of Interest)

• Customized OSD

Network

• ONVIF Conformance

Structure

• Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)

• Wide input voltage range of ±25%

• IK10 vandal resistant

• IP67

• 3-Axis

Camera

Sensor: 1/3", 4.0 megapixel, progressive scan, CMOS

Lens: [email protected]
DORI Distance:

Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
2.8	63	25.2	12.6	6.3
3.6	81	32.4	16.2	8.1

Angle of View (H): 86.4°

Angle of View (V): 53.2°

Angle of View (O): 112.3°

Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°

Shutter: Auto/Manual, 1 ~ 1/100000s

Minimum Illumination:

Colour: 0.03Lux (F2.0, AGC ON)

0Lux with IR

Day/Night: IR-cut filter with auto switch (ICR)

S/N: >55dB

IR Range: Up to 30m (98ft) IR range

wavelength: 850nm

IR On/Off Control: Auto/Manual

Defog: Digital Defog

WDR: 120dB

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main Profile, High Profile

Frame Rate:

Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps

Video Bit Rate: 128 Kbps~16 Mbps

9:16 Corridor Mode: Supported

OSD: Up to 8 OSDs

Privacy Mask: Up to 8 areas

ROI: Up to 8 areas

Motion Detection: Up to 4 areas


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping: Support

HLC: Support

BLC: Support

Smart

Behavior Detection: Intrusion, cross line, motion detection

Intrusion: Enter and loiter in a pre-defined virtual region

cross line: Cross a pre-defined virtual line

motion detection: Moving within a pre-defined virtual region

Recognition: Face detection, Audio detection

Intelligent Identification: Defocus, Scene Change, Object Left, Object Moving

Statistical Analysis: People counting

General Function: Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression: G.711

Two-way audio: Supported

Suppression: Supported

Sampling Rate: 8KHZ

Storage

Edge Storage: Micro SD, up to 256GB

Network Storage: ANR, NAS(NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API

Client:

EZStation

EZView

EZLive

Web Browser:

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Audio I/O:

Input: impedance 35kΩ; amplitude 2V [p-p]

Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/OL: 1/1

Network: 1 RJ45 10M/100M Base-TX Ethernet

Certifications

Certifications:

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power:

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5W

Dimensions (Ø x H): Φ108.5 x 81mm (Ø4.28” x 3.2”)

Net Weight: 0.45kg (0.99lb)

Material: Metal + Plastic

Working Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Storage Environment: -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

surge protection: 2KV

Ingress Protection: IP67

Vandal Resistant: IK10
