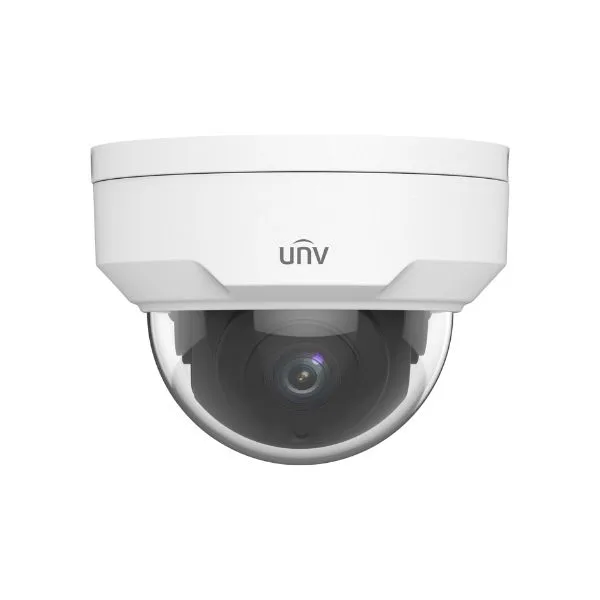

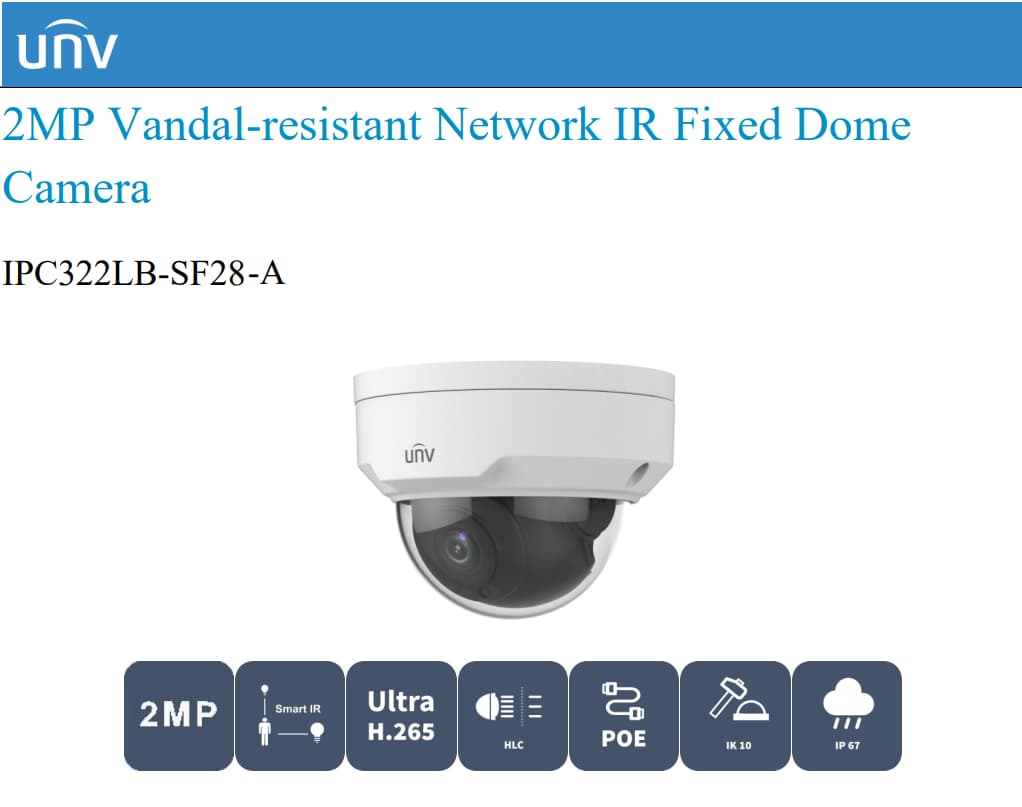

UNV IPC322LB-SF28-A 2.0MP/ 2.8mm IR FIXED DOME IP CAMERA

Uniview

UNV IPC322LB-SF28-A 2.0MP/ 2.8mm IR FIXED DOME IP CAMERA

Out of Stock

Metal + Plastic Housing
Smart IR, up to 30m (98ft) IR distance
2.8mm Lens
IP67

IP Camera

Quantity:

Description
Specification

• High quality image with 2MP, 1/2.8"CMOS sensor

• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

• Ultra 265, H.265, H.264

• Smart IR, up to 30m (98ft) IR distance

• Day/night functionality

• 2D/3D DNR (Digital Noise Reduction)

• IP67 protection

• IK10 vandal resistant

• Support PoE power supply

• 2-Axis

Camera
Max Resolution: 2 MP
Sensor: 1/2.8" CMOS
Min. Illumination:
Colour: 0.01 lux (F2.0, AGC ON)
0 lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 75°
S/N: >52 dB
WDR: DWDR
Lens
Focal Length: 2.8 mm
Iris Type: Fixed
Iris: F2.0
Field of View (H): 101.1°
Field of View (V): 56.5°
Field of View (D): 117°
DORI
DORI Distance (Lens): 2.8mm
DORI Distance (Detect): 45.0m(147.6ft)
DORI Distance (Observe): 18.0m(59.1ft)
DORI Distance (Recognize): 9.0m(29.5ft)
DORI Distance (Identify): 4.5m(14.8ft)
Illuminator
Supplemental Light: IR
Illumination Distance (IR): 30 m (98.4 ft)
Wavelength: 850 nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate:
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate: 128 Kbps to 6144 Kbps
U-code: Support (Main stream)
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Support
Video Stream: Dual Streams
White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal, Flip Vertical, Flip Horizontal, 180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog
Events
Basic Detection: Motion Detection
General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration:
ONVIF (Profile S, Profile T) ,
API, SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client:
EZStation,
EZView,
EZLive
Web Browser: Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: N/A
Built-in Speaker: N/A
WIFI: N/A
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output: N/A
Certification
EMC:
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety:
CE LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection:
IP67 (IEC 60529)
IK10 (IEC 62262)
General
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption: Max 5.0W
Power Interface: Ø5.5 mm coaxial power plug
Dimensions: Ø109 x 81mm (Ø4.3” x 3.2”) (Ø x H)
Weight: 0.35kg (0.77lb)
Material: Metal + Plastic
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection: 4 KV
Reset Button: N/A
Web Client Language: 1 Language: English
