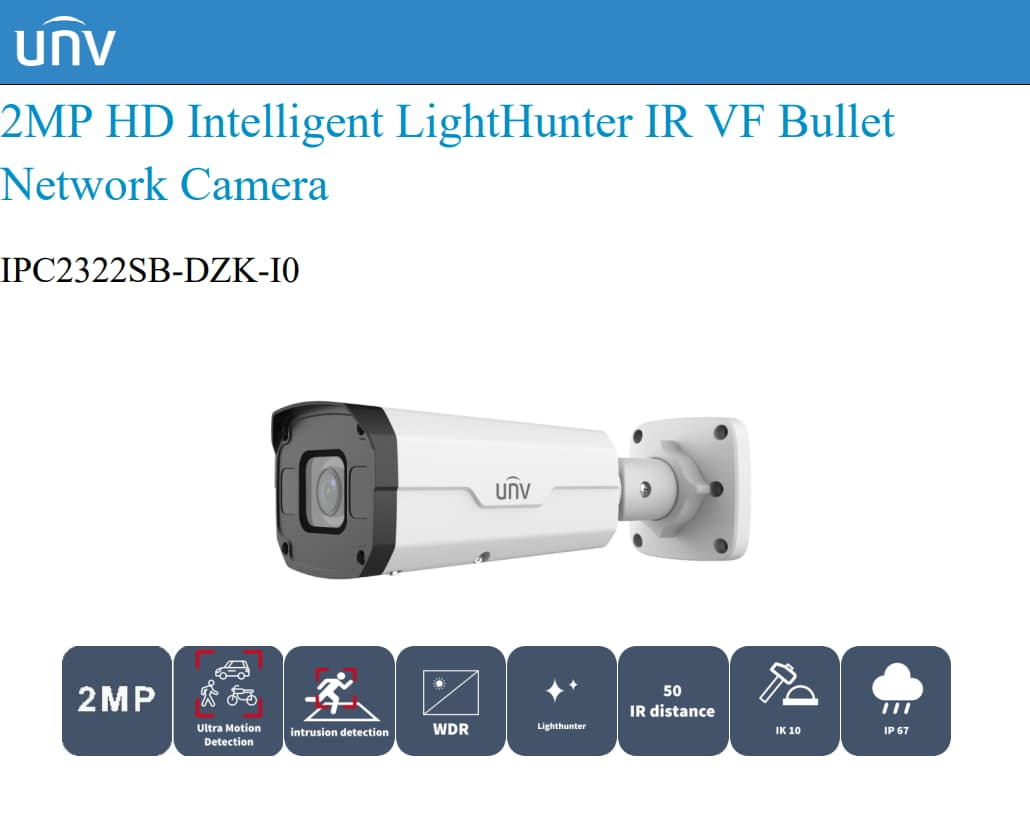

UNV IPC2322SB-DZK-10 2.0MP / 2.7-13.5mm HD LIGHTHUNTER VERI FOCAL IR BULLET IP CAMERA

Uniview

UNV IPC2322SB-DZK-10 2.0MP / 2.7-13.5mm HD LIGHTHUNTER VERI FOCAL IR BULLET IP CAMERA

Out Of Stock

Metal Housing
Smart IR, Up to 50m (164ft) IR range
2.7 ~ 13.5mm motorized zoom lens
IP67

IP Camera

Description
Specification

• High quality image with 2MP, 1/2.8"CMOS sensor

• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

• Ultra 265, H.265, H.264, MJPEG

• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection

• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle

• Intelligent People Flow Counting and Crowd Density Monitoring

• LightHunter technology ensures ultra-high image quality in low illumination environment

• 120dB true WDR technology enables clear image in strong light scene

• Support 9:16 Corridor Mode

• Alarm:1 in/1 out, Audio: 1 in/1 out

• Smart IR, up to 50m (164ft) IR distance

• Supports 512 G Micro SD card

• IK10 vandal resistant

• IP67 protection

Camera

Max Resolution: 2 MP

Sensor: 1/2.8" CMOS

Min. Illumination:

Colour:0.001 lux (F1.2, AGC ON)

0 lux with IR

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotate: 0° ~ 355°

S/N: >52 dB

WDR: 120 dB

Lens

Focal Length: 2.7 to 13.5 mm

Iris Type: Fixed

Iris: F1.2

Field of View (H): 107.4°~ 29.2°

Field of View (V): 54.2°~ 16.3°

Field of View (D): 111.0°~33.1°

Lens Type: Motorized

DORI

DORI Distance (Lens): 2.7mm, 13.5mm

DORI Distance (Detect): 41.9m(142.39ft)，209.5m(142.39ft)

DORI Distance (Observe): 16.8m(57.09ft)，83.8m(57.09ft)

DORI Distance (Recognize): 8.4m(28.54ft)，41.9m(28.54ft)

DORI Distance (Identify): 4.2m(14.11ft)，20.9m(14.11ft)

Illuminator

Supplemental Light: IR

Illumination Distance (IR): 50 m (164.0 ft)

IR On/Off Control: Auto/Manual

Wavelength: 850 nm

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate:

Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate: 128 Kbps to 16 Mbps

U-code: Support

OSD: Up to 8 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Triple Streams


Smart IR: Support

White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction: 2D/3D DNR

Flip: Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital Defog

Intelligent

Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

People Counting: Support People Flow Counting and Crowd Density Monitoring

Statistical Analysis: N/A

Events

Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection

General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: Support

Suppression: Support

Sampling Rate: 8 kHz

Storage

Edge Storage: Micro SD, up to 512 GB

Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH

Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M),

API, SDK

User/Host: Up to 32 users. 3 user levels: administrator, common user and operator

Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]

Alarm I/O: 1/1

Serial Port: N/A

Built-in Mic: N/A

Built-in Speaker: N/A

WIFI: N/A

Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Video Output: N/A

Certification

EMC:

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety:

CE LVD (EN 62368-1)

CB (IEC 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection:

IP67 (IEC 60529)

IK10 (IEC 62262)

General

Power: DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption: Max 8.5W

Power Interface: Ø5.5 mm coaxial power plug

Dimensions: 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) (L x W x H)

Weight: 0.92kg (2.03lb)

Material: Metal

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

Surge Protection: 6 KV

Reset Button: N/A

Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
